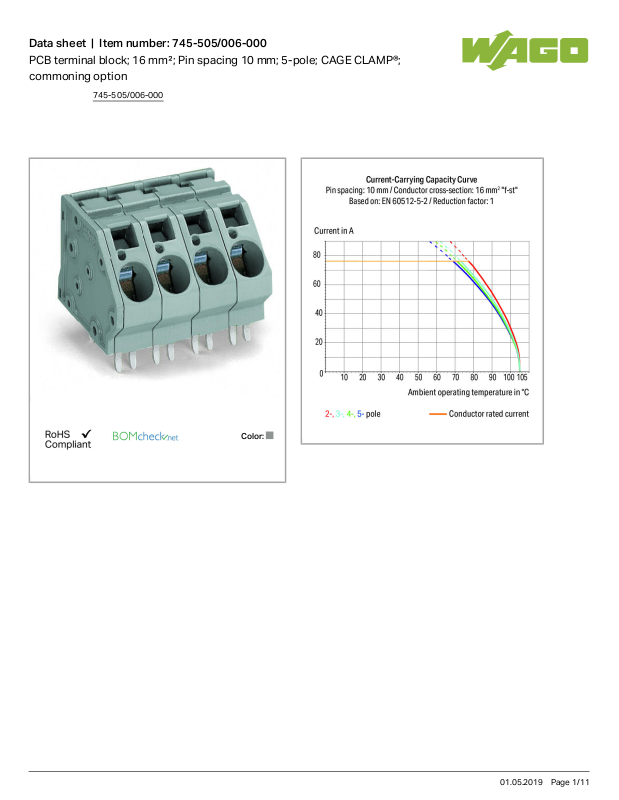

Wago 745-505/006-000 Data Sheet

Data sheet | Item number:745-505/006-000

PCB terminal block; 16 mm²; Pin spacing 10 mm; 5-pole; CAGE CLAMP®;
commoning option

Color:

745-505/006-000

01.05.2019Page /1 11

Data sheet | Item number:745-505/006-000

L = (pole no. − 1) x pin spacing + 10mm

L = L + 1.7mm ≙ version mounting flanges

1

without

Item description

PCB terminal strips with screwdriver-actuated CAGE CLAMP

®

Versions with Ex approval

Unrestricted UL approval up to 600 V with 20 mm pin spacing

Common and distribute potentials via comb-style jumper bars

Four solder pins for high mechanical stability

Integrated testing tap

Marker slot for Mini-WSB markers

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 320 V

Rated impulse voltage (III / 3) 4 kV

Rated voltage (III / 2) 320 V

Rated impulse voltage (III / 2) 4 kV

Rated voltage (II / 2) 630 V

Rated impulse voltage (II / 2) 4 kV

Rated current 76 A

745-505/006-000

01.05.2019Page /2 11

Data sheet | Item number:745-505/006-000

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 10 A

Rated voltage UL (Use Group D) 300 V

Rated current UL (Use Group D) 10 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V

Rated current CSA (Use Group B) 10 A

Rated voltage CSA (Use Group D) 300 V

Rated current CSA (Use Group D) 10 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Solid conductor 0.2 … 16mm²/ 24 … 6AWG

Fine-stranded conductor 0.2 … 16mm²/ 24 … 6AWG

Fine-stranded conductor with ferrule with plastic collar 0.25 … 10mm²

Fine-stranded conductor with ferrule without plastic collar 0.25 … 10mm²

Strip length 12 … 13mm/ 0.47 … 0.51inch

Conductor entry angle to the PCB 45 °

No. of poles 5

Total number of connection points 5

Total number of potentials 5

Number of connection types 1

Number of levels 1

Number of jumper slots 1

Geometrical Data

Pin spacing 10mm/ 0.394inch

Width 51.7mm/ 2.035inch

Height 33.5mm/ 1.319inch

Height from the surface 27mm/ 1.063inch

Depth 33.4mm/ 1.315inch

Solder pin length 6.5mm

Solder pin dimensions 1.2 x 1.6mm

Drilled hole diameter (tolerance)

2.2 mm

(- … +0.1)

745-505/006-000

01.05.2019Page /3 11

Data sheet | Item number:745-505/006-000

PCB contact

PCB contact THT

Solder pin arrangement over the entire terminal strip, in line

Number of solder pins per potential 4

Material Data

Color gray

Material group I

Insulating material Polyamide 66 (PA 66)

Flammability class per UL94 V0

Clamping spring material Chrome nickel spring steel (CrNi)

Contact material Electrolytic copper (E )

Cu

Contact plating tin-plated

Fire load 0.675 MJ

Weight 46.175 g

Environmental Requirements

Limit temperature range -60 … +105°C

Commercial data

Product Group 4 (Printed Circuit)

Country of origin PL

GTIN 4044918302890

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7094

CCA

DEKRA Certification B.V.

EN 60947 2160584.14

CSA

DEKRA Certification B.V.

C22.2 No. 158 1604421
