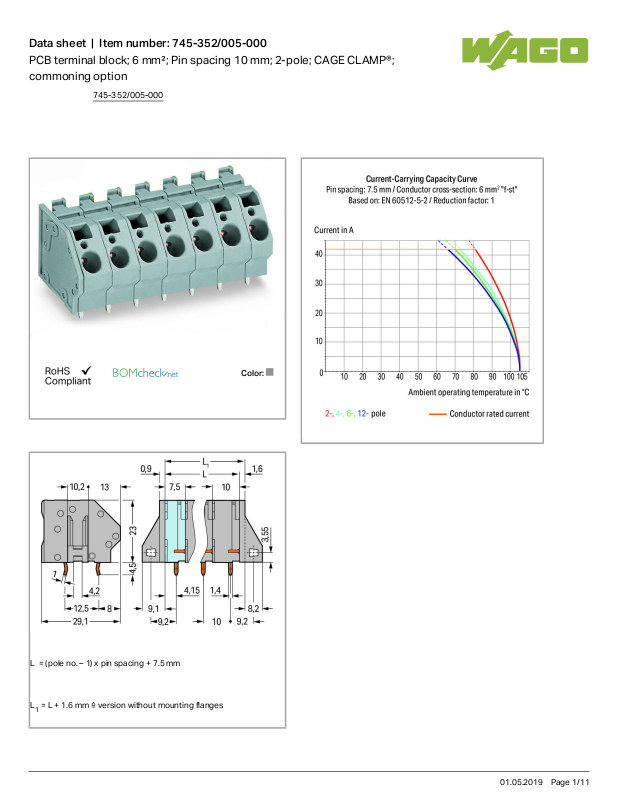

Wago 745-352/005-000 Data Sheet

Data sheet | Item number:745-352/005-000

PCB terminal block; 6 mm²; Pin spacing 10 mm; 2-pole; CAGE CLAMP®;
commoning option

L = (pole no. – 1) x pin spacing + 7.5mm

L = L + 1.6mm ≙ version mounting flanges

1

without

Color:

745-352/005-000

01.05.2019Page /1 11

Data sheet | Item number:745-352/005-000

Item description

PCB terminal strips with screwdriver-actuated CAGE CLAMP

®

Versions with Ex approval

Common and distribute potentials via comb-style jumper bars

Double solder pins for high mechanical stability

Custom color combinations

Integrated testing tap

Marker slot for Mini-WSB markers

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V

Rated impulse voltage (III / 3) 8 kV

Rated voltage (III / 2) 630 V

Rated impulse voltage (III / 2) 8 kV

Rated voltage (II / 2) 1000 V

Rated impulse voltage (II / 2) 8 kV

Rated current 32 A

Approvals per UL 1059

Rated voltage UL (Use Group B) 300 V

Rated current UL (Use Group B) 30 A

Rated voltage UL (Use Group C) 150V

Rated current UL (Use Group C) 30 A

Rated voltage UL (Use Group D) 300 V

Rated current UL (Use Group D) 10 A

Approvals per CSA

Rated voltage CSA (Use Group B) 300 V

Rated current CSA (Use Group B) 30 A

Rated voltage CSA (Use Group C) 150V

Rated current CSA (Use Group C) 30 A

Rated voltage CSA (Use Group D) 300 V

Rated current CSA (Use Group D) 10 A

745-352/005-000

01.05.2019Page /2 11

Data sheet | Item number:745-352/005-000

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor with ferrule with plastic collar 0.25 … 4mm²

Fine-stranded conductor with ferrule without plastic collar 0.25 … 4mm²

Strip length 11 … 12mm/ 0.43 … 0.47inch

Conductor entry angle to the PCB 45 °

No. of poles 2

Total number of connection points 2

Total number of potentials 2

Number of connection types 1

Number of levels 1

Number of jumper slots 1

Geometrical Data

Pin spacing 10mm/ 0.394inch

Width 36.4mm/ 1.433inch

Height 27.5mm/ 1.083inch

Height from the surface 23mm/ 0.906inch

Depth 29.1mm/ 1.146inch

Solder pin length 4.5mm

Solder pin dimensions 1 x 1.4mm

Drilled hole diameter (tolerance)

1.8 mm

(- … +0.1)

Mechanical data

Mounting type Mounting flange

Type of mounting Panel mounting

PCB contact

PCB contact THT

Solder pin arrangement over the entire terminal strip, in line

Number of solder pins per potential 2

Material Data

Color gray

Material group I

745-352/005-000

01.05.2019Page /3 11

Data sheet | Item number:745-352/005-000

Insulating material Polyamide 66 (PA 66)

Flammability class per UL94 V0

Clamping spring material Chrome nickel spring steel (CrNi)

Contact material Electrolytic copper (E )

Cu

Contact plating tin-plated

Fire load 0.249 MJ

Weight 12.762 g

Environmental Requirements

Limit temperature range -60 … +105°C

Commercial data

Product Group 4 (Printed Circuit)

Country of origin PL

GTIN 4044918302401

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 No. 158 1604421

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

sec6

Compatible products

Jumper

Item no.: 745-390

Comb-style jumper bar; 10-way

745-390

745-352/005-000
