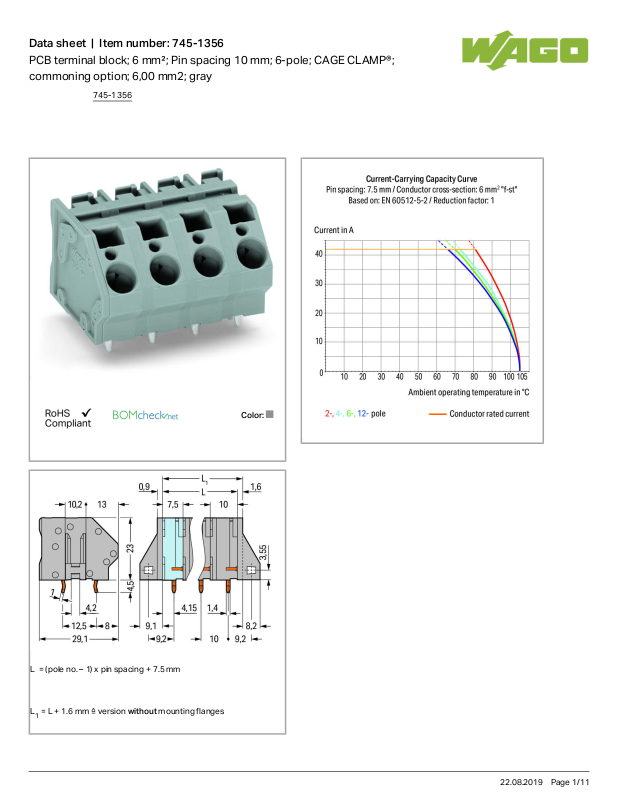

Data sheet | Item number:745-1356
PCB terminal block; 6 mm²; Pin spacing 10 mm; 6-pole; CAGE CLAMP®;
commoning option; 6,00 mm2; gray
L = (pole no. – 1) x pin spacing + 7.5mm
L = L + 1.6mm ≙ version mounting flanges
1
without
Color:
745-1356
22.08.2019Page /1 11
Page 2
Data sheet | Item number:745-1356
Item description
PCB terminal strips with screwdriver-actuated CAGE CLAMP
®
Versions with Ex approval
Unrestricted UL approval up to 600 V with 12.5 mm pin spacing
Double solder pins for high mechanical stability
Custom color combinations
Integrated testing tap
Marker slot for Mini-WSB markers
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated voltage (III / 2) 1000 V
Rated impulse voltage (III / 2) 8 kV
Rated voltage (II / 2) 1000 V
Rated impulse voltage (II / 2) 8 kV
Rated current 41 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 300 V
Rated current UL (Use Group B) 10 A
Rated voltage UL (Use Group C) 300V
Rated current UL (Use Group C) 10 A
Rated voltage UL (Use Group D) 600 V
Approvals per CSA
Rated voltage CSA (Use Group B) 300 V
Rated current CSA (Use Group B) 10 A
Rated voltage CSA (Use Group C) 300V
Rated current CSA (Use Group C) 10 A
Rated voltage CSA (Use Group D) 600 V
Rated current CSA (Use Group D) 5 A
Connection data
Connection technology
CAGE CLAMP
®
745-1356
22.08.2019Page /2 11
Page 3
Data sheet | Item number:745-1356
Actuation type Operating tool
Solid conductor 0.2 6mm²/ 24 10AWG
Fine-stranded conductor 0.2 6mm²/ 24 10AWG
Fine-stranded conductor with ferrule with plastic collar 0.25 4mm²
Fine-stranded conductor with ferrule without plastic collar 0.25 4mm²
Strip length 11 12mm/ 0.43 0.47inch
Conductor entry angle to the PCB 45 °
Total number of connection points 6
Total number of potentials 6
Number of connection types 1
Number of levels 1
No. of poles 6
Geometrical Data
Pin spacing 10mm/ 0.394inch
Width 59.1mm/ 2.327inch
Height 27.5mm/ 1.083inch
Height from the surface 23mm/ 0.906inch
Depth 29.1mm/ 1.146inch
Solder pin length 4.5mm
Solder pin dimensions 1 x 1.4mm
Drilled hole diameter (tolerance)
1.8 mm
(- … +0.1)
PCB contact
PCB contact THT
Solder pin arrangement over the entire terminal strip, in line
Number of solder pins per potential 2
Material Data
Color gray
Material group I
Insulating material Polyamide 66 (PA 66)
Flammability class per UL94 V0
Clamping spring material Chrome nickel spring steel (CrNi)
Contact material Electrolytic copper (E )
Cu
Contact plating tin-plated
Fire load 0.594 MJ
Weight 33.728 g
745-1356
22.08.2019Page /3 11
Page 4
Data sheet | Item number:745-1356
Environmental Requirements
Limit temperature range -60 +105°C
Commercial data
Product Group 4 (Printed Circuit)
Country of origin PL
GTIN 4045454472252
Customs Tariff No. 85369010000
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2160584.16
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7097
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7097
CCA
DEKRA Certification B.V.
EN 60947 2160584.16
CSA
DEKRA Certification B.V.
C22.2 No. 158 1604421
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
sec6
745-1356
22.08.2019Page /4 11
Page 5
Data sheet | Item number:745-1356
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
cURus
Underwriters Laboratories Inc.
UL 1059 E45172
sec6
