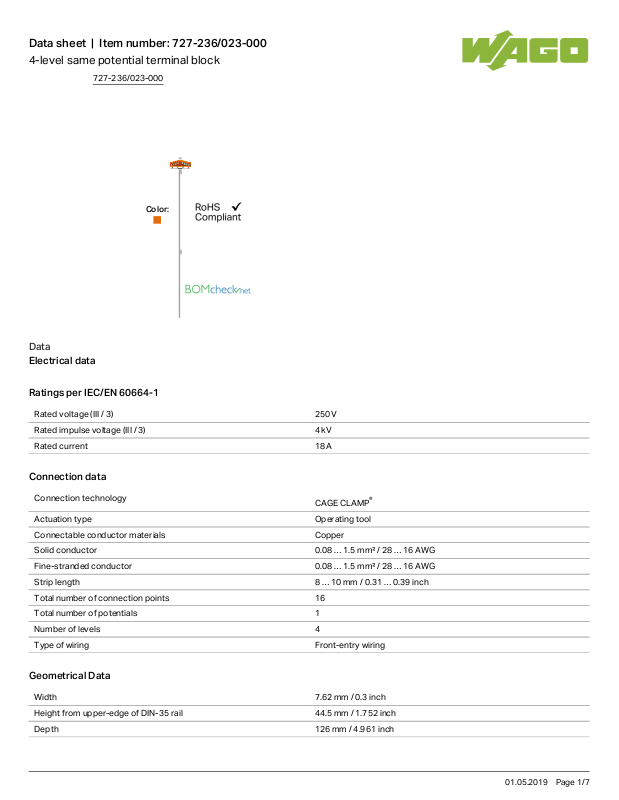

Wago 727-236/023-000 Data Sheet

Data sheet | Item number:727-236/023-000

4-level same potential terminal block

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 10mm/ 0.31 … 0.39inch

Total number of connection points 16

Total number of potentials 1

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch

Depth 126mm/ 4.961inch

727-236/023-000

01.05.2019Page /1 7

Data sheet | Item number:727-236/023-000

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking 3-2-1-0--0-1-2-3

Marking level Center marking

Material Data

Color orange

Insulating material Polyamide 66 (PA 66)

Fire load 0.556 MJ

Weight 29.649g

Commercial data

Country of origin DE

GTIN 4045454189990

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

Compatible products

727-236/023-000

01.05.2019Page /2 7

Data sheet | Item number:727-236/023-000

Jumper

Item no.: 709-107

Wire commoning chain; insulated; 32 connections

709-107

End plate

Item no.: 727-205

4-level end plate; marking: 0-1-2-3--3-2-1-0; 7.62 mm thick

727-205

Item no.: 727-206

4-level end plate; marking: a-b-c-d--d-c-b-a; 7.62 mm thick

727-206

Item no.: 727-207

4-level end plate; marking: 3-2-1-0--0-1-2-3; 7.62 mm thick

727-207

Item no.: 727-208

4-level end plate; marking: d-c-b-a--a-b-c-d; 7.62 mm thick

727-208

Item no.: 727-217

4-level end plate; plain; 7.62 mm thick

727-217

Item no.: 727-257

4-level end plate; marking: 3-2-1-0--0-1-2-3; 7.62 mm thick

727-257

Item no.: 727-267

4-level end plate; marking: 3-2-1-0--0-1-2-3; 7.62 mm thick

727-267

General accessories

Item no.: 249-109

Wire harness support

249-109

check

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable

210-137

Item no.: 210-297

Step-down test plug; from 4mm socket to 2mm plug

210-297

Carrier rail

Item no.: 210-112

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118

Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196

Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715

210-196
