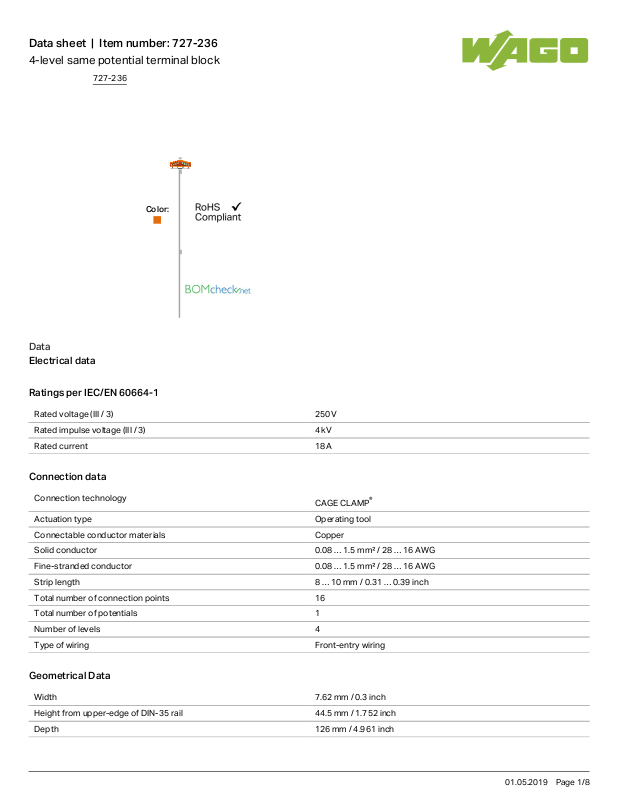

Wago 727-236 Data Sheet

Data sheet | Item number:727-236

4-level same potential terminal block

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 10mm/ 0.31 … 0.39inch

Total number of connection points 16

Total number of potentials 1

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch

Depth 126mm/ 4.961inch

727-236

01.05.2019Page /1 8

Data sheet | Item number:727-236

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking plain

Marking level Center marking

Material Data

Color orange

Insulating material Polyamide 66 (PA 66)

Fire load 0.556 MJ

Weight 30.2g

Commercial data

Country of origin DE

GTIN 4045454189969

Customs Tariff No. 85369010000
