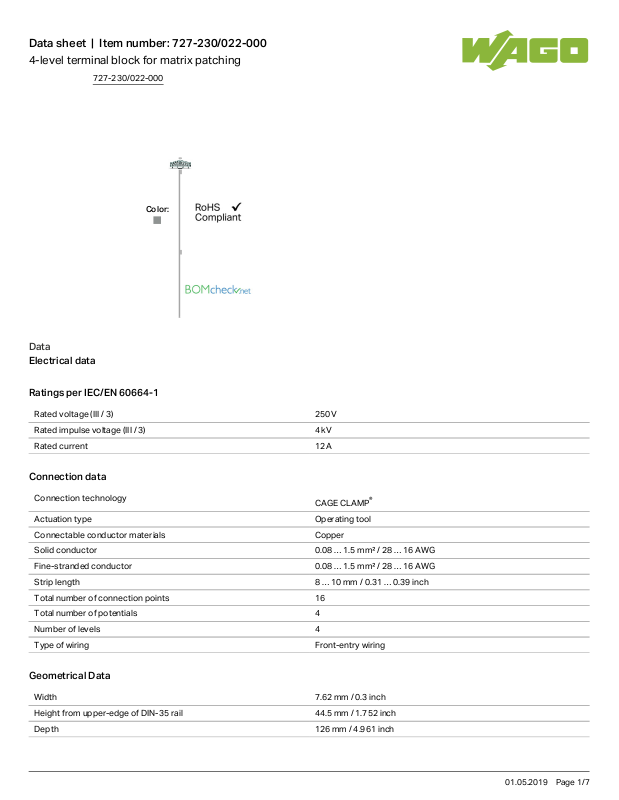

Wago 727-230/022-000 Data Sheet
Data sheet | Item number:727-230/022-000
4-level terminal block for matrix patching
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 12 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG
Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG
Strip length 8 … 10mm/ 0.31 … 0.39inch
Total number of connection points 16
Total number of potentials 4
Number of levels 4
Type of wiring Front-entry wiring
Geometrical Data
Width 7.62mm/ 0.3inch
Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch
Depth 126mm/ 4.961inch
727-230/022-000
01.05.2019Page /1 7
Data sheet | Item number:727-230/022-000
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking a-b-c-d--d-c-b-a
Marking level Center marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.568 MJ
Weight 32.936g
Commercial data
Country of origin DE
GTIN 4045454189457
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7485
CSA
DEKRA Certification B.V.
C22.2 No. 158 70048845
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2192101.01
Compatible products
727-230/022-000
01.05.2019Page /2 7
Data sheet | Item number:727-230/022-000
General accessories
Item no.: 249-109
Wire harness support
249-109
Insulation stop
Item no.: 727-197
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 8 pieces/strip
727-197
Item no.: 727-198
Insulation stop; 0.25 mm² “s”; 0.14 - 0.25 mm² “f-st”; 8 pieces/strip
727-198
Item no.: 727-199
Insulation stop; 0.25 - 0.5 mm² "s+f-st"; 8 pieces/strip
727-199
Jumper
Item no.: 709-107
Wire commoning chain; insulated; 32 connections
709-107
End plate
Item no.: 727-205
4-level end plate; marking: 0-1-2-3--3-2-1-0; 7.62 mm thick
727-205
Item no.: 727-206
4-level end plate; marking: a-b-c-d--d-c-b-a; 7.62 mm thick
727-206
Item no.: 727-207
4-level end plate; marking: 3-2-1-0--0-1-2-3; 7.62 mm thick
727-207
Item no.: 727-208
4-level end plate; marking: d-c-b-a--a-b-c-d; 7.62 mm thick
727-208
Item no.: 727-217
4-level end plate; plain; 7.62 mm thick
727-217
Item no.: 727-256
4-level end plate; marking: a-b-c-d--d-c-b-a; 7.62 mm thick
727-256
Item no.: 727-266
4-level end plate; marking: a-b-c-d--d-c-b-a; 7.62 mm thick
727-266
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
727-230/022-000
01.05.2019Page /3 7
