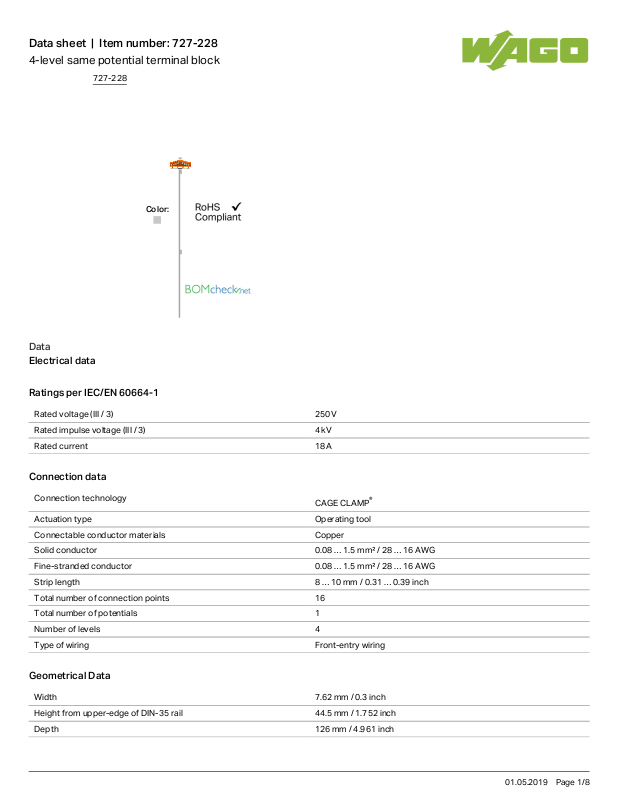

Wago 727-228 Data Sheet

Data sheet | Item number:727-228

4-level same potential terminal block

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 10mm/ 0.31 … 0.39inch

Total number of connection points 16

Total number of potentials 1

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch

Depth 126mm/ 4.961inch

727-228

01.05.2019Page /1 8

Data sheet | Item number:727-228

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking plain

Marking level Center marking

Material Data

Color light gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.555 MJ

Weight 29.609g

Commercial data

Country of origin DE

GTIN 4045454189174

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

727-228

01.05.2019Page /2 8

Data sheet | Item number:727-228

Compatible products

Insulation stop

Item no.: 727-197

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 8 pieces/strip

727-197

Item no.: 727-198

Insulation stop; 0.25 mm² “s”; 0.14 - 0.25 mm² “f-st”; 8 pieces/strip

727-198

Item no.: 727-199

Insulation stop; 0.25 - 0.5 mm² "s+f-st"; 8 pieces/strip

727-199

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-104

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-104

Item no.: 216-121

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-121

Item no.: 216-122

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-122

Item no.: 216-123

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-123

Item no.: 216-124

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-124

Item no.: 216-131

Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated

216-131

Item no.: 216-132

Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated

216-132

Item no.: 216-151

Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated

216-151

Item no.: 216-152

Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated

216-152
