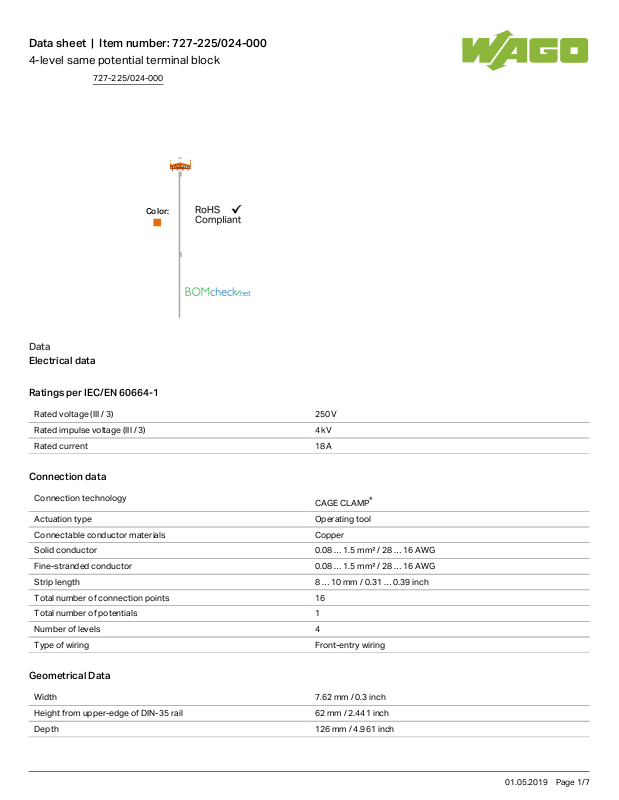

Wago 727-225/024-000 Data Sheet

Data sheet | Item number:727-225/024-000

4-level same potential terminal block

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 10mm/ 0.31 … 0.39inch

Total number of connection points 16

Total number of potentials 1

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 62mm/ 2.441inch

Depth 126mm/ 4.961inch

727-225/024-000

01.05.2019Page /1 7

Data sheet | Item number:727-225/024-000

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking d-c-b-a--a-b-c-d

Marking level Center marking

Material Data

Color orange

Insulating material Polyamide 66 (PA 66)

Fire load 0.576 MJ

Weight 30.309g

Commercial data

Country of origin DE

GTIN 4045454189044

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

Compatible products

727-225/024-000

01.05.2019Page /2 7

Data sheet | Item number:727-225/024-000

Jumper

Item no.: 709-107

Wire commoning chain; insulated; 32 connections

709-107

tools

Item no.: 210-647

Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short

210-647

Item no.: 210-719

Operating tool with partially insulated shaft; Type 1, blade (2.5 x 0.4) mm

210-719

check

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable

210-137

Item no.: 210-297

Step-down test plug; from 4mm socket to 2mm plug

210-297

General accessories

Item no.: 249-109

Wire harness support

249-109

Insulation stop

Item no.: 727-197

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 8 pieces/strip

727-197

Item no.: 727-198

Insulation stop; 0.25 mm² “s”; 0.14 - 0.25 mm² “f-st”; 8 pieces/strip

727-198

Item no.: 727-199

Insulation stop; 0.25 - 0.5 mm² "s+f-st"; 8 pieces/strip

727-199

End plate

Item no.: 727-205

4-level end plate; marking: 0-1-2-3--3-2-1-0; 7.62 mm thick

727-205

Item no.: 727-206

4-level end plate; marking: a-b-c-d--d-c-b-a; 7.62 mm thick

727-206

Item no.: 727-207

4-level end plate; marking: 3-2-1-0--0-1-2-3; 7.62 mm thick

727-207

Item no.: 727-208

4-level end plate; marking: d-c-b-a--a-b-c-d; 7.62 mm thick

727-208

Item no.: 727-217

4-level end plate; plain; 7.62 mm thick

727-217

Item no.: 727-258

4-level end plate; marking: d-c-b-a--a-b-c-d; 7.62 mm thick

727-258

Item no.: 727-268

4-level end plate; marking: d-c-b-a--a-b-c-d; 7.62 mm thick

727-268

ferrule

727-225/024-000
