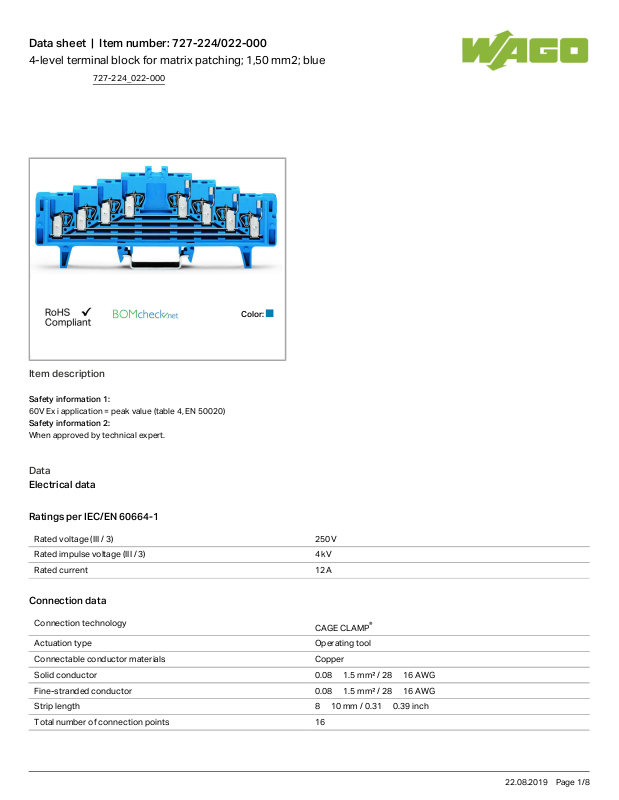

Wago 727-224/022-000 Data Sheet

Data sheet | Item number:727-224/022-000

4-level terminal block for matrix patching; 1,50 mm2; blue

Color:

Item description

Safety information 1:

60V Ex i application = peak value (table 4, EN 50020)

Safety information 2:

When approved by technical expert.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 12 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 1.5mm²/ 28 16AWG

Fine-stranded conductor 0.08 1.5mm²/ 28 16AWG

Strip length 8 10mm/ 0.31 0.39inch

Total number of connection points 16

727-224_022-000

22.08.2019Page /1 8

Data sheet | Item number:727-224/022-000

Total number of potentials 4

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch

Depth 126mm/ 4.961inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking a-b-c-d--d-c-b-a

Marking level Center marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.55 MJ

Weight 32.336g

Commercial data

Country of origin DE

GTIN 4045454188962

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

727-224_022-000

22.08.2019Page /2 8

Data sheet | Item number:727-224/022-000

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

Compatible products

check

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable; yellow

210-137

Item no.: 210-297

Step-down test plug; from 4mm socket to 2mm plug; red

210-297

Carrier rail

Item no.: 210-112

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm

210-112

Item no.: 210-113

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114

Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115

Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm

210-115

Item no.: 210-118

Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118
