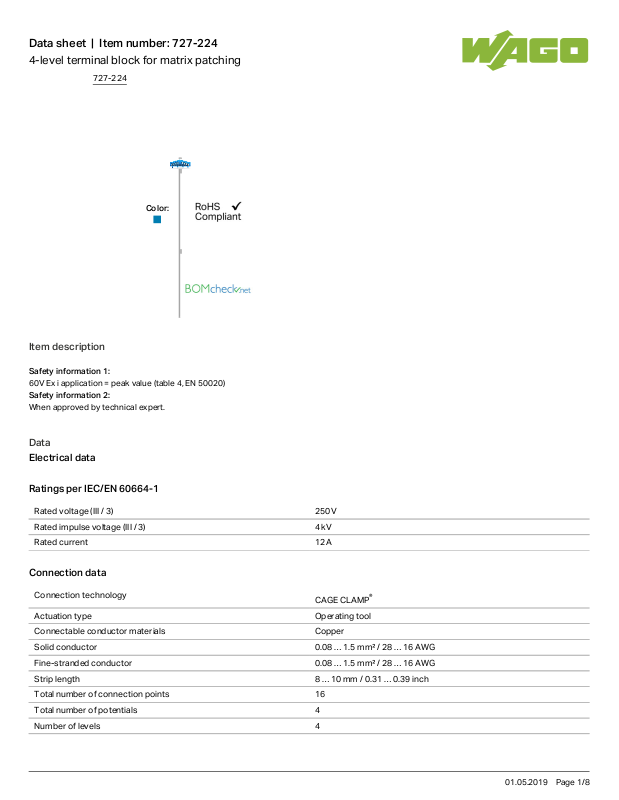

Wago 727-224 Data Sheet

Data sheet | Item number:727-224

4-level terminal block for matrix patching

Color:

Item description

Safety information 1:

60V Ex i application = peak value (table 4, EN 50020)

Safety information 2:

When approved by technical expert.

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 12 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 10mm/ 0.31 … 0.39inch

Total number of connection points 16

Total number of potentials 4

Number of levels 4

727-224

01.05.2019Page /1 8

Data sheet | Item number:727-224

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 44.5mm/ 1.752inch

Depth 126mm/ 4.961inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking plain

Marking level Center marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.55 MJ

Weight 32.12g

Commercial data

Country of origin DE

GTIN 4045454188948

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

UL-Approvals

727-224

01.05.2019Page /2 8

Data sheet | Item number:727-224

Logo

Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-012

Item no.: 2009-115/000-017

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-017

Item no.: 2009-115/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-023

Item no.: 2009-115/000-024

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-024

Item no.: 209-128

Adaptor

209-128

Item no.: 793-501

WMB marking card; as card; not stretchable; plain; snap-on type

793-501

727-224

01.05.2019Page /3 8
