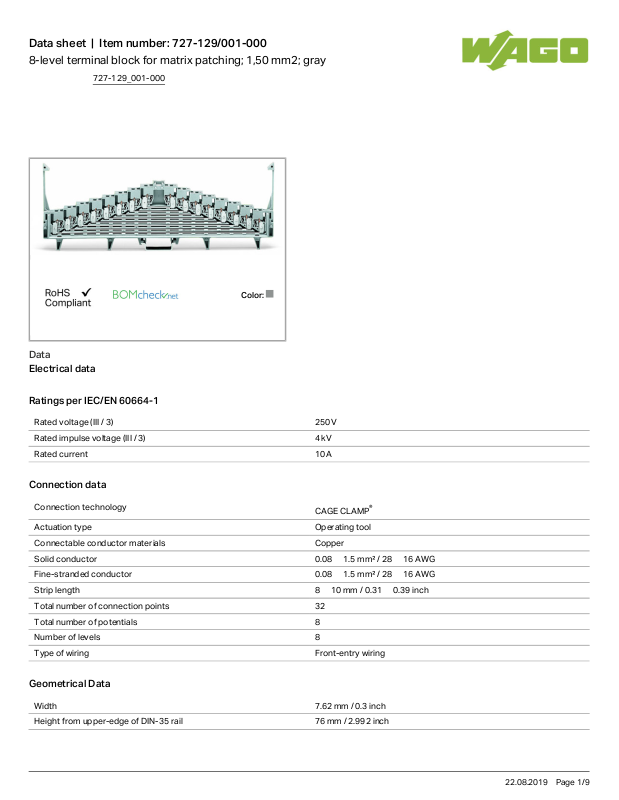

Wago 727-129/001-000 Data Sheet

Data sheet | Item number:727-129/001-000

8-level terminal block for matrix patching; 1,50 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 10 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 1.5mm²/ 28 16AWG

Fine-stranded conductor 0.08 1.5mm²/ 28 16AWG

Strip length 8 10mm/ 0.31 0.39inch

Total number of connection points 32

Total number of potentials 8

Number of levels 8

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 76mm/ 2.992inch

727-129_001-000

22.08.2019Page /1 9

Data sheet | Item number:727-129/001-000

Depth 226mm/ 8.898inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1-0

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 1.187 MJ

Weight 73.838g

Commercial data

Country of origin DE

GTIN 4045454187729

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

727-129_001-000

22.08.2019Page /2 9

Data sheet | Item number:727-129/001-000

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

Compatible products

End plate

Item no.: 727-105

8-level end plate; marking: 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1; 7.62 mm thick; orange

727-105

Item no.: 727-106

8-level end plate; marking: a-b-c-d-e-f-g-h--h-g-f-e-d-c-b-a; 7.62 mm thick; orange

727-106

Item no.: 727-107

8-level end plate; marking: 7-6-5-4-3-2-1-0--0-1-2-3-4-5-6-7; 7.62 mm thick; orange

727-107

Item no.: 727-108

8-level end plate; marking: h-g-f-e-d-c-b-a--a-b-c-d-e-f-g-h; 7.62 mm thick; orange

727-108

Item no.: 727-113

8-level end plate; plain; 7.62 mm thick; gray

727-113

Item no.: 727-114

8-level end plate; plain; 7.62 mm thick; blue

727-114

Item no.: 727-115

8-level end plate; plain; 7.62 mm thick; white

727-115

Item no.: 727-116

8-level end plate; plain; 7.62 mm thick; light gray

727-116

Item no.: 727-117

8-level end plate; plain; 7.62 mm thick; orange

727-117

Item no.: 727-155

8-level end plate; marking: 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1; 7.62 mm thick; gray

727-155

Item no.: 727-156

8-level end plate; marking: a-b-c-d-e-f-g-h--h-g-f-e-d-c-b-a; 7.62 mm thick; gray

727-156

Item no.: 727-157
