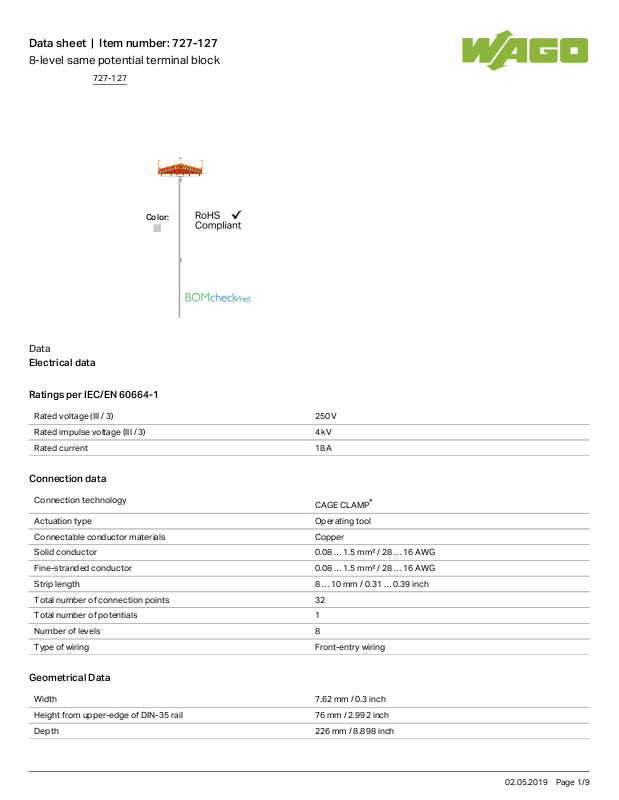

Data sheet | Item number:727-127
8-level same potential terminal block
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 250 V
Rated impulse voltage (III / 3) 4 kV
Rated current 18 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG
Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG
Strip length 8 … 10mm/ 0.31 … 0.39inch
Total number of connection points 32
Total number of potentials 1
Number of levels 8
Type of wiring Front-entry wiring
Geometrical Data
Width 7.62mm/ 0.3inch
Height from upper-edge of DIN-35 rail 76mm/ 2.992inch
Depth 226mm/ 8.898inch
727-127
02.05.2019Page /1 9
Data sheet | Item number:727-127
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking plain
Marking level Center marking
Material Data
Color light gray
Insulating material Polyamide 66 (PA 66)
Fire load 1.187 MJ
Weight 62.08g
Commercial data
Country of origin DE
GTIN 4045454187569
Customs Tariff No. 85369010000
