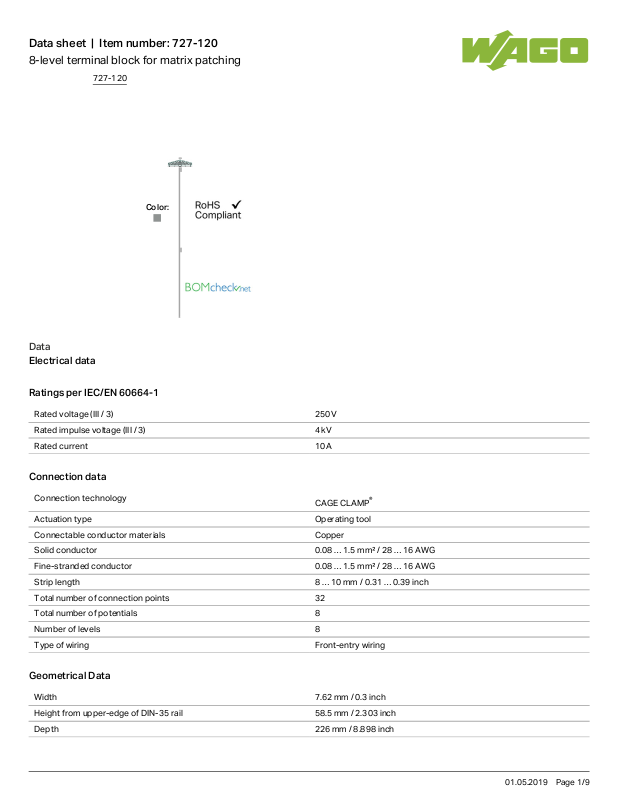

Wago 727-120 Data Sheet

Data sheet | Item number:727-120

8-level terminal block for matrix patching

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 10 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 10mm/ 0.31 … 0.39inch

Total number of connection points 32

Total number of potentials 8

Number of levels 8

Type of wiring Front-entry wiring

Geometrical Data

Width 7.62mm/ 0.3inch

Height from upper-edge of DIN-35 rail 58.5mm/ 2.303inch

Depth 226mm/ 8.898inch

727-120

01.05.2019Page /1 9

Data sheet | Item number:727-120

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking plain

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 1.169 MJ

Weight 73.06g

Commercial data

Country of origin DE

GTIN 4045454187019

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7485

CSA

DEKRA Certification B.V.

C22.2 No. 158 70048845

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2192101.01

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

727-120

01.05.2019Page /2 9

Data sheet | Item number:727-120

Logo

Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

End plate

Item no.: 727-105

8-level end plate; marking: 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1; 7.62 mm thick

727-105

Item no.: 727-106

8-level end plate; marking: a-b-c-d-e-f-g-h--h-g-f-e-d-c-b-a; 7.62 mm thick

727-106

Item no.: 727-107

8-level end plate; marking: 7-6-5-4-3-2-1-0--0-1-2-3-4-5-6-7; 7.62 mm thick

727-107

Item no.: 727-108

8-level end plate; marking: h-g-f-e-d-c-b-a--a-b-c-d-e-f-g-h; 7.62 mm thick

727-108

Item no.: 727-113

8-level end plate; plain; 7.62 mm thick

727-113

Item no.: 727-114

8-level end plate; plain; 7.62 mm thick

727-114

Item no.: 727-115

8-level end plate; plain; 7.62 mm thick

727-115

Item no.: 727-116

8-level end plate; plain; 7.62 mm thick

727-116

Item no.: 727-117

8-level end plate; plain; 7.62 mm thick

727-117

Item no.: 727-155

8-level end plate; marking: 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1; 7.62 mm thick

727-155

Item no.: 727-156

8-level end plate; marking: a-b-c-d-e-f-g-h--h-g-f-e-d-c-b-a; 7.62 mm thick

727-156

Item no.: 727-157

8-level end plate; marking: 7-6-5-4-3-2-1-0--0-1-2-3-4-5-6-7; 7.62 mm thick

727-157
