Manual
WAGO-I/O-SYSTEM 750
side switching,
side
8DI 24V DC 0.2ms, low-
2-conductor
750-1418
8-Channel Digital Input Module 24 V DC, Low-
switching, 2-conductor connection
Version 1.1.0
2 WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
© 2013 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: +49 (0) 571/8 87 – 0
Fax: +49 (0) 571/8 87 – 1 69
E-Mail: info@wago.com
Web: http://www.wago.com
Technical Support
Phone: +49 (0) 571/8 87 – 5 55
Fax: +49 (0) 571/8 87 – 85 55
E-Mail: support@wago.com
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
E-Mail: documentation@wago.com
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Table of Contents 3
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Table of Contents
1 Notes about this Documentation ................................................................. 5
1.1 Validity of this Documentation ................................................................. 5
1.2 Copyright ................................................................................................... 5
1.3 Symbols ..................................................................................................... 6
1.4 Number Notation ....................................................................................... 8
1.5 Font Conventions ...................................................................................... 8
2 Important Notes ........................................................................................... 9
2.1 Legal Bases ............................................................................................... 9
2.1.1 Subject to Changes ............................................................................... 9
2.1.2 Personnel Qualifications ....................................................................... 9
2.1.3 Use of the 750 Series in Compliance with Underlying Provisions ...... 9
2.1.4 Technical Condition of Specified Devices ......................................... 10
2.2 Safety Advice (Precautions) .................................................................... 11
3 Device Description ..................................................................................... 13
3.1 View ........................................................................................................ 14
3.2 Connectors ............................................................................................... 15

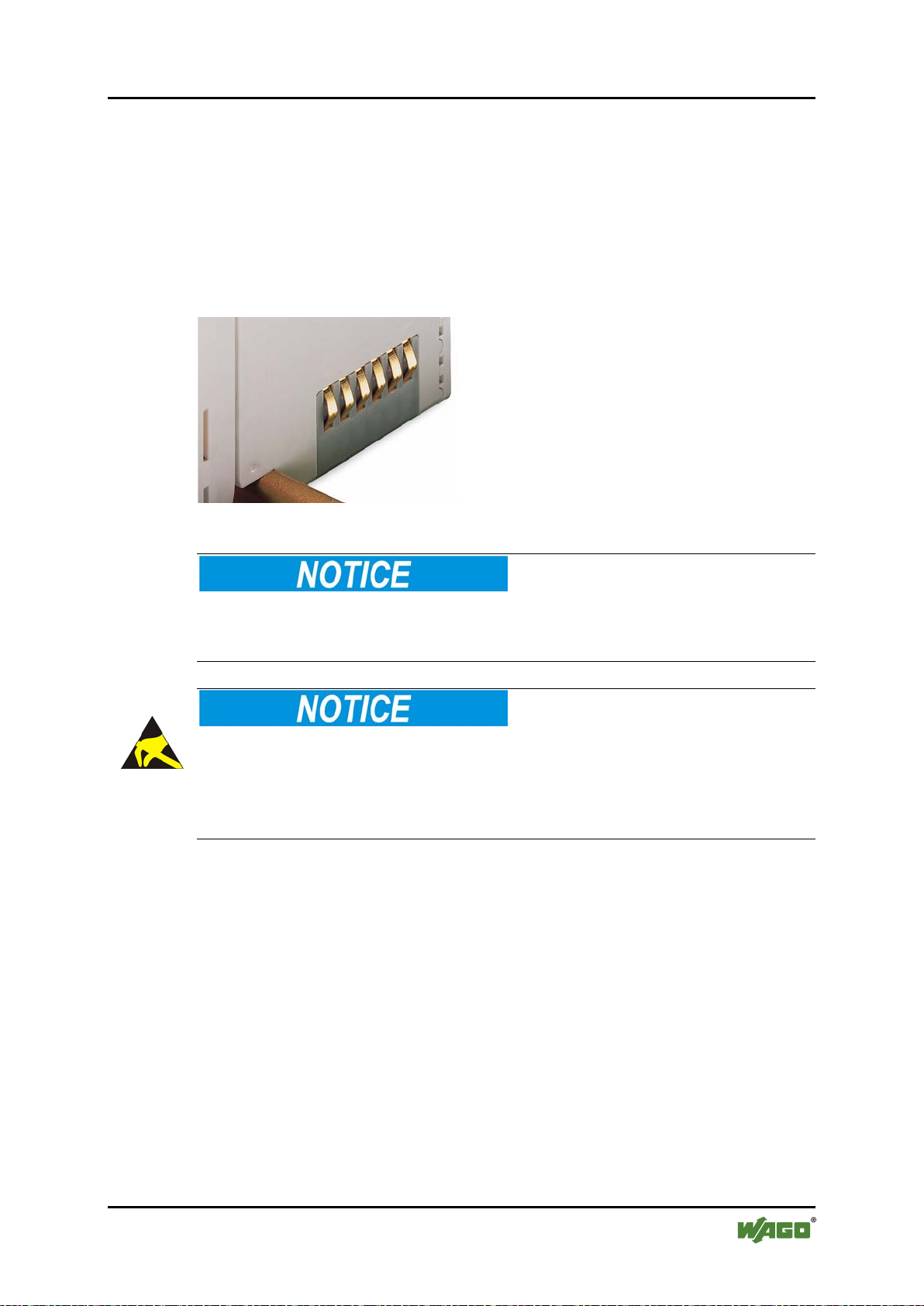

3.2.1 Data Contacts/Internal Bus ................................................................. 15
3.2.2 Power Jumper Contacts/Field Supply ................................................ 16
3.2.3 CAGE CLAMP® Connectors ............................................................. 18
3.3 Display Elements .................................................................................... 19
3.4 Operating Elements ................................................................................. 19
3.5 Schematic Diagram ................................................................................. 20
3.6 Technical Data ........................................................................................ 21
3.6.1 Device data ......................................................................................... 21
3.6.2 Communication .................................................................................. 21
3.6.3 Supply ................................................................................................. 21
3.6.4 Inputs .................................................................................................. 21
3.6.5 Wire Connection ................................................................................. 22
3.7 Approvals ................................................................................................ 23
3.8 Standards and Guidelines ........................................................................ 24
4 Mounting ..................................................................................................... 25
4.1 Mounting Sequence ................................................................................. 25
4.2 Inserting and Removing Devices ............................................................ 26
4.2.1 Inserting I/O Module .......................................................................... 26
4.2.2 Removing the I/O Module .................................................................. 27
5 Connect Devices ......................................................................................... 28

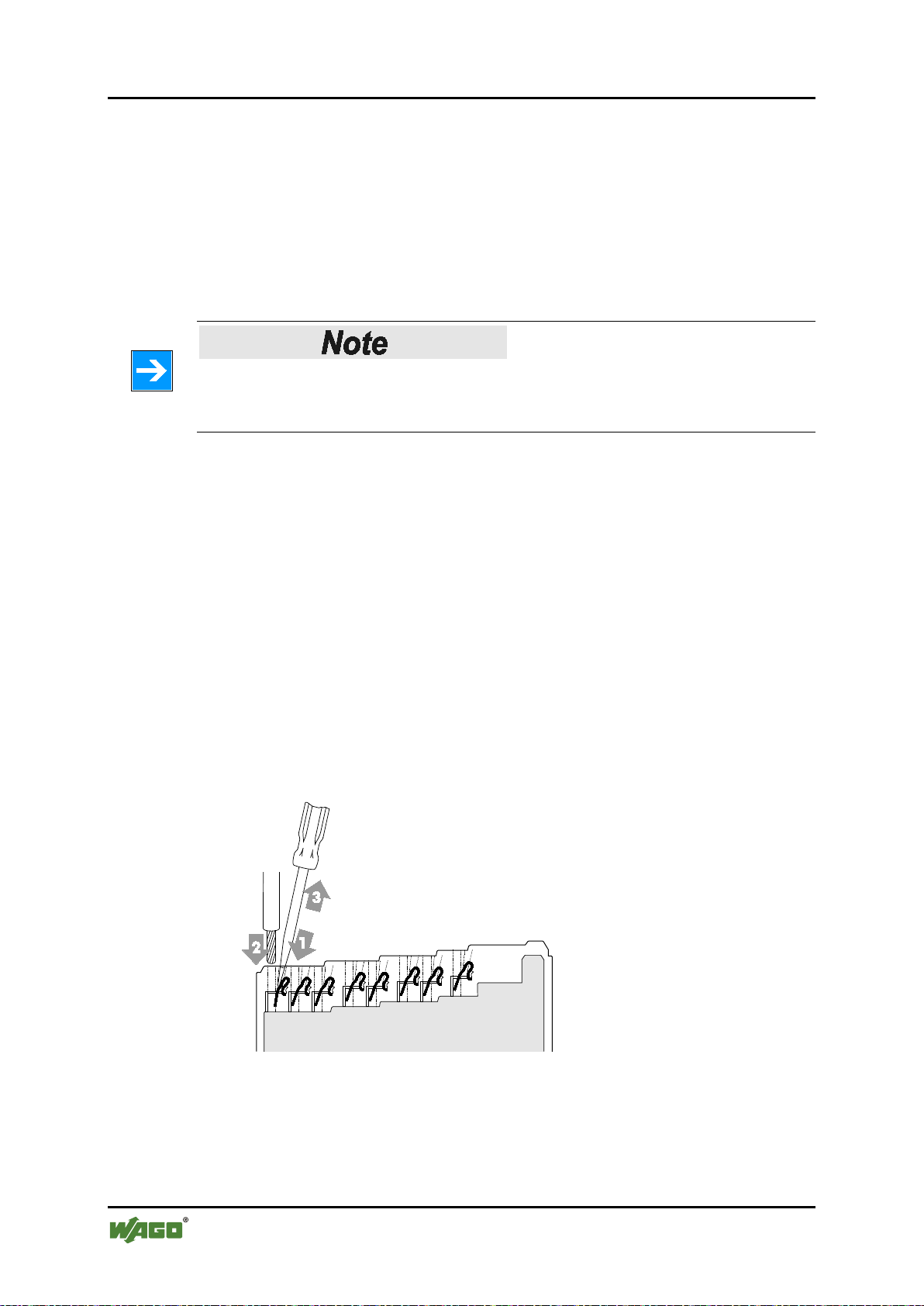

6 Connecting a conductor to the CAGE CLAMP® S ................................. 28
7 Process Image ............................................................................................. 29
8 Use in Hazardous Environments .............................................................. 30

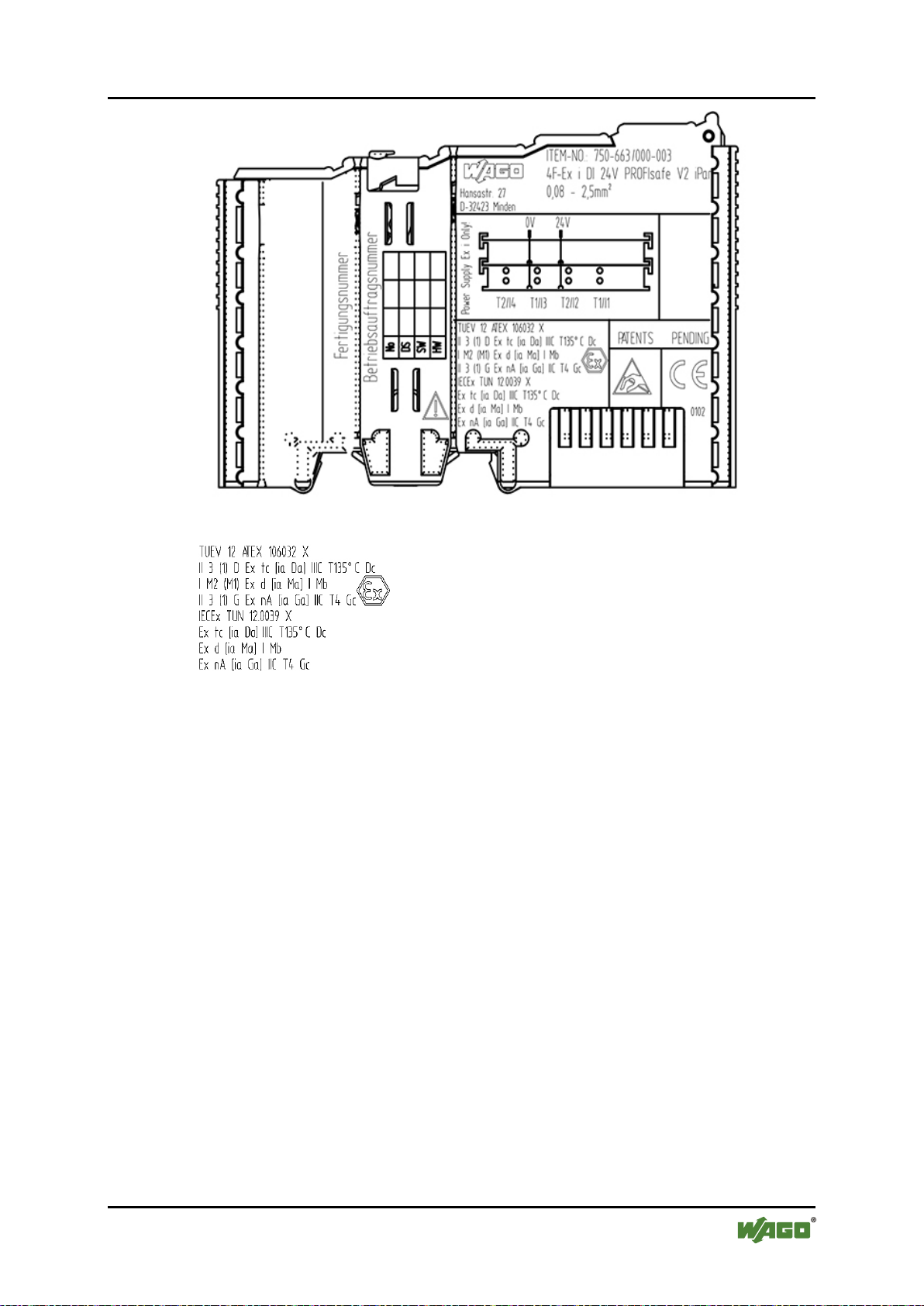

8.1 Marking Configuration Examples ........................................................... 31

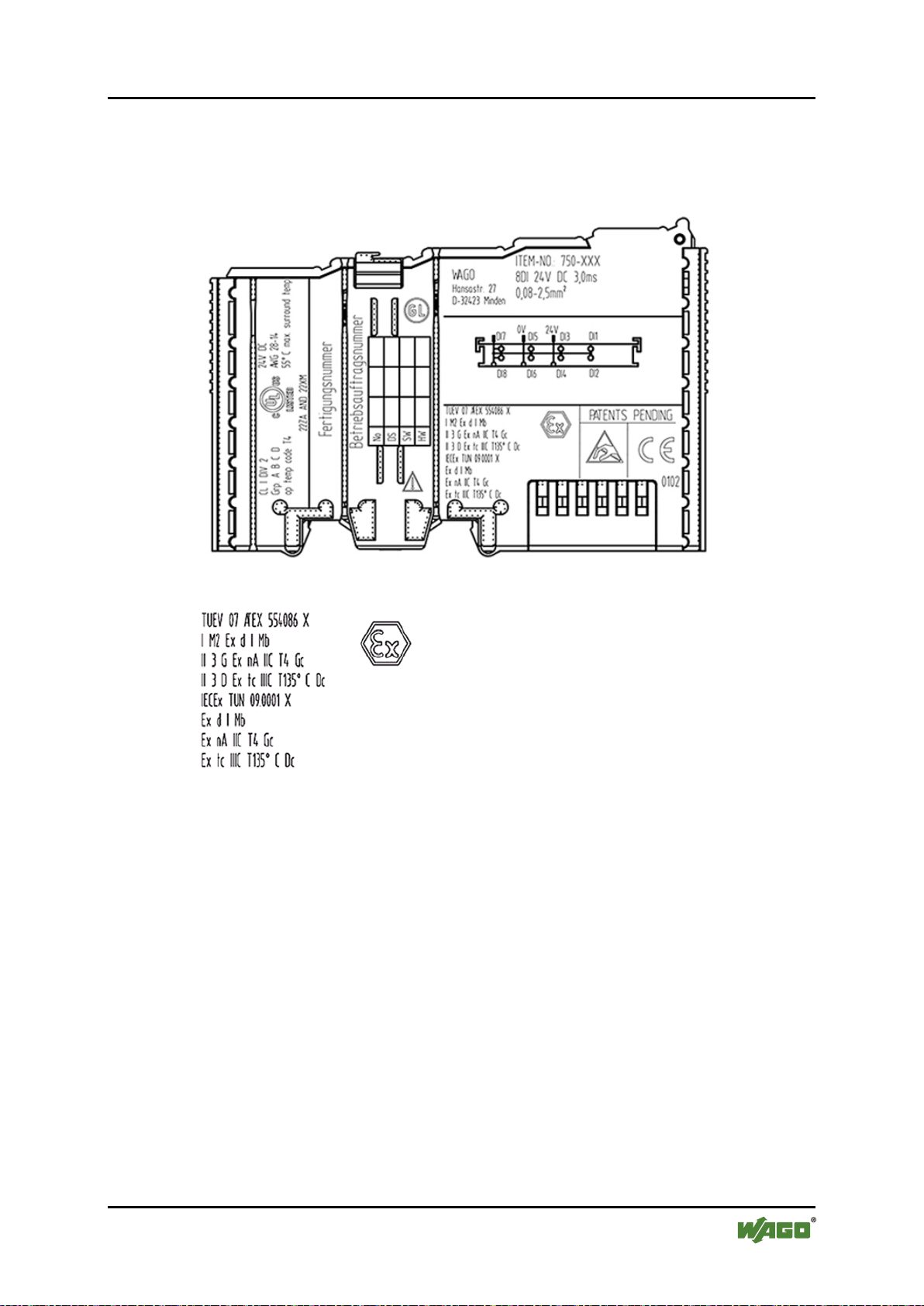

8.1.1 Marking for Europe according to ATEX and IEC-Ex ........................ 31
8.1.2 Marking for America according to NEC 500 ..................................... 36
8.2 Installation Regulations ........................................................................... 37
Manual
Version 1.1.0
4 Table of Contents WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2.1 Special conditions for safe use (ATEX Certificate TÜV 07 ATEX
554086 X) ........................................................................................... 38
8.2.2 Special conditions for safe use (ATEX Certificate TÜV 12 ATEX
106032 X) ........................................................................................... 39
8.2.3 Special conditions for safe use (IEC-Ex Certificate TUN 09.0001 X)40
8.2.4 Special conditions for safe use (IEC-Ex Certificate IECEx TUN
12.0039 X) .......................................................................................... 41
8.2.5 ANSI/ISA 12.12.01 ............................................................................ 42
List of Figures ...................................................................................................... 43
List of Tables ........................................................................................................ 44
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Notes about this Documentation 5
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
1 Notes about this Documentation
Keep this documentation!
The operating instructions are part of the product and shall be kept for the entire
lifetime of the device. They shall be transferred to each subsequent owner or user
of the device. Care must also be taken to ensure that any supplement to these
instructions are included, if applicable.
1.1 Validity of this Documentation
This documentation is only applicable to the I/O module 750-1418
(8DI 24V DC 0.2ms, low-side switching, 2-conductor) of the
WAGO-I/O-SYSTEM 750 series.
The I/O module 750-1418 shall only be installed and operated according to the
instructions in this manual and in the manual for the used fieldbus
coupler/controller.
Consider power layout of the WAGO-I/O-SYSTEM 750!
In addition to these operating instructions, you will also need the manual for the
used fieldbus coupler/controller, which can be downloaded at www.wago.com.
There, you can obtain important information including information on electrical
isolation, system power and supply specifications.
1.2 Copyright
This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.
Manual
Version 1.1.0
6 Notes about this Documentation WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
1.3 Symbols
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Notes about this Documentation 7
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).
Manual
Version 1.1.0
8 Notes about this Documentation WAGO-I/O-SYSTEM 750
Table 1: Number notation
Number code
Example
Note
Decimal
100
Normal notation
Hexadecimal
0x64
C notation
Binary
'100'
'0110.0100'
In quotation marks, nibble separated with
dots (.)
Table 2: Font conventions
Font type
Indicates
italic
Names of paths and data files are marked in italic-type.
e.g.: C:\Programme\WAGO-I/O-CHECK
Menu
Menu items are marked in bold letters.
e.g.: Save
>
A greater-than sign between two names means the selection of a
e.g.: File > New
Input
Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range
“Value”
Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under Start of measurement range.
[Button]
Pushbuttons in dialog boxes are marked with bold letters in square
e.g.: [Input]
[Key]
Keys are marked with bold letters in square brackets.
e.g.: [F5]
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
1.4 Number Notation
1.5 Font Conventions
menu item from a menu.
brackets.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Important Notes 9
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
2 Important Notes
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
2.1 Legal Bases
2.1.1 Subject to Changes
WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications that serve to increase the efficiency of technical
progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from
the granting of patents or from the legal protection of utility patents. Third-party
products are always mentioned without any reference to patent rights. Thus, the
existence of such rights cannot be excluded.
2.1.2 Personnel Qualifications
All sequences implemented on Series 750 devices may only be carried out by
electrical specialists with sufficient knowledge in automation. The specialists
must be familiar with the current norms and guidelines for the devices and
automated environments.
All changes to the coupler or controller should always be carried out by qualified
personnel with sufficient skills in PLC programming.
2.1.3 Use of the 750 Series in Complianc e wit h Unde rlying Provisions
Couplers, controllers and I/O modules found in the modular WAGO-I/OSYSTEM 750 receive digital and analog signals from sensors and transmit them
to the actuators or higher-level control systems. Using programmable controllers,
the signals can also be (pre-) processed.
The components have been developed for use in an environment that meets the
IP20 protection class criteria. Protection against finger injury and solid impurities
up to 12.5 mm diameter is assured; protection against water damage is not
ensured. Unless otherwise specified, operation of the components in wet and
dusty environments is prohibited.
Operating 750 Series components in home applications without further measures
is only permitted if they meet the emission limits (emissions of interference)
according to EN 61000-6-3. You will find the relevant information in the section
on "WAGO-I/O-SYSTEM 750" "System Description" "Technical Data" in
the manual for the used fieldbus coupler/controller.
Manual
Version 1.1.0
10 Important Notes WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Appropriate housing (per 94/9/EG) is required when operating the WAGO-I/OSYSTEM 750 in hazardous environments. Please note that a prototype test
certificate must be obtained that confirms the correct installation of the system in
a housing or switch cabinet.
2.1.4 Technical Condition of Spec ified Devices
The components to be supplied Ex Works, are equipped with hardware and
software configurations, which meet the individual application requirements.
WAGO Kontakttechnik GmbH & Co. KG will be exempted from any liability in
case of changes in hardware or software as well as to non-compliant usage of
components.
Please send your request for modified and new hardware or software
configurations directly to WAGO Kontakttechnik GmbH & Co. KG.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Important Notes 11
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
2.2 Safety Advice (Precautions)
For installing and operating purposes of the relevant device to your system the
following safety precautions shall be observed:
Do not work on components while energized!
All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.
Installation only in appropriate housings, cabinets or in electrical operation
rooms!
The WAGO-I/O-SYSTEM 750 and its components are an open system. As such,
install the system and its components exclusively in appropriate housings,
cabinets or in electrical operation rooms. Allow access to such equipment and
fixtures to authorized, qualified staff only by means of specific keys or tools.
Replace defective or damaged devices!
Replace defective or damaged device/module (e.g., in the event of deformed
contacts), since the long-term functionality of device/module involved can no
longer be ensured.
Protect the components against materials having seeping and insulating
properties!
The components are not resistant to materials having seeping and insulating
properties such as: aerosols, silicones and triglycerides (found in some hand
creams). If you cannot exclude that such materials will appear in the component
environment, then install the components in an enclosure being resistant to the
above-mentioned materials. Clean tools and materials are imperative for handling
devices/modules.
Cleaning only with permitted materi al s!
Clean soiled contacts using oil-free compressed air or with ethyl alcohol and
leather cloths.
Manual
Version 1.1.0
12 Important Notes WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Do not use any contact spray!
Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.
Do not reverse the polarity of connection lines!
Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.
Avoid electrostatic discharge!
The devices are equipped with electronic components that you may destroy by
electrostatic discharge when you touch. Pay attention while handling the devices
to good grounding of the environment (persons, job and packing).
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Device Description 13
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3 Device Description
The digital input module 750-1418 receives control signals from digital field (e.g.
of sensors, transmitters, switches or proximity switches).
The I/O module has 8 input channels, providing a direct connection to 2-wire
sensors.
The input signals are connected to the CAGE CLAMP® connections DI 1 and 0V
... DI 8 and 0V.
The assignment of the connections is described in the "Connections" section.
Each input channel has an RC noise rejection filter with a time constant of 0.2 ms.
The I/O module inputs provide low-side switching. If the 0V potential for field
power is switched to an input connection, the signal status for the corresponding
input channel is set to "high."
A green LED indicates the switched status of each channel.
The meaning of the LEDs is described in the “Display Elements” section.
The I/O module receives the 24V voltage supply for the field level from an
upstream I/O module or from the fieldbus coupler/controller via the power
contacts used as blade contacts. It then provides this potential to subsequent I/O
modules via the power contacts used as spring contacts.
Do not exceed maximum current via power contacts!
The maximum current to flow through the power contacts is 10 A.
Greater currents can damage the power contacts.
When configuring the system, ensure that this current is not exceeded. If
exceeded, an additional potential feed module must be used.
Use potential feed module for Ground (earth)!
The I/O module has no power contacts for PE intake and transfer. Use a potential
feed module when a PE feed is needed for the subsequent I/O modules.
The field voltage and the system voltage are electrically isolated from each other.
With consideration of the power jumper contacts, the individual modules can be
arranged in any combination when configuring the fieldbus node. An arrangement
in groups within the group of potentials is not necessary.
The I/O module 750-1418 can be used with all fieldbus couplers/controllers of the
WAGO-I/O-SYSTEM 750.
Manual
Version 1.1.0
14 Device Description WAGO-I/O-SYST EM 750
Table 3: Caption acc. to figure “View”
No.
Designation
Description
Details see chapter
Marking possibility with
Mini-WSB
Status-LEDs
Inputs DI 1 … DI 8
“Device description” >
“Display elements”
“Mounting” >
“Mounting device”
CAGE CLAMP®-supplies
Inputs DI 1 … DI 8
CAGE CLAMP®-supplies
0 V
“Device description” >
“Connections”
“Mounting” >
“Mounting device”
“Device description” >
“Connections”
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.1 View
Figure 1: View
1 ---
2 1 … 8
3 --- Data contacts
1 … 8
4
9 … 16
5 --- Power jumper contacts +24 V
6 --- Release clip
7 --- Power jumper contacts 0 V
---
“Device description” >
“Connections”
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Device Description 15
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.2 Connectors
3.2.1 Data Contacts/Internal Bus
Communication between the coupler/controller and the I/O modules as well as the
system supply of the I/O modules is carried out via the internal bus. It is
comprised of 6 data contacts, which are available as self-cleaning gold spring
contacts.
Figure 2: Data contacts
Do not place the I/O modules on the gold spring contacts!
Do not place the I/O modules on the gold spring contacts in order to avoid soiling
or scratching!
Ensure that the environment is well grounded!
The modules are equipped with electronic components that may be destroyed by
electrostatic discharge. When handling the modules, ensure that the environment
(persons, workplace and packing) is well grounded. Avoid touching conductive
components, e.g. data contacts.
Manual
Version 1.1.0
16 Device Description WAGO-I/O-SYST EM 750
Table 4: Caption acc. to view “Power jumper contacts”
Connector
Type
Function
Forwarding of the
field supply voltage (Uv)
Forwarding of the
field supply voltage (0 V)
Infeed of the
field supply voltage (0 V)
Infeed of the
field supply voltage (Uv)
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor

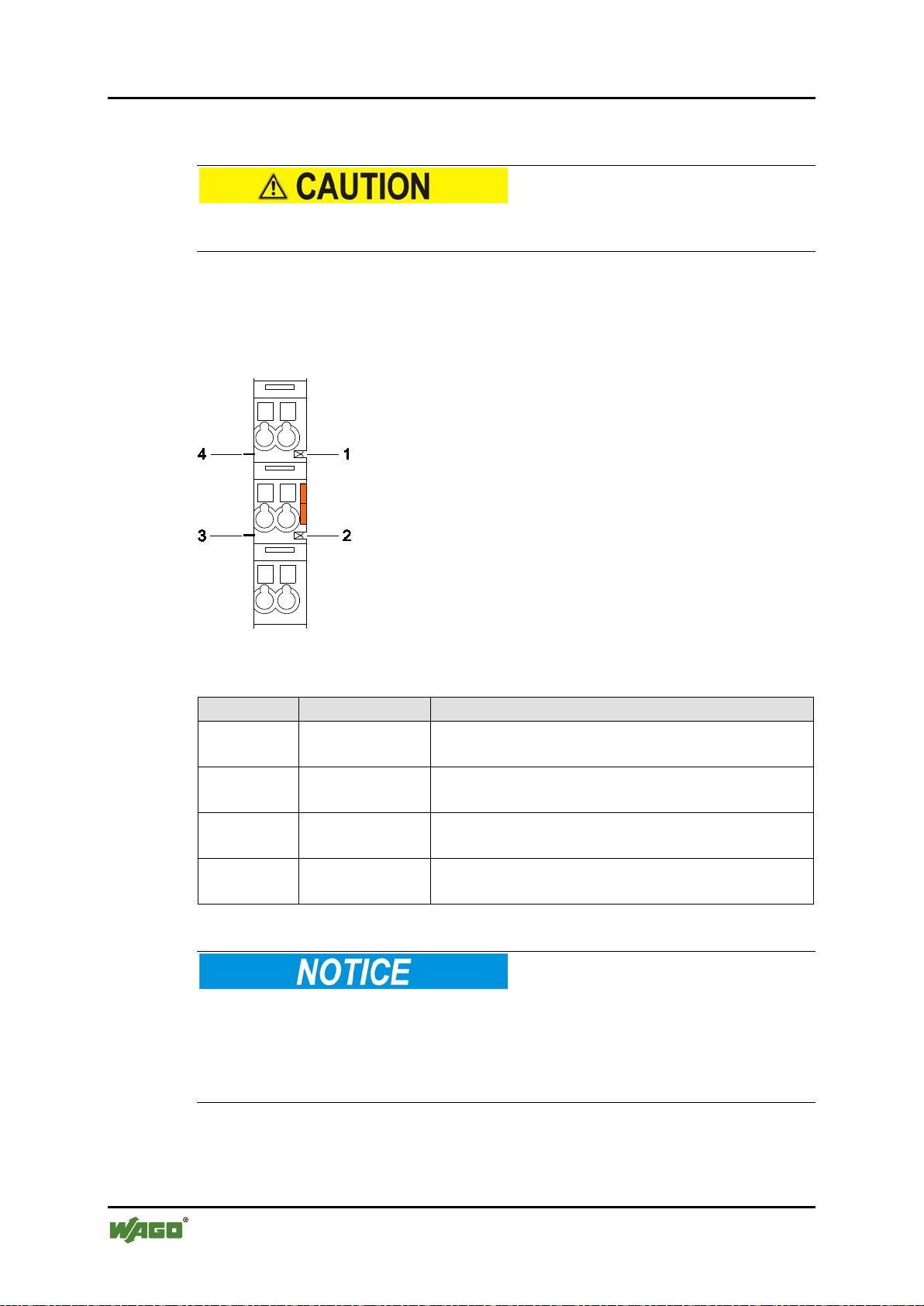

3.2.2 Power Jumper Contacts/ Field Supply
Risk of injury due to sharp-edged male contacts!
The male contacts are sharp-edged. Handle the module carefully to prevent injury.
The I/O module 750-1418 has 2 self-cleaning power jumper contacts that supply
and transmit power for the field side. The contacts on the left side of the I/O
module are designed as male contacts and the contacts on the right side as spring
contacts.
Figure 3: Power jumper contacts
1 Spring contact
2 Spring contact
3 Blade contact
4 Blade contact
Do not exceed maximum current via power contacts!
The maximum current to flow through the power contacts is 10 A.
Greater currents can damage the power contacts.
When configuring the system, ensure that this current is not exceeded. If
exceeded, an additional potential feed module must be used.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Device Description 17
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Use potential feed module for Ground (earth)!
The I/O module has no power contacts for PE intake and transfer. Use a potential
feed module when a PE feed is needed for the subsequent I/O modules.
Manual
Version 1.1.0
18 Device Description WAGO-I/O-SYST EM 750
Table 5: Connections
Connection
Channel
Designation
Function
Input
DI 1
.
Input
DI 8
9 9 0 V
Input DI 9: Sensor supply 0 V
.
16
16
0 V
Input DI 16: Sensor supply 0 V
Power
contacts
Power
contacts
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.2.3 CAGE CLAMP® Connectors
Figure 4: Connections
1 1
8 8
jumper
jumper
Input DI 1: Signal voltage
.
.
Input DI 8: Signal voltage
.
.
- +24 V Field supply voltage +24 V
- 0 V Field supply voltage 0 V
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Device Description 19
Table 6: Display elements
Desig-
nation
State
off
Input DI 1: Signal voltage (0)
green
Input DI 1: Signal voltage (1)
.
State
off
Input DI 8: Signal voltage (0)
green
Input DI 8: Signal voltage (1)
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor

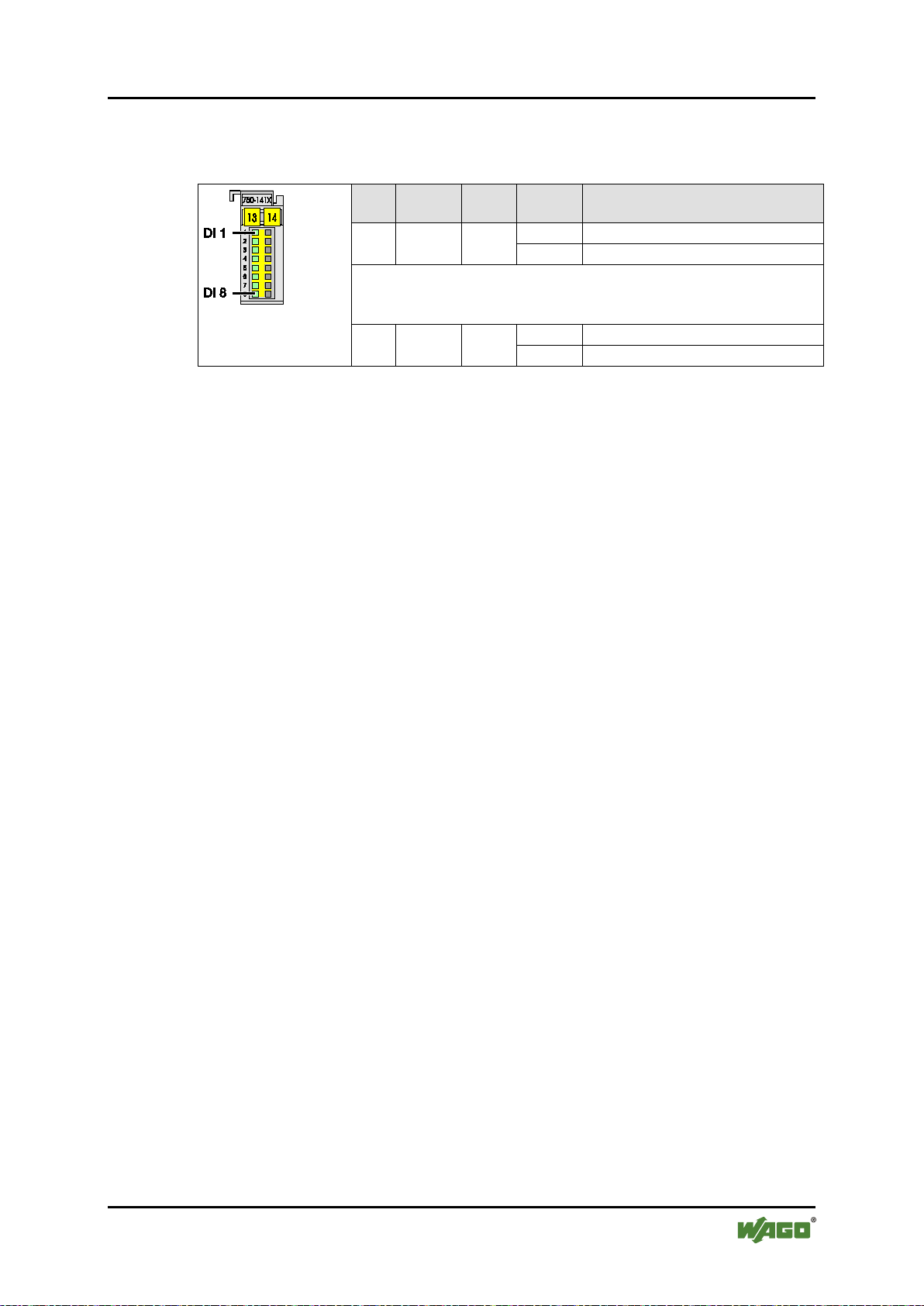

3.3 Display Elements
LED Channel
1 1
Figure 5: Display
elements
8 8
3.4 Operating Elements
The I/O module 750-1418 has no operating elements.
State Function
DI 1
.
.
DI 8
Manual
Version 1.1.0
20 Device Description WAGO-I/O-SYST EM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.5 Schematic Diagram
Figure 6: Schematic d iagram
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Device Description 21
Table 7: Technical data device
Width
12 mm
Height (from upper edge of 35 DIN rail)
67 mm
Depth
100 mm
Weight
50 g
Storage temperature
-20 °C ... +85 °C
Operating temperature
0 °C ... +55 °C
Table 8: Technical data communication
Bit width
8 bits
Table 9: Technical data supply
Voltage supply
Via system supply (internal bus) and
power jumper contacts
Supply voltage (Uv) Field supply
DC 24 V (-25 % ... +30 %)
Current consumption Field supply
---
Current consumption System supply
12 mA
Isolation System/Supply
500 V
Table 10: Technical data inputs
No. of inputs
8
Input type
Low-side switching
Input signal „0“
DC (Uv - 5 V) ... Uv
Input signal „1“
DC -3 V ... (Uv - 15 V)
Input current „0“
-0.6 mA (at DC -3 V ... +5 V)
Input current „1“
-2.1 mA ... -2.7 mA (at DC +15 V ...
+32 V)
Input filter
0.2 ms
Delay time „0“ > „1“
Delay time „1“ > „0“
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.6 Technical Data
3.6.1 Device data
3.6.2 Communication
3.6.3 Supply
3.6.4 Inputs
Manual
Version 1.1.0
22 Device Description WAGO-I/O-SYST EM 750
Table 11: Technical Data Wire Connection
Wire connection
CAGE CLAMP® S
Cross section
0.08 mm²... 1.5 mm² / AWG 28 ... 16
Stripped lengths
8 mm... 9 mm / 0.33 in
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.6.5 Wire Connection
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Device Description 23

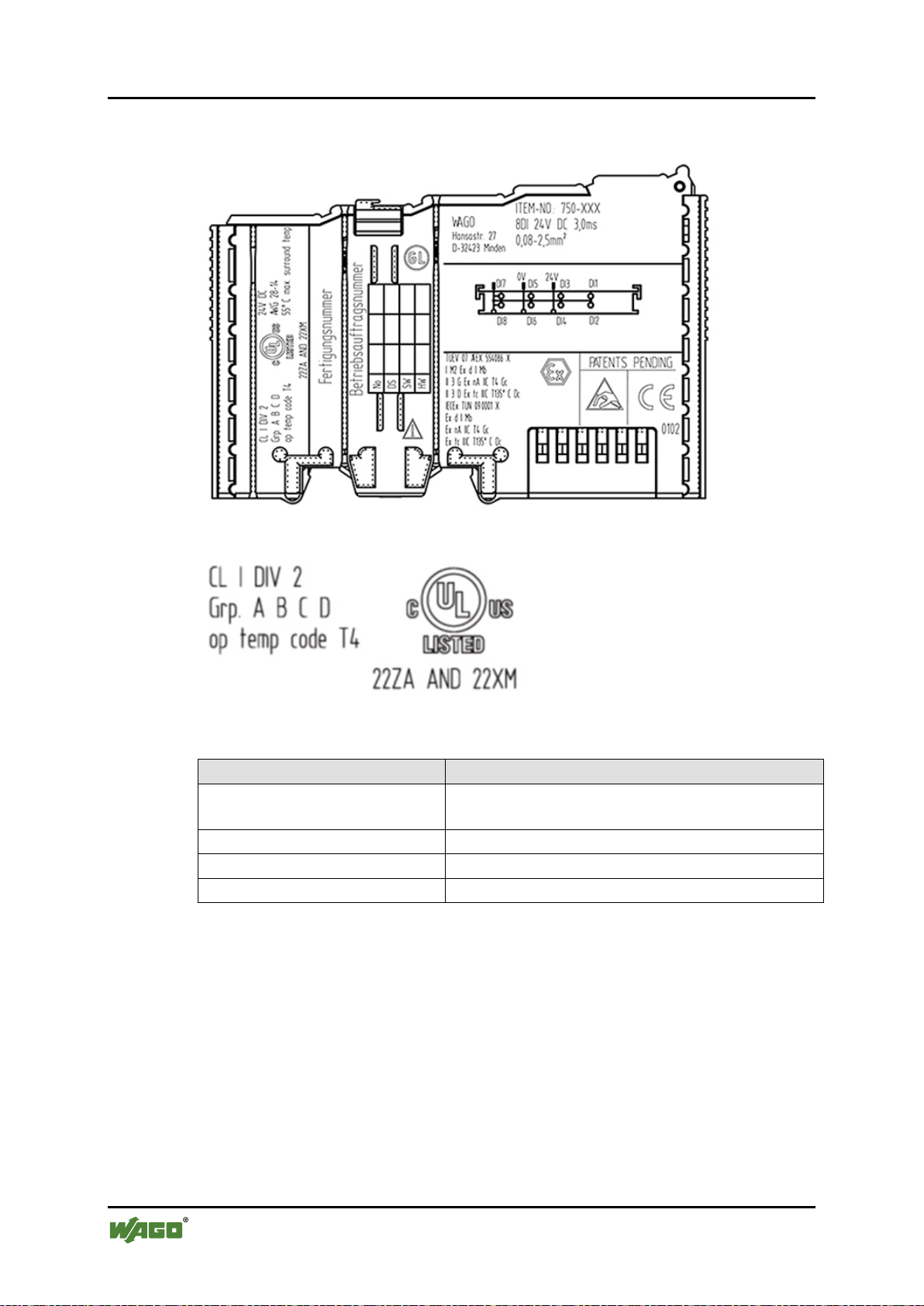

Conformity Marking
TÜV 07 ATEX 554086 X
I M2 Ex d I Mb
II 3 D Ex tc IIIC T135°C Dc
Ambient temperature range:
0 °C ≤ T
a
≤ +60 °C
IECEx TUN 09.0001 X
Ex d I Mb
Ex tc IIIC T135°C Dc
Ambient temperature range:
0 °C ≤ Ta ≤ +60 °C
CULUS
ANSI/ISA 12.12.01
Class I, Div2 ABCD T4
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
3.7 Approvals
More Information about Approvals
Detailed references to the approvals are listed in the document "Overview
Approvals WAGO-I/O-SYSTEM 750", which you can find via the internet
under: www.wago.com Documentation WAGO-I/O-SYSTEM 750
System Description.
The following approvals have been granted to 750-1418 I/O modules:
CULUS
UL508
The following Ex approvals have been granted to 750-1418 I/O modules:
II 3 G Ex nA IIC T4 Gc
Ex nA IIC T4 Gc
Manual
Version 1.1.0
The following ship approvals have been granted to 750-1418 I/O modules:
ABS (American Bureau of Shipping)
Federal Maritime and Hydrographic Agency
BV (Bureau Veritas)
DNV (Det Norske Veritas) Class B
24 Device Description WAGO-I/O-SYST EM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
GL (Germanischer Lloyd) Cat. A, B, C, D (EMC 2)
KR (Korean Register of Shipping)
LR (Lloyd’s Register) Env. 1, 2, 3, 4
NKK (Nippon Kaiji Kyokai)
PRS (Polski Rejestr Statków)
RINA (Registro Italiano Navale)
3.8 Standards and Guidelines
750-1418 I/O modules meet the following requirements on emission and
immunity of interference:
EMC CE-Emission of interference acc. to EN 61000-6-3: 2007
EMC CE-Immunity to interference acc. to EN 61000-6-2: 2005
EMC marine applications-Emission
of interference acc. to Germanischer Lloyd (2003)
EMC marine applications-Immunity
to interference acc. to Germanischer Lloyd (2003)
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Mounting 25
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
4 Mounting
4.1 Mounting Sequence
All system components can be snapped directly on a carrier rail in accordance
with the European standard EN 50022 (DIN 35).
The reliable positioning and connection is made using a tongue and groove
system. Due to the automatic locking, the individual components are securely
seated on the rail after installation.
Starting with the coupler/controller, the I/O modules are mounted adjacent to each
other according to the project design. Errors in the design of the node in terms of
the potential groups (connection via the power contacts) are recognized, as the I/O
modules with power contacts (male contacts) cannot be linked to I/O modules
with fewer power contacts.
Risk of injury due to sharp-edged male contacts!
The male contacts are sharp-edged. Handle the module carefully to prevent injury.
Connect the I/O modules in the required order!
Never plug I/O modules from the direction of the end terminal. A ground wire
power contact, which is inserted into a terminal without contacts, e.g. a 4-channel
digital input module, has a decreased air and creepage distance to the neighboring
contact in the example DI4.
Assemble the I/O modules in rows only if the grooves are open!
Please take into consideration that some I/O modules have no or only a few power
jumper contacts. The design of some modules does not allow them to be
physically assembled in rows, as the grooves for the male contacts are closed at
the top.
Don't forget the end module!
Always plug an end module 750-600 onto the end of the fieldbus node! You must
always use an end module at all fieldbus nodes with the WAGO I/O System 750
fieldbus couplers/controllers to guarantee proper data transfer.
Manual
Version 1.1.0
26 Mounting WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
4.2 Inserting and Removing De vices

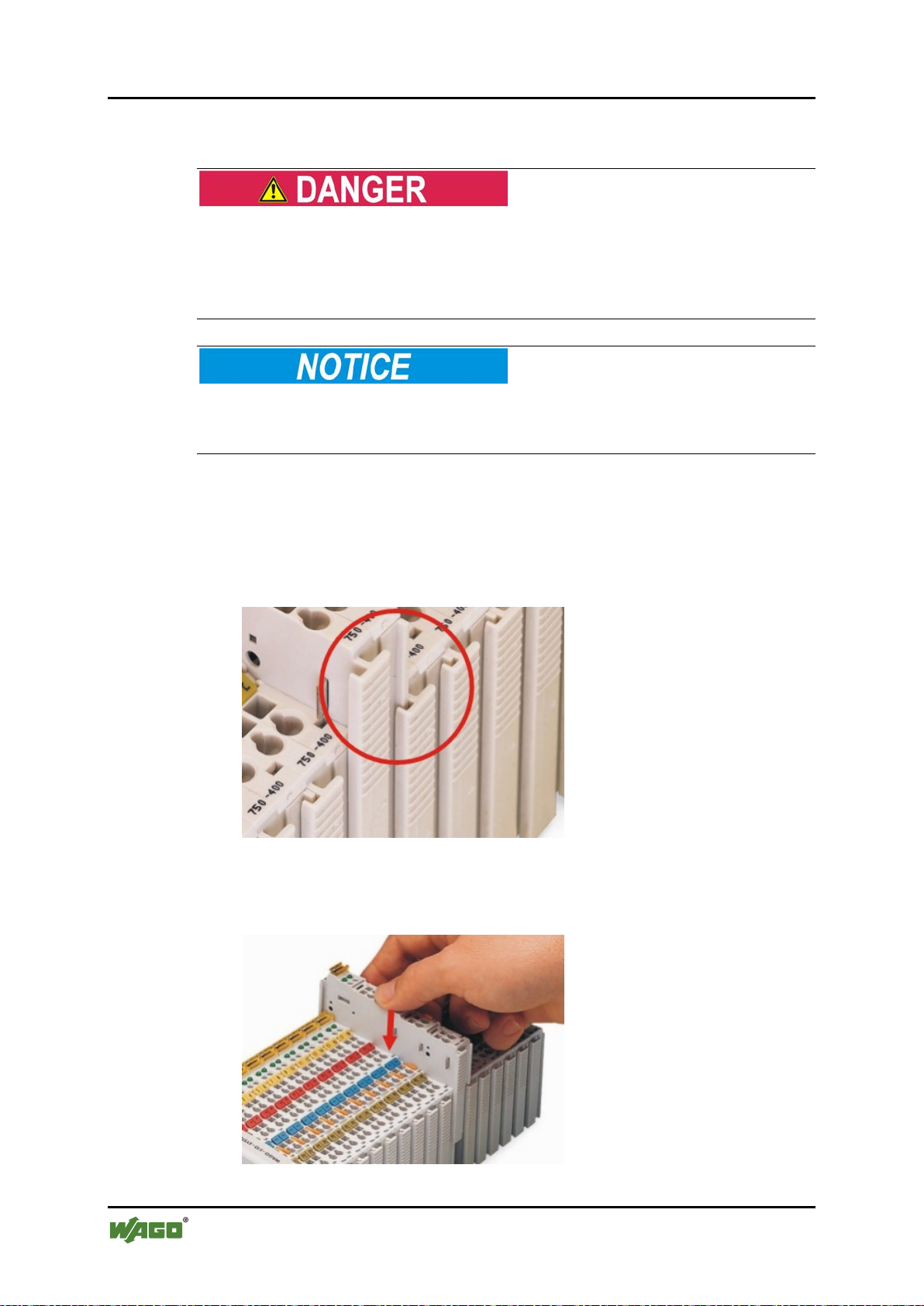

Use caution when interrupting the PE!
Make sure that people or equipment are not placed at risk when removing an I/O
module and the associated PE interruption. To prevent interruptions, provide ring
feeding of the ground conductor, see section "Grounding/Ground Conductor" in
manual "System Description WAGO-I/O-SYSTEM 750".
Perform work on devices only if the system is de-energized!
Working on devices when the system is energized can damage the devices.
Therefore, turn off the power supply before working on the devices.
4.2.1 Inserting I/O Module
1. Position the I/O module so that the tongue and groove joints to the fieldbus
coupler/controller or to the previous or possibly subsequent I/O module are
engaged.
Figure 7: Insert I/O module
2. Press the I/O module into the assembly until the I/O module snaps into the
carrier rail.
Figure 8: Snap the I/O mo dule into place
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Mounting 27
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
With the I/O module snapped in place, the electrical connections for the data
contacts and power contacts (if any) to the fieldbus coupler/controller or to the
previous or possibly subsequent I/O module are established.

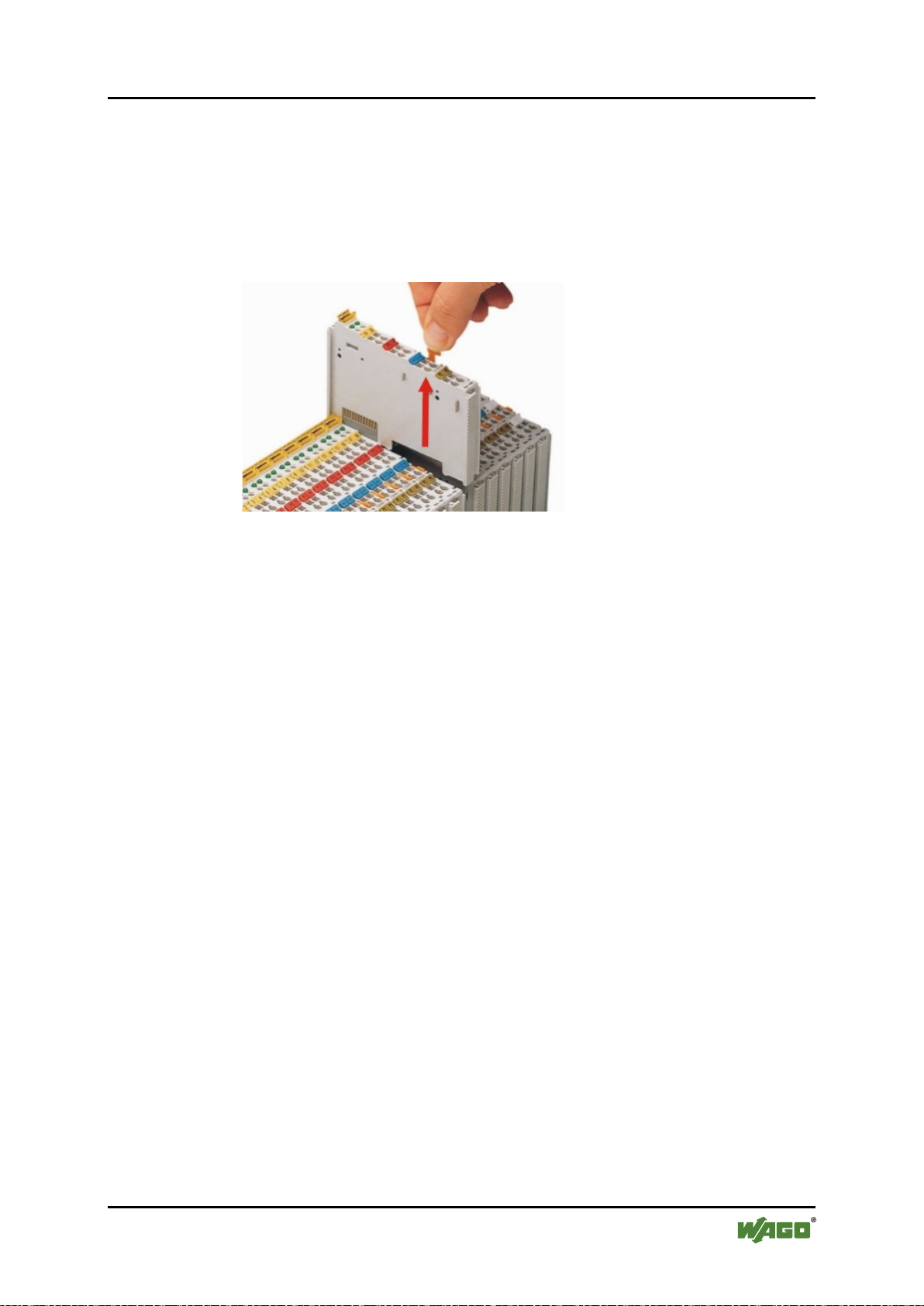

4.2.2 Removing the I/O Module
1. Remove the I/O module from the assembly by pulling the release tab.
Figure 9: Removing the I /O module
Electrical connections for data or power contacts are disconnected when removing
the I/O module.
Manual
Version 1.1.0
28 Connect Devices WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
5 Connect Devices
®
6 Connecting a conductor to the CAGE CLAMP
S
The WAGO CAGE CLAMP® S connection is appropriate for solid, stranded and
finely stranded conductors.
Only connect one conductor to each CAGE CLAMP® S connection!
Only one conductor may be connected to each CAGE CLAMP® S connection.
Do not connect more than one conductor at one single connection!
If more than one conductor must be routed to one connection, these must be
connected in an up-circuit wiring assembly, for example using WAGO feedthrough terminals.
Terminate both solid and stranded or ferruled conductors by simply pushing them
in - no tool required. For all other types of conductors, CAGE CLAMP® S must
be opened for connection with an operating tool with a 2.5 mm blade (order no.
210-719).
1. To open the CAGE CLAMP® S insert the actuating tool into the opening
above the connection.
2. Insert the conductor into the corresponding connection opening.
3. To close the CAGE CLAMP® S simply remove the tool - the conductor is
then clamped firmly in place.
Figure 10: Connecting a conductor to a CAGE CLAMP
Manual
Version 1.1.0
®
S
WAGO-I/O-SYSTEM 750 Process Image 29
Table 12: Input bits
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
DI 8
DI 7
DI 6
DI 5
DI 4
DI 3
DI 2
DI 1
DI 1
Signal state DI 1 – Digital input channel 1
DI 2
Signal state DI 2 – Digital input channel 2
DI 3
Signal state DI 3 – Digital input channel 3
DI 4
Signal state DI 4 – Digital input channel 4
DI 5
Signal state DI 5 – Digital input channel 5
DI 6
Signal state DI 6 – Digital input channel 6
DI 7
Signal state DI 7 – Digital input channel 7
DI 8
Signal state DI 8 – Digital input channel 8
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
7 Process Image
Manual
Version 1.1.0
30 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8 Use in Hazardou s E nvironments
The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in
Zone 2 hazardous areas.
The following sections include both the general identification of components
(devices) and the installation regulations to be observed. The individual
subsections of the "Installation Regulations" section must be taken into account if
the I/O module has the required approval or is subject to the range of application
of the ATEX directive.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 31
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.1 Marking Configuration Examples
8.1.1 Marking for Europe according to ATEX and IEC-Ex
Figure 11: Side marking example for approved I/O modules according to ATEX and IECEx
Figure 12: Printing Text detail – Marking example for approved I/O modules according to ATEX
and IECEx.
Manual
Version 1.1.0
32 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
Table 13: Description of marking example for approved I/O modules according to ATEX and
IECEx
Printing on Text
Description
TÜV 07 ATEX 554086 X
IECEx TUN 09.0001 X
Approving authority and certificate numbers
Dust
II
Equipment group: All except mining
3D
Category 3 (Zone 22)
Ex
Explosion protection mark
tc Dc
Type of protection and equipment protection
level (EPL):protection by enclosure
IIIC
Explosion group of dust
T 135°C
Max. surface temperature of the enclosure
(without a dust layer)
Mining
I
Equipment group: Mining
M2
Category: High level of protection
Ex
Explosion protection mark
d Mb
Type of protection and equipment protection
level (EPL): Flameproof enclosure
I
Explosion group for electrical equipment for
mines susceptible to firedamp
Gases
II
Equipment group: All except mining
3G
Category 3 (Zone 2)
Ex
Explosion protection mark
nA Gc
Type of protection and equipment protection
level (EPL): Non-sparking equipment
nC Gc
Type of protection and equipment protection
interior
IIC
Explosion group of gas and vapours
T4
Temperature class: Max. surface temperature
135°C
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Manual
Version 1.1.0
level (EPL): Sparking apparatus with protected
contacts. A device which is so constructed that
the external atmosphere cannot gain access to the
WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 33
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Figure 13: Side marking example for approved Ex i I/O modules according to ATEX and IECEx.
Figure 14: Text de ta il – Marking example for approved Ex i I/O modules according to ATEX and
IECEx.
Manual
Version 1.1.0
34 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
Table 14: Description of marking example for approved Ex i I/O modules according to ATEX and
IECEx
Inscription text
Description
TÜV 07 ATEX 554086 X
IECEx TUN 12.0039 X
Approving authority and certificate numbers
Dust
II
Equipment group: All except mining
3(1)D
Category 3 (Zone 22) equipment containing a safety
device for a category 1 (Zone 20) equipment
3(2)D
Category 3 (Zone 22) equipment containing a safety
device for a category 2 (Zone 21) equipment
Ex
Explosion protection mark
tc Dc
Type of protection and equipment protection level
(EPL): protection by enclosure
[ia Da]
Type of protection and equipment protection level
circuits for use in Zone 20
[ib Db]
Type of protection and equipment protection level
circuits for use in Zone 21
IIIC
Explosion group of dust
T 135°C
Max. surface temperature of the enclosure (without a
dust layer)
Mining
I
Equipment Group: Mining
M2 (M1)
Category: High level of protection with electrical
circuits which present a very high level of protection
Ex d Mb
Explosion protection mark with Type of protection
enclosure
[ia Ma]
Type of protection and equipment protection level
electrical circuits
I Explosion group for electrical equipment for mines
susceptible to firedamp
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
IECEx TUN 09.0001X
TÜV 12 ATEX 106032 X
(EPL): associated apparatus with intrinsic safety
(EPL): associated apparatus with intrinsic safety
and equipment protection level (EPL): Flameproof
(EPL): associated apparatus with intrinsic safety
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 35
Table 14: Description of marking example for approved Ex i I/O modules according to ATEX and
IECEx
Gases
II
Equipment group: All except mining
3(1)G
Category 3 (Zone 2) equipment containing a safety
device for a category 1 (Zone 0) equipment
3(2)G
Category 3 (Zone 2) equipment containing a safety
device for a category 2 (Zone 1) equipment
Ex
Explosion protection mark
nA Gc
Type of protection and equipment protection level
(EPL): Non-sparking equipment
[ia Ga]
Type of protection and equipment protection level
circuits for use in Zone 0
[ia Gb]
Type of protection and equipment protection level
circuits for use in Zone 1
IIC
Explosion group of gas and vapours
T4
Temperature class: Max. surface temperature 135°C
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
(EPL): associated apparatus with intrinsic safety
(EPL): associated apparatus with intrinsic safety
Manual
Version 1.1.0
36 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
Table 15: Description of marking example for approved I/O modules according to NEC 500
Printing on Text
Description
CL I
Explosion protection group (condition of use
category)
DIV 2
Area of application
Grp. ABCD
Explosion group (gas group)
Op temp code T4
Temperature class
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.1.2 Marking for America according to NEC 500
Figure 15: Side marking example for I/O modules according to NEC 500
Figure 16: Text detail – Marking example for approved I/O modules according to NEC 500
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 37
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2 Installation Regulations
For the installation and operation of electrical equipment in hazardous areas, the
valid national and international rules and regulations which are applicable at the
installation location must be carefully followed.
Manual
Version 1.1.0
38 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2.1 Special conditions for safe use (ATEX Certificate TÜV 07 ATEX 554086 X)
1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus Independent
I/O Modules WAGO-I/O-SYSTEM 750-*** shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) EN 60079-0, EN 60079-11, EN 60079-15 and EN 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to EN 60079-0
and EN 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExNB.
2. Measures have to be taken outside of the device that the rating voltage is not
being exceeded of more than 40 % because of transient disturbances.
3. Dip-switches, binary-switches and potentiometers, connected to the module
may only be actuated when explosive atmosphere can be excluded.
4. The connecting and disconnecting of the non-intrinsically safe circuits is
only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.
This is although and in particular valid for the interfaces “Memory-Card”,
“USB”, “Fieldbus connection”, “Configuration and programming interface”,
“antenna socket”, “D-Sub”, “DVI-port” and the “Ethernet interface”. These
interfaces are not energy limited or intrinsically safe circuits. An operating
of those circuits is in the behalf of the operator.
5. For the types 750-606, 750-625/000-001, 750-487/003-000, 750-484 and
750-633 the following shall be considered: The Interface circuits shall be
limited to overvoltage category I/II/III (non mains/mains circuits) as defined
in EN 60664-1.
6. For replaceable fuses the following shall be considered: Do not remove or
replace the fuse when the apparatus is energized.
7. The following warnings shall be placed nearby the unit:
WARNING – DO NOT REMOVE OR REPLACE FUSE WHEN
ENERGIZED
WARNING – DO NOT SEPARATE WHEN ENERGIZED
WARNING – SEPARATE ONLY IN A NON-HAZARDOUS AREA
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 39
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2.2 Special conditions for safe use (ATEX Certificate TÜV 12 ATEX 106032 X)
1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus Independent
I/O Modules WAGO-I/O-SYSTEM 750-*** Ex i shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) EN 60079-0, EN 60079-11, EN 60079-15 and EN 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to EN 60079-0
and EN 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExNB.
2. Measures have to be taken outside of the device that the rating voltage is not
being exceeded of more than 40 % because of transient disturbances.
3. The connecting and disconnecting of the non-intrinsically safe circuits is
only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.
4. For the type the following shall be considered: The Interface circuits shall
be limited to overvoltage category I/II/III (non mains/mains circuits) as
defined in EN 60664-1.
Manual
Version 1.1.0
40 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2.3 Special conditions for s af e use (I E C-Ex Cert ificate TUN
09.0001 X)
1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus Independent
I/O Modules WAGO-I/O-SYSTEM 750-*** shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) IEC 60079-0, IEC 60079-11, IEC 60079-15 and IEC 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to IEC 60079-0
and IEC 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExCB.
2. Measures have to be taken outside of the device that the rating voltage is not
being exceeded of more than 40 % because of transient disturbances.
3. DIP-switches, binary-switches and potentiometers, connected to the module
may only be actuated when explosive atmosphere can be excluded.
4. The connecting and disconnecting of the non-intrinsically safe circuits is
only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.
This is although and in particular valid for the interfaces “Memory-Card”,
“USB”, “Fieldbus connection”, “Configuration and programming interface”,
“antenna socket”, “D-Sub”, “DVI-port” and the “Ethernet interface”. These
interfaces are not energy limited or intrinsically safe circuits. An operating
of those circuits is in the behalf of the operator.
5. For the types 750-606, 750-625/000-001, 750-487/003-000, 750-484 and
750-633 the following shall be considered: The Interface circuits shall be
limited to overvoltage category I/II/III (non mains/mains circuits) as defined
in IEC 60664-1.
6. For replaceable fuses the following shall be considered: Do not remove or
replace the fuse when the apparatus is energized.
7. The following warnings shall be placed nearby the unit:
WARNING – DO NOT REMOVE OR REPLACE FUSE WHEN
ENERGIZED
WARNING – DO NOT SEPARATE WHEN ENERGIZED
WARNING – SEPARATE ONLY IN A NON-HAZARDOUS AREA
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 Use in Hazardous Environments 41
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2.4 Special conditions for s af e use (I E C-Ex Certificate IECEx TUN 12.0039 X)
1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the Field bus independent
I/O Modules WAGO-I/O-SYSTEM 750-*** Ex i shall be erected in an
enclosure that fulfils the requirements of the applicable standards (see the
marking) IEC 60079-0, IEC 60079-11, IEC 60079-15, IEC 60079-31.
For use as group I electrical apparatus M2 the apparatus shall be erected in
an enclosure that ensures a sufficient protection according to IEC 60079-0
and IEC 60079-1 and the degree of protection IP64.
The compliance of these requirements and the correct installation into an
enclosure or a control cabinet of the devices shall be certified by an ExCB.
2. Measures have to be taken outside of the device that the rating voltage is not
being exceeded of more than 40 % because of transient disturbances.
3. The connecting and disconnecting of the non-intrinsically safe circuits is
only permitted during installation, for maintenance or for repair purposes.
The temporal coincidence of explosion hazardous atmosphere and
installation, maintenance resp. repair purposes shall be excluded.
4. For the type the following shall be considered: The Interface circuits shall
be limited to overvoltage category I/II/III (non mains/mains circuits) as
defined in IEC 60664-1.
Manual
Version 1.1.0
42 Use in Hazardous Environments WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
8.2.5 ANSI/ISA 12.12.01
A. “This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D
or non-hazardous locations only.”
B. “This equipment is to be fitted within tool-secured enclosures only.”
C. “WARNING Explosion hazard - substitution of components may impair
suitability for Class I, Div. 2.”
D. “WARNING – Do not disconnect equipment unless power has been
switched off or the area is known to be non-hazardous” has to be placed
near each operator accessible connector and fuse holder.
E. When a fuse is provided, the following information shall be provided: “A
switch suitable for the location where the equipment is installed shall be
provided to remove the power from the fuse.”
F. For devices with EtherCAT/Ethernet connectors “Only for use in LAN, not
for connection to telecommunication circuits.”
G. “WARNING - Use Module 750-642 only with antenna module 758-910.”
H. For Couplers/Controllers and Economy bus modules only: The instructions
shall contain the following: “The configuration interface Service connector
is for temporary connection only. Do not connect or disconnect unless the
area is known to be non-hazardous. Connection or disconnection in an
explosive atmosphere could result in an explosion.”
I. Modules containing fuses only: “WARNING - Devices containing fuses
must not be fitted into circuits subject to over loads, e.g. motor circuits.”
J. Modules containing SD card reader sockets only: “WARNING - Do not
connect or disconnect SD-Card while circuit is live unless the area is known
to be free of ignitable concentrations of flammable gases or vapors.”
Additional Information
Proof of certification is available on request. Also take note of the information
given on the module technical information sheet. The Instruction Manual,
containing these special conditions for safe use, must be readily available to the
user.
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 List of Figures 43
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
List of Figures
Figure 1: View ....................................................................................................... 14
Figure 2: Data contacts .......................................................................................... 15
Figure 3: Power jumper contacts ........................................................................... 16
Figure 4: Connections ........................................................................................... 18
Figure 5: Display elements .................................................................................... 19
Figure 6: Schematic diagram ................................................................................. 20
Figure 7: Insert I/O module ................................................................................... 26
Figure 8: Snap the I/O module into place .............................................................. 26
Figure 9: Removing the I/O module ...................................................................... 27
Figure 10: Connecting a conductor to a CAGE CLAMP® S ................................. 28
Figure 11: Side marking example for approved I/O modules according to ATEX
and IECEx .................................................................................................... 31
Figure 12: Printing Text detail – Marking example for approved I/O modules
according to ATEX and IECEx. .................................................................. 31
Figure 13: Side marking example for approved Ex i I/O modules according to
ATEX and IECEx. ....................................................................................... 33
Figure 14: Text detail – Marking example for approved Ex i I/O modules
according to ATEX and IECEx. .................................................................. 33
Figure 15: Side marking example for I/O modules according to NEC 500 .......... 36
Figure 16: Text detail – Marking example for approved I/O modules according to
NEC 500....................................................................................................... 36
Manual
Version 1.1.0
44 List of Tables WAGO-I/O-SYSTEM 750
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
List of Tables
Table 1: Number notation ........................................................................................ 8
Table 2: Font conventions ....................................................................................... 8
Table 3: Caption acc. to figure “View” ................................................................. 14
Table 4: Caption acc. to view “Power jumper contacts” ....................................... 16
Table 5: Connections ............................................................................................. 18
Table 6: Display elements ..................................................................................... 19
Table 7: Technical data device .............................................................................. 21
Table 8: Technical data communication ............................................................... 21
Table 9: Technical data supply .............................................................................. 21
Table 10: Technical data inputs ............................................................................. 21
Table 11: Technical Data Wire Connection .......................................................... 22
Table 12: Input bits ................................................................................................ 29
Table 13: Description of marking example for approved I/O modules according to
ATEX and IECEx ........................................................................................ 32
Table 14: Description of marking example for approved Ex i I/O modules
according to ATEX and IECEx ................................................................... 34
Table 15: Description of marking example for approved I/O modules according to
NEC 500....................................................................................................... 36
Manual
Version 1.1.0
WAGO-I/O-SYSTEM 750 45
750-1418 8DI 24V DC 0.2ms, low-side switching, 2-conductor
Manual
Version 1.1.0
WAGO Kontakttechnik GmbH & Co. KG
Postfach 2880 • D-32385 Minden
Hansastraße 27 • D-32423 Minden
Phone: +49/5 71/8 87 – 0
Fax: +49/5 71/8 87 – 1 69
E-Mail: info@wago.com
Internet: http://www.wago.com
