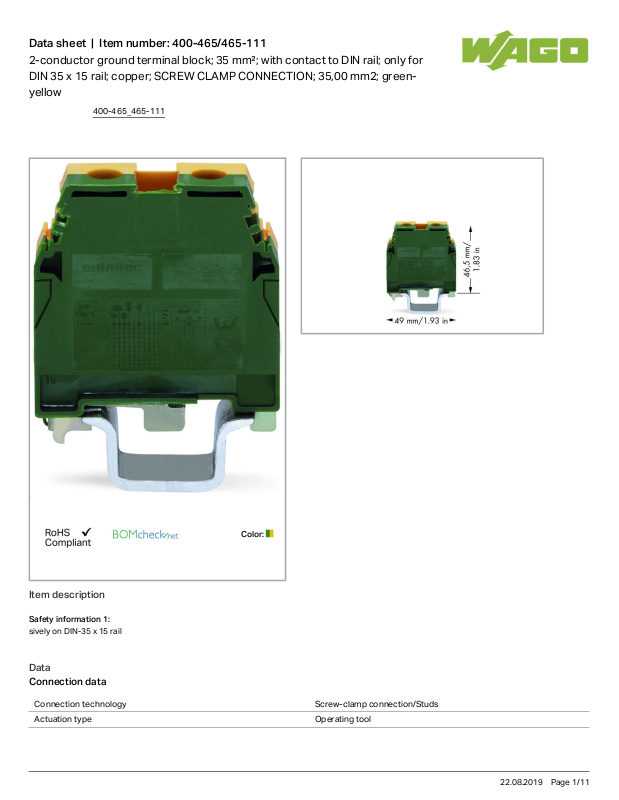

Wago 400-465/465-111 Data Sheet

Data sheet | Item number:400-465/465-111
2-conductor ground terminal block; 35 mm²; with contact to DIN rail; only for DIN 35 x 15 rail; copper; SCREW CLAMP CONNECTION; 35,00 mm2; green­yellow
Item description
Safety information 1:
sively on DIN-35 x 15 rail
Data
Connection data
Connection technology Screw-clamp connection/Studs
Actuation type Operating tool
400-465_465-111
22.08.2019Page /1 11
Data sheet | Item number:400-465/465-111
Connectable conductor materials Copper
Solid conductor 16 35mm²/ 6 2AWG
Strip length 17 19mm/ 0.67 0.75inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Side-entry wiring
Geometrical Data
Width 16mm/ 0.63inch
Height from upper-edge of DIN-35 rail 46.5mm/ 1.831inch
Depth 49mm/ 1.929inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Side marking
Material Data
Color green-yellow
Weight 61.73g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin FR
GTIN 4017332525107
Customs Tariff No. 85369010000
Compatible products
Protective Warning Marker
Item no.: 400-463/463-431
Protective warning marker; with high-voltage symbol; for 4 terminal blocks; yellow
400-463
/463-431
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-113
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; white
2009-113
400-465_465-111
22.08.2019Page /2 11
Data sheet | Item number:400-465/465-111
Item no.: 2009-113/000-002
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; yellow
2009-113
/000-002
Item no.: 2009-113/000-005
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; red
2009-113
/000-005
Item no.: 2009-113/000-006
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; blue
2009-113
/000-006
Item no.: 2009-113/000-007
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; gray
2009-113
/000-007
Item no.: 2009-113/000-012
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; orange
2009-113
/000-012
Item no.: 2009-113/000-017
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; light green
2009-113
/000-017
Item no.: 2009-113/000-023
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; green
2009-113
/000-023
Item no.: 2009-113/000-024
WMB-Inline; for Smart Printer; on reel; plain; snap-on type; violet
2009-113
/000-024
Item no.: 2009-114
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white
2009-114
Item no.: 2009-114/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow
2009-114
/000-002
Item no.: 2009-114/000-005
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; red
2009-114
/000-005
Item no.: 2009-114/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; blue
2009-114
/000-006
Item no.: 2009-114/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; gray
2009-114
/000-007
Item no.: 2009-114/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; orange
2009-114
/000-012
Item no.: 2009-114/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; green
2009-114
/000-023
400-465_465-111
22.08.2019Page /3 11
Data sheet | Item number:400-465/465-111
Item no.: 2009-114/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; violet
2009-114
/000-024
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-135
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-135
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
400-465_465-111
22.08.2019Page /4 11
