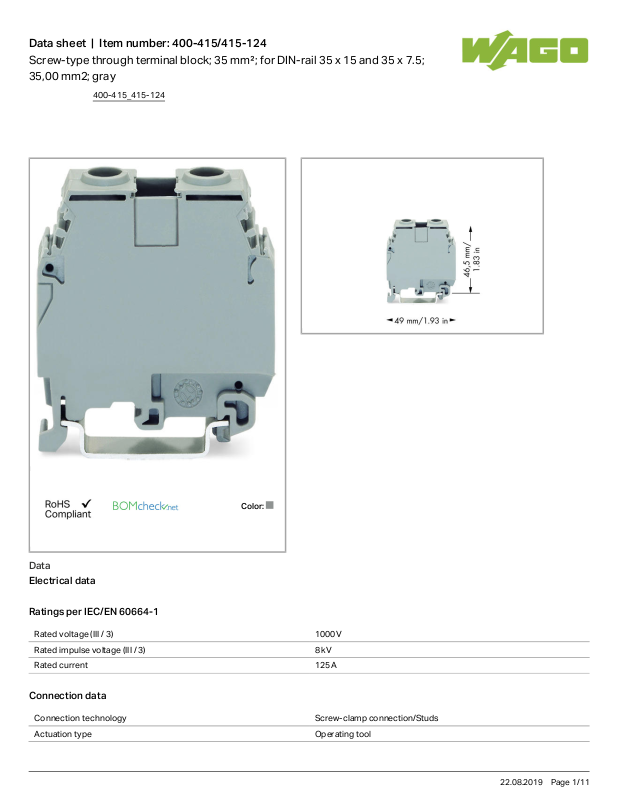

Wago 400-415/415-124 Data Sheet

Data sheet | Item number:400-415/415-124

Screw-type through terminal block; 35 mm²; for DIN-rail 35 x 15 and 35 x 7.5;
35,00 mm2; gray

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V

Rated impulse voltage (III / 3) 8 kV

Rated current 125 A

Connection data

Connection technology Screw-clamp connection/Studs

Actuation type Operating tool

400-415_415-124

22.08.2019Page /1 11

Data sheet | Item number:400-415/415-124

Connectable conductor materials Copper

Solid conductor 6 50mm²/ 10 1/0AWG

Fine-stranded conductor 10 35mm²/ 6 10AWG

Strip length 17 19mm/ 0.67 0.75inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Side-entry wiring

Geometrical Data

Width 16mm/ 0.63inch

Height from upper-edge of DIN-35 rail 46.5mm/ 1.831inch

Depth 49mm/ 1.929inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Weight 32.89g

Commercial data

Country of origin DE

GTIN 4055143765282

Customs Tariff No. 85369010000

Compatible products

Protective Warning Marker

Item no.: 400-463/463-431

Protective warning marker; with high-voltage symbol; for 4 terminal blocks; yellow

400-463

/463-431

Marking accessories

Item no.: 2009-110

Marking strips; on reel; not stretchable; plain; snap-on type; white

2009-110

Item no.: 2009-113

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; white

2009-113

400-415_415-124

22.08.2019Page /2 11

Data sheet | Item number:400-415/415-124

Item no.: 2009-113/000-002

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; yellow

2009-113

/000-002

Item no.: 2009-113/000-005

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; red

2009-113

/000-005

Item no.: 2009-113/000-006

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; blue

2009-113

/000-006

Item no.: 2009-113/000-007

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; gray

2009-113

/000-007

Item no.: 2009-113/000-012

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; orange

2009-113

/000-012

Item no.: 2009-113/000-017

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; light green

2009-113

/000-017

Item no.: 2009-113/000-023

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; green

2009-113

/000-023

Item no.: 2009-113/000-024

WMB-Inline; for Smart Printer; on reel; plain; snap-on type; violet

2009-113

/000-024

Item no.: 2009-114

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white

2009-114

Item no.: 2009-114/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow

2009-114

/000-002

Item no.: 2009-114/000-005

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; red

2009-114

/000-005

Item no.: 2009-114/000-006

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; blue

2009-114

/000-006

Item no.: 2009-114/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; gray

2009-114

/000-007

Item no.: 2009-114/000-012

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; orange

2009-114

/000-012

Item no.: 2009-114/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; green

2009-114

/000-023

400-415_415-124

22.08.2019Page /3 11

Data sheet | Item number:400-415/415-124

Item no.: 2009-114/000-024

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; violet

2009-114

/000-024

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange

2009-115

/000-012

Item no.: 2009-115/000-017

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green

2009-115

/000-017

Item no.: 2009-115/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green

2009-115

/000-023

Item no.: 2009-115/000-024

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet

2009-115

/000-024

Item no.: 2009-135

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white

2009-135

Item no.: 2009-145

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white

2009-145

Item no.: 2009-145/000-002

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow

2009-145

/000-002

Item no.: 2009-145/000-005

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red

2009-145

/000-005

Item no.: 2009-145/000-006

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue

2009-145

/000-006

Item no.: 2009-145/000-007

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray

2009-145

/000-007

Item no.: 2009-145/000-012

Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange

2009-145

/000-012

400-415_415-124

22.08.2019Page /4 11
