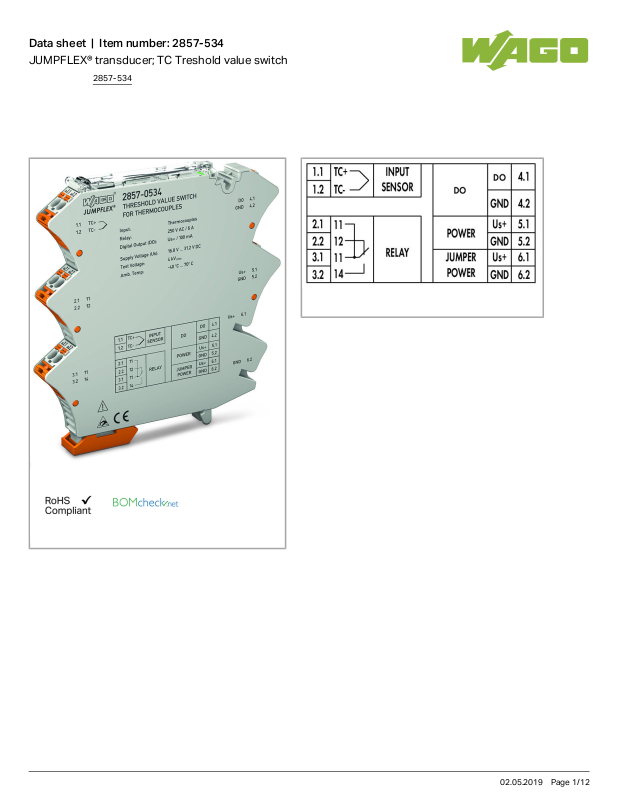

Data sheet | Item number:2857-534
JUMPFLEX® transducer; TC Treshold value switch
2857-534
02.05.2019Page /1 12
Page 2
Data sheet | Item number:2857-534
Item description
Short description:
WAGO's Thermocouple Threshold Value Switch for TC sensors monitors and reports signals of up to two switching thresholds.
Features:
Both digital signal output and relay with changeover contact react to configured measuring range limits (switching ON/OFF delay and
threshold value switch function configurable with up to two threshold values).
Adjustable software filter
Input/Output response simulation via configuration display
Safe 3-way isolation with 4 kV test voltage per EN 61140
Note:
Additional setting options via interface configuration software or interface configuration app
Data
Technical Data
Configuration
Configuration options DIP switches
Interface configuration software
Interface configuration app
Configuration display
2857-534
02.05.2019Page /2 12
Page 3
Data sheet | Item number:2857-534
Input
Input signal type TC sensors
Input – TC sensors
Sensor types (TC) Type J
Type K
Type E
Type N
Type R
Type S
Type T
Type B
Type C
Measurement range temperature (TC) -210 … 1200°C (Type J);-200 … 1372°C (Type K)
Cold junction compensation On/Off (Default: On)
Cold junction error 3 K (typ. 2 K )
Output – Digital
Max. switching voltage (DO) Supply voltage applied: -0.3 V
Max. continuous current (DO) 100mA (no internal restriction)
Number of switching tresholds (DO) 1 or 2 (adjustable)
Configurable rise/fall delay time (DO) 0 … 60s (via software)
Output – Relay
Dielectric strength open contact (AC, 1 min) 1 kV
rms
Number of changeover/switchover contacts 1
Contact material (relay) AgNi + Au
Max. switching voltage AC250V
Limiting continuous current (relay; terminal block assembly) 6A (≤ 60 °C);3A (60 … 70 °C)
Dielectric strength open contact (AC, 1 min) 1kVrms
Pull-in time (typ.) 8 ms
Drop-out time (typ.) 4 ms
Bounce time (typ) 8 ms
Number of switching tresholds (relay) 1 or 2 (adjustable)
Configurable rise/fall delay time (relay) 0 … 60s (via software)
Signal processing
Software filter; adjustable moving mean value (filtering level: 30)
Hysteresis adjustable via DIP switch or software
Step response typ. 60ms (cold junction compensation off);360ms (cold junction
2857-534
02.05.2019Page /3 12
Page 4
Data sheet | Item number:2857-534
compensation on)
Measurement error
Transmission error max. ±1 K
Temperature coefficient ≤ 0.01 %/K
Power supply
Type of power supply 24 VDC
Nominal supply voltage U
S
DC24V
Supply voltage range ±30%
Current consumption at supply voltage ≤40mA(+ I )
DO
Safety and protection:
Test voltage (input/output/supply) AC 4kV;50Hz;1min
Protection class IP20
Connection data
Connection technology
Push-in CAGE CLAMP
®
WAGO terminal
picoMAX 5.0
®
Solid conductor 0.2 … 2.5mm²/ 24 … 12AWG
Fine-stranded conductor 0.2 … 2.5mm²/ 24 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Geometrical Data
Width 12.5mm/ 0.492inch
Height from upper-edge of DIN-35 rail 107mm/ 4.213inch
Depth 110mm/ 4.331inch
Mechanical data
Type of mounting DIN-35 rail
Material Data
Fire load 0 MJ
Weight 105.8 g
Environmental Requirements
Surrounding air (operating) temperature -40 … 70°C
2857-534
02.05.2019Page /4 12
Page 5
Data sheet | Item number:2857-534
Surrounding air (storage) temperature -40 … 85°C
Standards and specifications
Conformity marking CE
EMC immunity to interference EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
EMC emission of interference EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
Standards/specifications EN 61010-1; EN 61373
Commercial data
Country of origin DE
GTIN 4055143242318
Customs Tariff No. 90303380900
