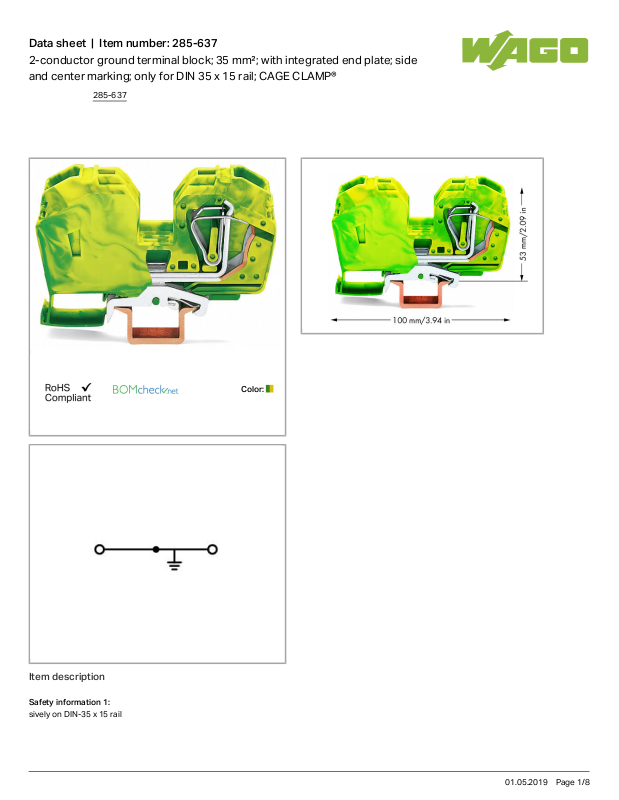

Wago 285-637 Data Sheet
Data sheet | Item number:285-637
2-conductor ground terminal block; 35 mm²; with integrated end plate; side
and center marking; only for DIN 35 x 15 rail; CAGE CLAMP®
Color:
Item description
Safety information 1:
sively on DIN-35 x 15 rail
285-637
01.05.2019Page /1 8
Data sheet | Item number:285-637
Data
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Nominal cross section 35mm²
Solid conductor 6 … 35mm²/ 8 … 2AWG
Fine-stranded conductor 6 … 35mm²/ 8 … 2AWG
Strip length 23mm/ 0.91inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 16mm/ 0.63inch
Height from upper-edge of DIN-35 rail 53mm/ 2.087inch
Depth 100mm/ 3.937inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 107.839g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin PL
GTIN 4045454218768
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Certificate
285-637
01.05.2019Page /2 8
Data sheet | Item number:285-637
Logo Approval Additional Approval Text name
AEx
Underwriters Laboratories Inc.
- E185892
sec. 4
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7707
CSA
DEKRA Certification B.V.
C22.2 1151144
CSA
DEKRA Certification B.V.
C22.2 No. 158 1151144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101911
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc.
UL 1059 E45172
285-637
01.05.2019Page /3 8
