Wago 285-635 Data Sheet

Data sheet | Item number:285-635

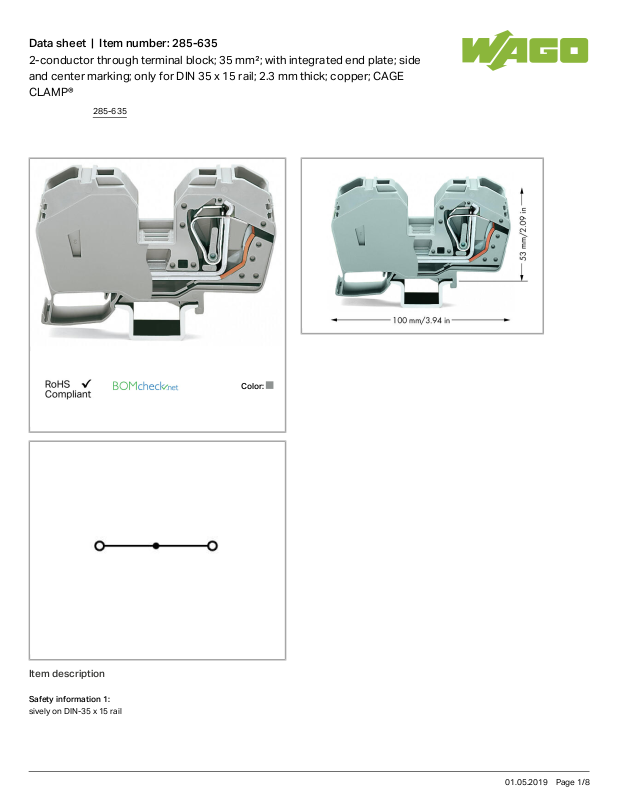

2-conductor through terminal block; 35 mm²; with integrated end plate; side and center marking; only for DIN 35 x 15 rail; 2.3 mm thick; copper; CAGE CLAMP®

Item description

Safety information 1:
sively on DIN-35 x 15 rail
285-635
01.05.2019Page /1 8
Data sheet | Item number:285-635
Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 1000 V
Rated impulse voltage (III / 3) 8 kV
Rated current 125 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Nominal cross section 35mm²
Solid conductor 6 … 35mm²/ 8 … 2AWG
Fine-stranded conductor 6 … 35mm²/ 8 … 2AWG
Strip length 23mm/ 0.91inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 16mm/ 0.63inch
Height from upper-edge of DIN-35 rail 53mm/ 2.087inch
Depth 100mm/ 3.937inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 1.078 MJ
Weight 87.349g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
285-635
01.05.2019Page /2 8
Data sheet | Item number:285-635
Country of origin PL
GTIN 4045454218713
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7707
CSA
DEKRA Certification B.V.
C22.2 1151144
CSA
DEKRA Certification B.V.
C22.2 No. 158 1151144
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
101911
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
Underwriters Laboratories Inc.
UL 1059 E45172
285-635
01.05.2019Page /3 8
