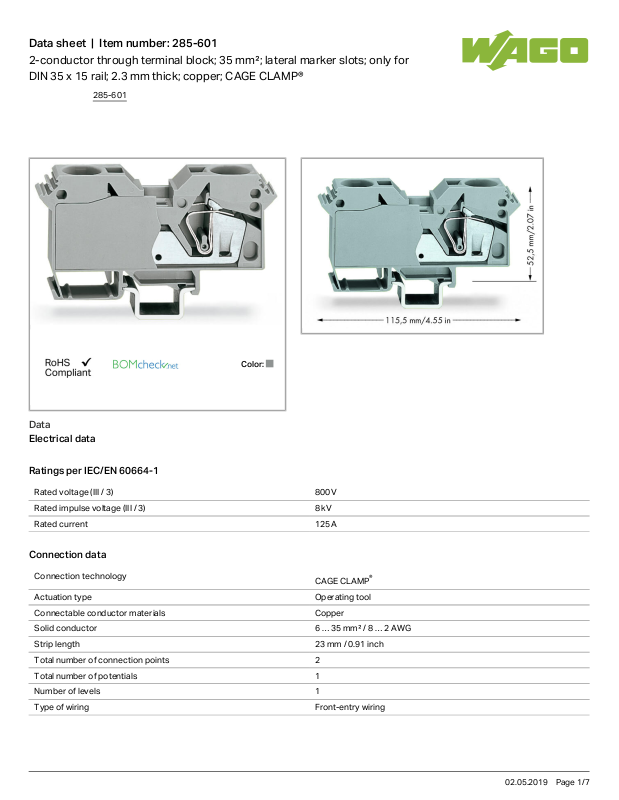

Wago 285-601 Data Sheet

Data sheet | Item number:285-601

2-conductor through terminal block; 35 mm²; lateral marker slots; only for
DIN 35 x 15 rail; 2.3 mm thick; copper; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 125 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 6 … 35mm²/ 8 … 2AWG

Strip length 23mm/ 0.91inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

285-601

02.05.2019Page /1 7

Data sheet | Item number:285-601

Geometrical Data

Width 16mm/ 0.63inch

Height from upper-edge of DIN-35 rail 52.5mm/ 2.067inch

Depth 115.5mm/ 4.547inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 1.162 MJ

Weight 131.18g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4045454115333

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7707

CSA

DEKRA Certification B.V.

C22.2 No. 158 1151144

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

101911

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

285-601

02.05.2019Page /2 7

Data sheet | Item number:285-601

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0

BV

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-012

285-601

02.05.2019Page /3 7
