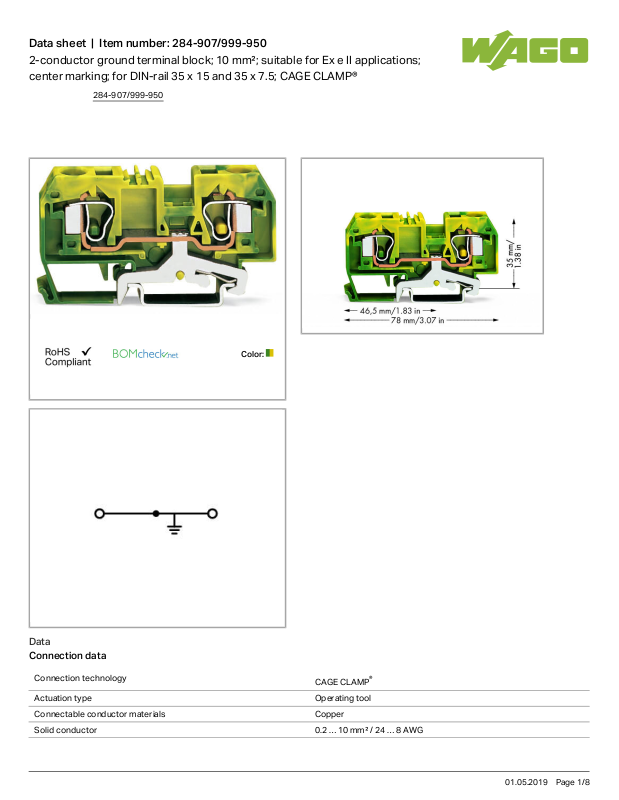

Wago 284-907/999-950 Data Sheet

Data sheet | Item number:284-907/999-950

2-conductor ground terminal block; 10 mm²; suitable for Ex e II applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 10mm²/ 24 … 8AWG

284-907/999-950

01.05.2019Page /1 8

Data sheet | Item number:284-907/999-950

Fine-stranded conductor 0.2 … 10mm²/ 24 … 8AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 35mm/ 1.378inch

Depth 78mm/ 3.071inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.327 MJ

Weight 31.58g

Commercial data

Country of origin DE

GTIN 4045454091910

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.1

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 98

ATEX
3133 U (II
2 G EEx e
II)

IECEx

IEC 60079 IECEx PTB

284-907/999-950

01.05.2019Page /2 8

Data sheet | Item number:284-907/999-950

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

14.0046U
(Ex e IIC
Gb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7379

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2178517.01

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172
