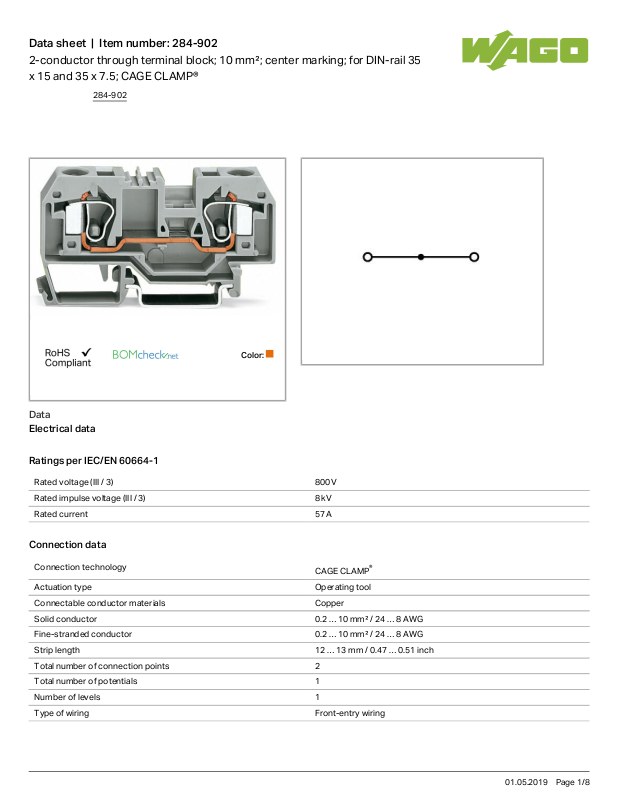

Data sheet | Item number:284-902
2-conductor through terminal block; 10 mm²; center marking; for DIN-rail 35
x 15 and 35 x 7.5; CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 57 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 10mm²/ 24 … 8AWG
Fine-stranded conductor 0.2 … 10mm²/ 24 … 8AWG
Strip length 12 … 13mm/ 0.47 … 0.51inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
284-902
01.05.2019Page /1 8
Data sheet | Item number:284-902
Geometrical Data
Width 10mm/ 0.394inch
Height from upper-edge of DIN-35 rail 35mm/ 1.378inch
Depth 78mm/ 3.071inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0.348 MJ
Weight 23.23g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918305754
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7379
CSA
DEKRA Certification B.V.
C22.2 No. 158 1536073
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2178517.01
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
284-902
01.05.2019Page /2 8
Data sheet | Item number:284-902
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
UL International Germany GmbH
UL 1059 E45172
Compatible products
End plate
Item no.: 284-325
End and intermediate plate; 2.5 mm thick
284-325
Item no.: 284-326
Separator plate; 2 mm thick; oversized
284-326
Item no.: 284-328
End and intermediate plate; 2.5 mm thick
284-328
Item no.: 284-329
Separator plate; 2 mm thick; oversized
284-329
Item no.: 284-330
284-902
01.05.2019Page /3 8
