Wago 284-601 Data Sheet

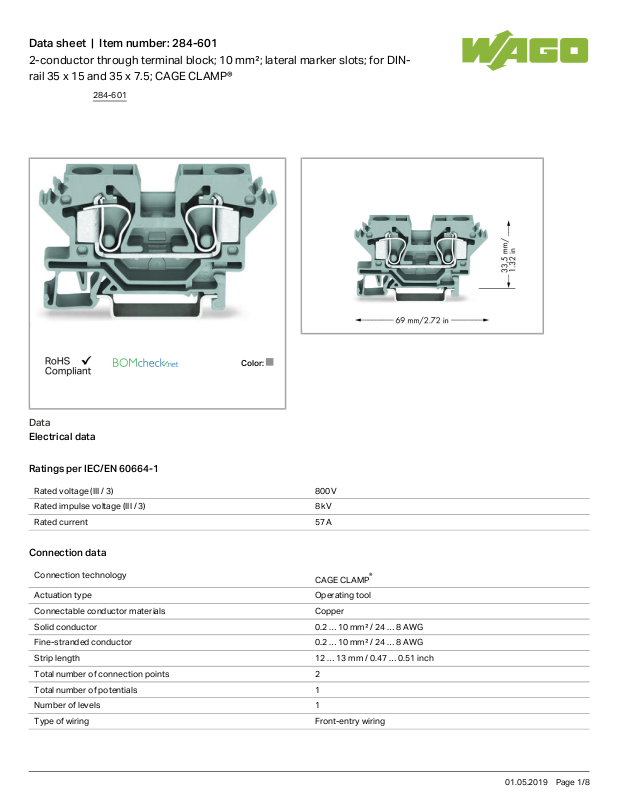

Data sheet | Item number:284-601

2-conductor through terminal block; 10 mm²; lateral marker slots; for DIN­rail 35 x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 57 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 10mm²/ 24 … 8AWG

Fine-stranded conductor 0.2 … 10mm²/ 24 … 8AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

284-601

01.05.2019Page /1 8

Data sheet | Item number:284-601

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 33.5mm/ 1.319inch

Depth 69mm/ 2.717inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.253 MJ

Weight 18.889g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4044918486361

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7379

CSA

DEKRA Certification B.V.

C22.2 No. 158 1536073

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2178517.01

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

284-601

01.05.2019Page /2 8

Data sheet | Item number:284-601

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

Compatible products

General accessories

Item no.: 249-105

Group marker carrier

249-105

Item no.: 284-400

Finger guard; touchproof cover protects unused conductor entries

284-400

Item no.: 709-310
B-type test plug module; modular; suitable for all WAGO 282 Series rail-mounted terminal blocks with
jumper slots

709-310

Item no.: 709-311
B-type spacer module; modular; e.g., for bridging commoned terminal blocks

709-311

Item no.: 709-312

284-601
