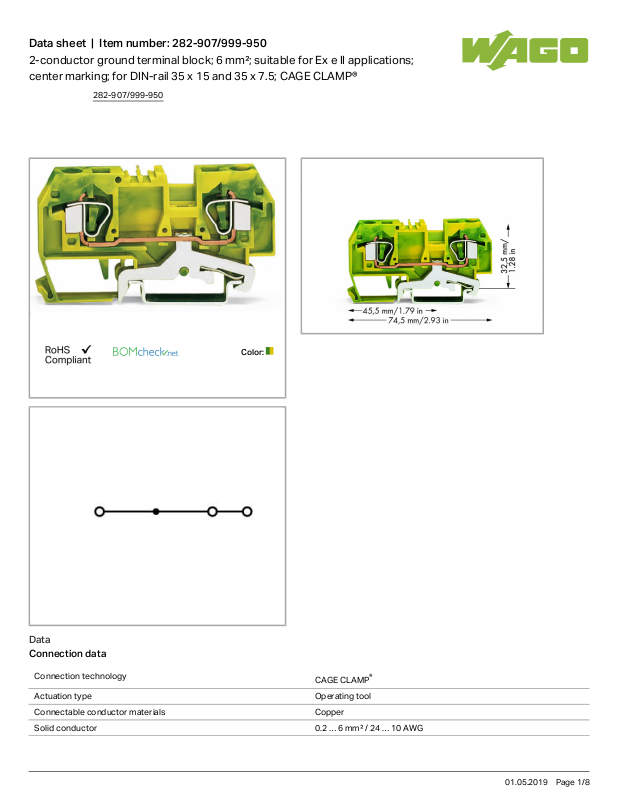

Data sheet | Item number:282-907/999-950
2-conductor ground terminal block; 6 mm²; suitable for Ex e II applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:
Data
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 6mm²/ 24 … 10AWG
282-907/999-950
01.05.2019Page /1 8
Data sheet | Item number:282-907/999-950
Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG
Strip length 12 … 13mm/ 0.47 … 0.51inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 8mm/ 0.315inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 74.5mm/ 2.933inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color green-yellow
Insulating material Polyamide 66 (PA 66)
Fire load 0.247 MJ
Weight 22.03g
Commercial data
Country of origin DE
GTIN 4044918472371
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.1
ATEx
Physikalisch Technische Bundesanstalt (PTB)
- PTB 98
ATEX
3131 U (II
2 G EEx e
II)
282-907/999-950
01.05.2019Page /2 8
Data sheet | Item number:282-907/999-950
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2195540.01
CCA
DEKRA Certification B.V.
IEC 60947 2195540.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7522
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
