Wago 282-904 Data Sheet

Download

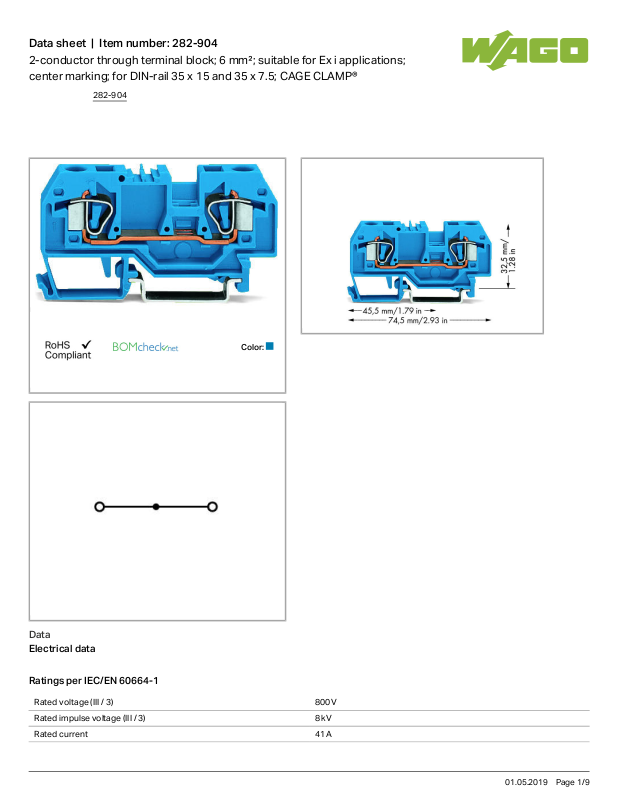

Data sheet | Item number:282-904
2-conductor through terminal block; 6 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 41 A
282-904
01.05.2019Page /1 9
Data sheet | Item number:282-904
Rated current 41 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 6mm²/ 24 … 10AWG
Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG
Strip length 12 … 13mm/ 0.47 … 0.51inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 74.5mm/ 2.933inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.267 MJ
Weight 15.816g

Commercial data

Country of origin DE
GTIN 4044918445887
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7522
282-904
01.05.2019Page /2 9
Data sheet | Item number:282-904
DEKRA Certification B.V. 7522
CCA
DEKRA Certification B.V.
EN 60947 2195540.01
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172
282-904
01.05.2019Page /3 9
Data sheet | Item number:282-904

Compatible products

assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-153
Cover; Type 1; suitable for cover carrier, type 1; 1 m long
709-153
ferrule
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266 Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-267 Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-267
End plate
Item no.: 209-191 Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
Item no.: 209-192 Separator for Ex e/Ex i applications; 3 mm thick; 125.5 mm wide
209-192
Item no.: 282-325 End and intermediate plate; 2.5 mm thick
282-325
Item no.: 282-326 Separator plate; 2 mm thick; oversized
282-326
Item no.: 282-328 End and intermediate plate; 2.5 mm thick
282-328
Item no.: 282-329 Separator plate; 2 mm thick; oversized
282-329
282-904
01.05.2019Page /4 9
Data sheet | Item number:282-904
Item no.: 282-357 Step-down cover plate; 1 mm thick; in connection with 2-conductor 282-901 terminal blocks
282-357
Item no.: 282-367 Step-down cover plate; 1 mm thick; in connection with 2-conductor 282-901 terminal blocks
282-367
check
Item no.: 209-170 Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs
209-170
tools
Item no.: 210-721 Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm
210-721
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 209-185 Adaptor
209-185
Item no.: 210-612 Marking strips; for self-marking; plain; Self-adhesive
210-612
Item no.: 793-501 WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
282-904
01.05.2019Page /5 9
Data sheet | Item number:282-904
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-014 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
282-904
01.05.2019Page /6 9
Data sheet | Item number:282-904
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
General accessories
Item no.: 209-143
Group marker carrier
209-143
Item no.: 209-144
Group marker carrier
209-144
Item no.: 249-105
Group marker carrier
249-105
Item no.: 709-310 B-type test plug module; modular; suitable for all WAGO 282 Series rail-mounted terminal blocks with jumper slots
709-310
Item no.: 709-311 B-type spacer module; modular; e.g., for bridging commoned terminal blocks
709-311
Jumper
Item no.: 210-103 Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123 Wire commoning chain; insulated; 50 connections
210-123
Item no.: 282-402 Adjacent jumper; insulated; Nominal current 41 A
282-402
Item no.: 282-409 Alternate jumper; insulated; Nominal current 41 A
282-409
Item no.: 282-422 Adjacent jumper; insulated; Nominal current 41 A
282-422
Item no.: 282-424 Adjacent jumper; insulated; Nominal current 41 A
282-424
Item no.: 284-413 Step-down jumper; insulated; from 10/6 mm² to 6/4 mm²; Nominal current 30 A
284-413
Item no.: 284-414 Step-down jumper; insulated; from 10/6 mm² to 4/2.5/1.5 mm²; Nominal current 15 A
284-414
Item no.: 709-110 Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111 Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112 Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
282-904
01.05.2019Page /7 9
Data sheet | Item number:282-904
protection
Item no.: 282-415 Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
282-415
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508

Downloads

Documentation

Bid Text
282-904 doc
24.6 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 282-904 URL Download
282-904
01.05.2019Page /8 9
Data sheet | Item number:282-904
282-904
Subject to changes.
