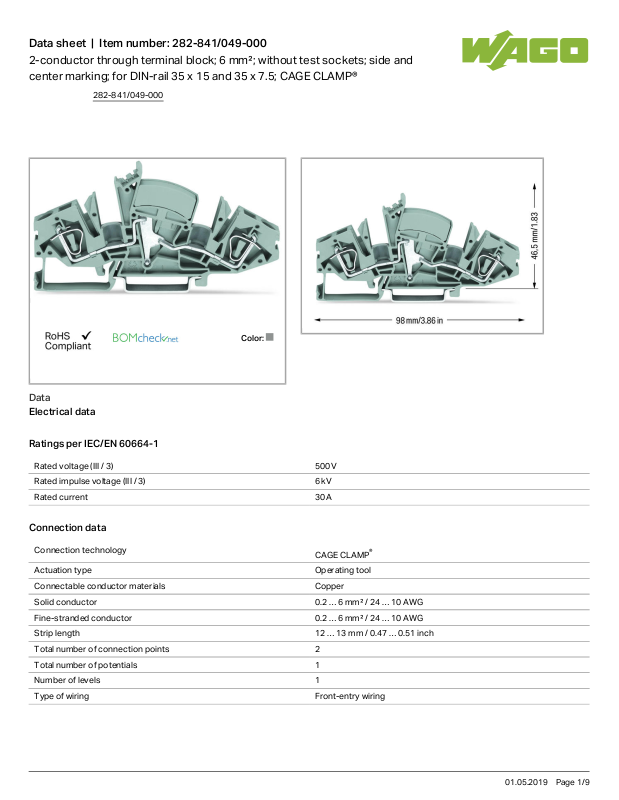

Data sheet | Item number:282-841/049-000
2-conductor through terminal block; 6 mm²; without test sockets; side and
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 30 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 6mm²/ 24 … 10AWG
Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG
Strip length 12 … 13mm/ 0.47 … 0.51inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
282-841/049-000
01.05.2019Page /1 9
Data sheet | Item number:282-841/049-000
Geometrical Data
Width 8mm/ 0.315inch
Height from upper-edge of DIN-35 rail 46.5mm/ 1.831inch
Depth 98mm/ 3.858inch
Mechanical data
Design angled
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color gray
Fire load 0.35 MJ
Weight 20.596g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821227540
Customs Tariff No. 85369010000
