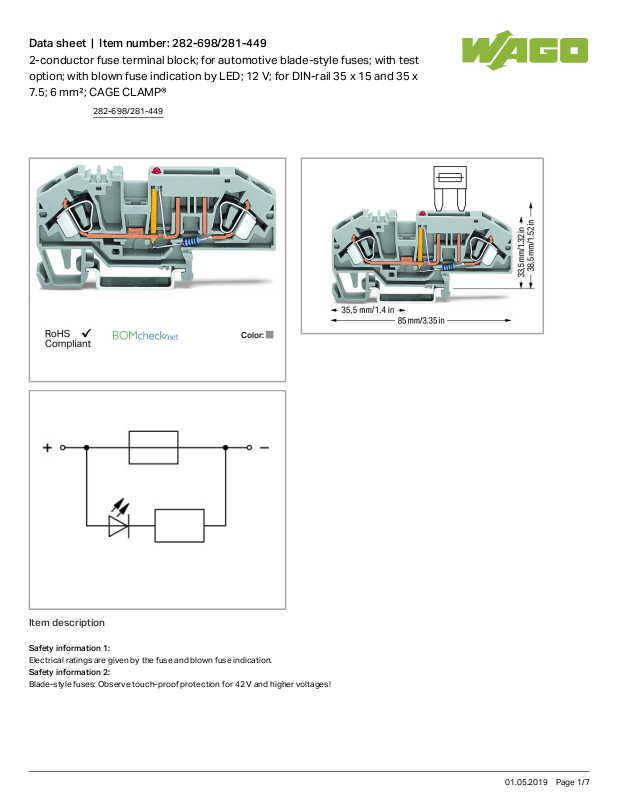

Wago 282-698/281-449 Data Sheet

Data sheet | Item number:282-698/281-449

2-conductor fuse terminal block; for automotive blade-style fuses; with test
option; with blown fuse indication by LED; 12 V; for DIN-rail 35 x 15 and 35 x

7.5; 6 mm²; CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse and blown fuse indication.

Safety information 2:

Blade-style fuses: Observe touch-proof protection for 42V and higher voltages!

282-698/281-449

01.05.2019Page /1 7

Data sheet | Item number:282-698/281-449

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 25 A

Rated current (2) 30 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 33.5mm/ 1.319inch

Depth 85mm/ 3.346inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 17.94g

282-698/281-449

01.05.2019Page /2 7

Data sheet | Item number:282-698/281-449

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4055143260749

Customs Tariff No. 85369095990

Approvals / Certificates

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

protection

Item no.: 282-415

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

282-415

Jumper

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

Item no.: 282-402

Adjacent jumper; insulated; Nominal current 41 A

282-402

Item no.: 282-409

Alternate jumper; insulated; Nominal current 41 A

282-409

Item no.: 282-422

Adjacent jumper; insulated; Nominal current 41 A

282-422

Item no.: 282-424

Adjacent jumper; insulated; Nominal current 41 A

282-424
