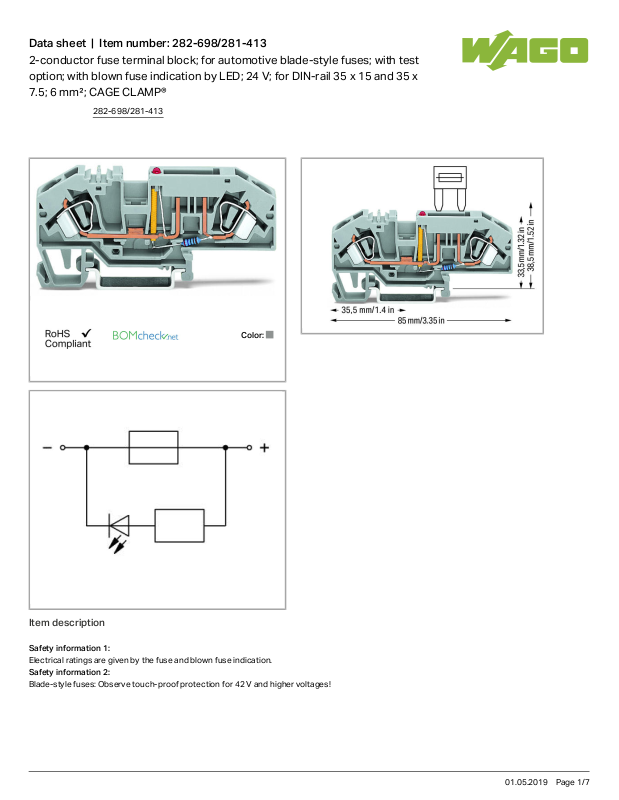

Wago 282-698/281-413 Data Sheet

Data sheet | Item number:282-698/281-413

2-conductor fuse terminal block; for automotive blade-style fuses; with test
option; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x

7.5; 6 mm²; CAGE CLAMP®

Color:

Item description

Safety information 1:

Electrical ratings are given by the fuse and blown fuse indication.

Safety information 2:

Blade-style fuses: Observe touch-proof protection for 42V and higher voltages!

282-698/281-413

01.05.2019Page /1 7

Data sheet | Item number:282-698/281-413

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 25 A

Rated current (2) 30 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 33.5mm/ 1.319inch

Depth 85mm/ 3.346inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.301 MJ

Weight 17.626g

282-698/281-413

01.05.2019Page /2 7

Data sheet | Item number:282-698/281-413

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821234555

Customs Tariff No. 85369095990

Approvals / Certificates

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

End plate

Item no.: 282-333

End plate; 2 mm thick

282-333

Item no.: 282-334

End plate; 2 mm thick

282-334

check

Item no.: 209-170

Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs

209-170

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable

210-136

tools

Item no.: 210-721

Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm

210-721

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

282-698/281-413

01.05.2019Page /3 7
