Wago 282-695 Data Sheet

Download

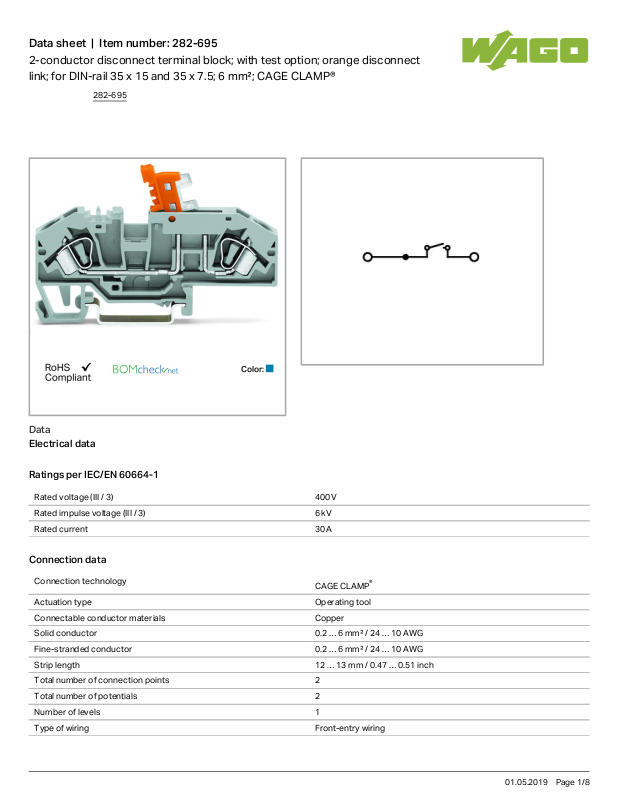

Data sheet | Item number:282-695
2-conductor disconnect terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 30 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 6mm²/ 24 … 10AWG
Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG
Strip length 12 … 13mm/ 0.47 … 0.51inch
Total number of connection points 2
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring
282-695
01.05.2019Page /1 8
Data sheet | Item number:282-695
Geometrical Data
Width 8mm/ 0.315inch
Height from upper-edge of DIN-35 rail 37mm/ 1.457inch
Depth 85mm/ 3.346inch

Mechanical data

Design angled
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.286 MJ
Weight 17.848g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821234494
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2195540.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7522
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
282-695
01.05.2019Page /2 8
Data sheet | Item number:282-695
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

ferrule
Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-262
Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-263
Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-264
Item no.: 216-266
282-695
01.05.2019Page /3 8
Data sheet | Item number:282-695
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-266
Item no.: 216-267 Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90
216-267
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
General accessories
Item no.: 209-143 Group marker carrier
209-143
Item no.: 209-144 Group marker carrier
209-144
Item no.: 249-105 Group marker carrier
249-105
Item no.: 709-310 B-type test plug module; modular; suitable for all WAGO 282 Series rail-mounted terminal blocks with jumper slots
709-310
282-695
01.05.2019Page /4 8
Data sheet | Item number:282-695
Item no.: 709-311 B-type spacer module; modular; e.g., for bridging commoned terminal blocks
709-311
assembling
Item no.: 209-106 Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-154 Cover; Type 2; suitable for cover carrier, type 2; 1 m long
709-154
tools
Item no.: 210-721 Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm
210-721
End plate
Item no.: 282-333 End plate; 2 mm thick
282-333
Item no.: 282-334 End plate; 2 mm thick
282-334
protection
Item no.: 282-415 Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
282-415
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
282-695
01.05.2019Page /5 8
Data sheet | Item number:282-695
Item no.: 793-501 WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
282-695
01.05.2019Page /6 8
Data sheet | Item number:282-695
Item no.: 793-5501/000-014 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-014
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Item no.: 282-402
Adjacent jumper; insulated; Nominal current 41 A
282-402
Item no.: 282-409
Alternate jumper; insulated; Nominal current 41 A
282-409
Item no.: 282-422
Adjacent jumper; insulated; Nominal current 41 A
282-422
Item no.: 282-424
Adjacent jumper; insulated; Nominal current 41 A
282-424
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
check
Item no.: 209-170
Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs
209-170
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Protective Warning Marker
Item no.: 282-405
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
282-405

Downloads

Documentation

282-695
01.05.2019Page /7 8
Data sheet | Item number:282-695
Bid Text
282-695 doc
24.6 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 282-695 URL Download
282-695
Subject to changes.
01.05.2019Page /8 8
