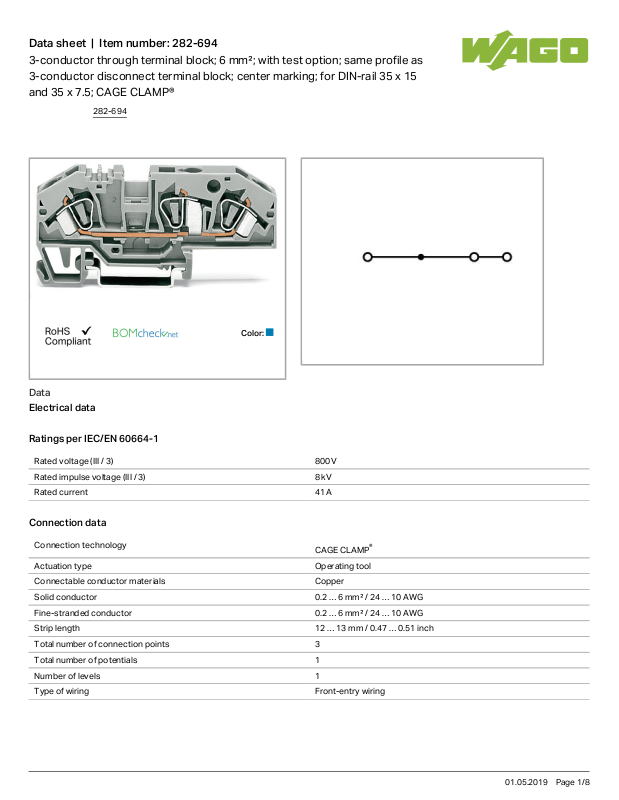

Wago 282-694 Data Sheet

Data sheet | Item number:282-694

3-conductor through terminal block; 6 mm²; with test option; same profile as
3-conductor disconnect terminal block; center marking; for DIN-rail 35 x 15
and 35 x 7.5; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 41 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

282-694

01.05.2019Page /1 8

Data sheet | Item number:282-694

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch

Depth 85mm/ 3.346inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.291 MJ

Weight 18.739g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821234470

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

CSA

DEKRA Certification B.V.

C22.2 No. 158 1505033

Ship Approvals

Certificate

282-694

01.05.2019Page /2 8

Data sheet | Item number:282-694

Logo Approval Additional Approval Text name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

General accessories

Item no.: 209-143

Group marker carrier

209-143

Item no.: 209-144

Group marker carrier

209-144

Item no.: 249-105

Group marker carrier

249-105

Item no.: 709-310

282-694

01.05.2019Page /3 8
