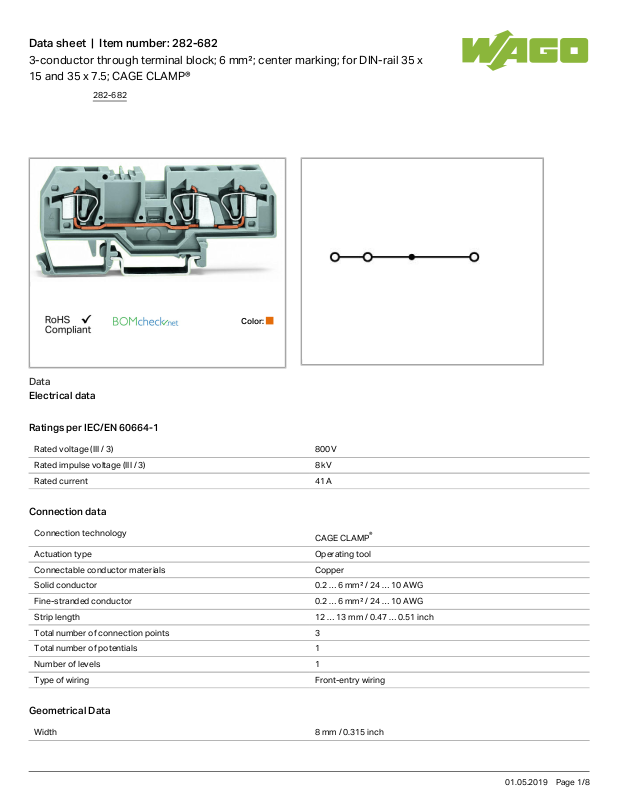

Wago 282-682 Data Sheet

Data sheet | Item number:282-682
3-conductor through terminal block; 6 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 41 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 6mm²/ 24 … 10AWG
Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG
Strip length 12 … 13mm/ 0.47 … 0.51inch
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch
282-682
01.05.2019Page /1 8
Data sheet | Item number:282-682
Height from upper-edge of DIN-35 rail 32.5mm/ 1.28inch
Depth 93mm/ 3.661inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color orange
Insulating material Polyamide 66 (PA 66)
Fire load 0.335 MJ
Weight 21.45g

Commercial data

Country of origin DE
GTIN 4044918386135
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2195540.01
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7522
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505033
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
282-682
01.05.2019Page /2 8
Data sheet | Item number:282-682
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
UL International Germany GmbH
UL 1059 E45172

Compatible products

Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Item no.: 282-402
Adjacent jumper; insulated; Nominal current 41 A
282-402
Item no.: 282-409
Alternate jumper; insulated; Nominal current 41 A
282-409
Item no.: 282-422
282-682
01.05.2019Page /3 8
