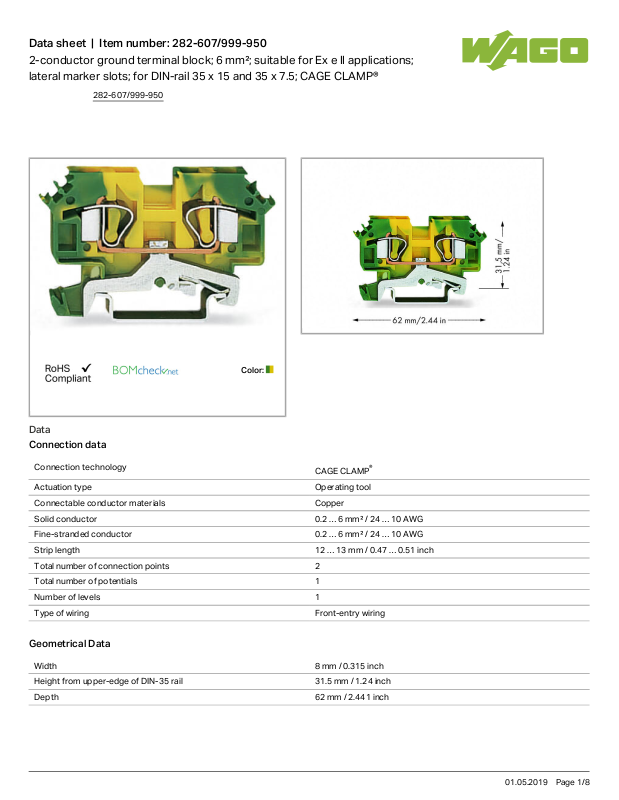

Wago 282-607/999-950 Data Sheet

Data sheet | Item number:282-607/999-950

2-conductor ground terminal block; 6 mm²; suitable for Ex e II applications;
lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 31.5mm/ 1.24inch

Depth 62mm/ 2.441inch

282-607/999-950

01.05.2019Page /1 8

Data sheet | Item number:282-607/999-950

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 19.024g

Commercial data

Country of origin DE

GTIN 4045454112042

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec.1

ATEx

Physikalisch Technische Bundesanstalt (PTB)

- PTB 98
ATEX
3131 U (II
2 G EEx e
II)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

IEC 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

282-607/999-950

01.05.2019Page /2 8

Data sheet | Item number:282-607/999-950

CSA

DEKRA Certification B.V.

C22.2 No. 158 1505033

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Compatible products

assembling

Item no.: 209-106

Mounting carrier; for isolated mounting on DIN 35 rails

209-106

Item no.: 709-153

Cover; Type 1; suitable for cover carrier, type 1; 1 m long

709-153

General accessories

Item no.: 209-143

Group marker carrier

209-143
