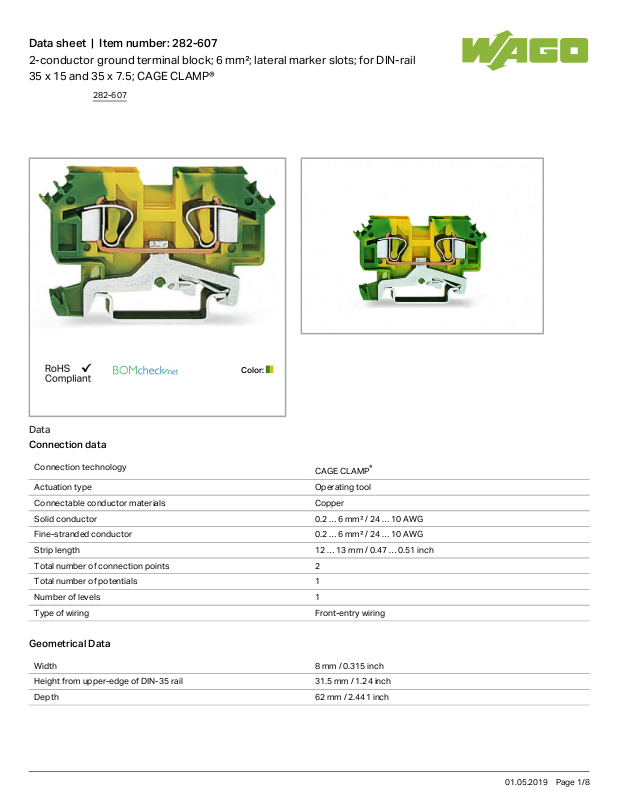

Wago 282-607 Data Sheet

Data sheet | Item number:282-607

2-conductor ground terminal block; 6 mm²; lateral marker slots; for DIN-rail
35 x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 31.5mm/ 1.24inch

Depth 62mm/ 2.441inch

282-607

01.05.2019Page /1 8

Data sheet | Item number:282-607

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 19.094g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4045454100209

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

CSA

DEKRA Certification B.V.

C22.2 No. 158 1505033

CSA

DEKRA Certification B.V.

C22.2 No. 158 1505033

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

EN 60947 14-

282-607

01.05.2019Page /2 8

Data sheet | Item number:282-607

American Bureau of Shipping HG1293677-

PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UL

UL International Germany GmbH

UL 1059 E45172

Compatible products

End plate

Item no.: 282-316

End and intermediate plate; 4 mm thick

282-316

Item no.: 282-317

End and intermediate plate; 4 mm thick

282-317

Item no.: 282-327

Separator plate; 2 mm thick; oversized

282-327

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

282-607

01.05.2019Page /3 8
