Wago 282-138 Data Sheet

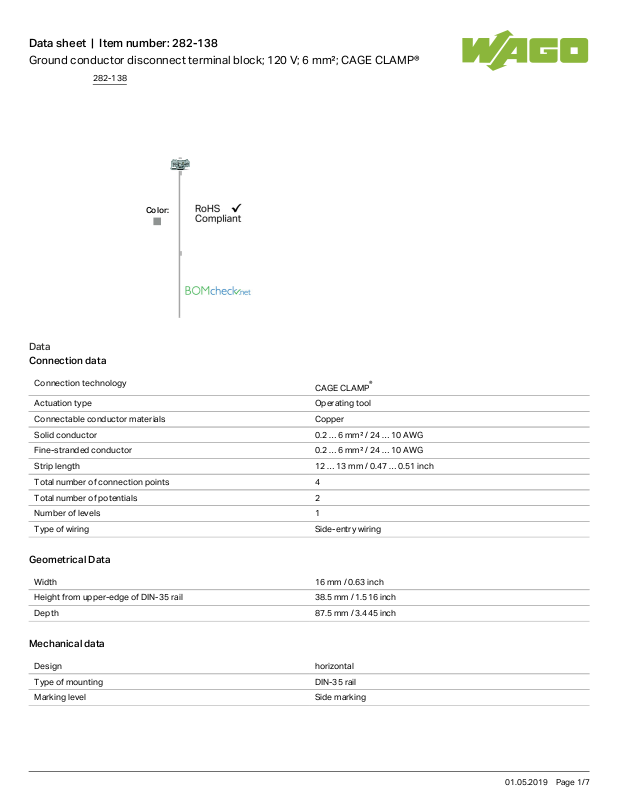

Data sheet | Item number:282-138

Ground conductor disconnect terminal block; 120 V; 6 mm²; CAGE CLAMP®

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 4

Total number of potentials 2

Number of levels 1

Type of wiring Side-entry wiring

Geometrical Data

Width 16mm/ 0.63inch

Height from upper-edge of DIN-35 rail 38.5mm/ 1.516inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

282-138

01.05.2019Page /1 7

Data sheet | Item number:282-138

Material Data

Color gray

Fire load 0 MJ

Weight 44.625g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4045454448493

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

IEC 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

282-138

01.05.2019Page /2 7

Data sheet | Item number:282-138

LR

Lloyds Register

EN 60947 91/20112

(E9)

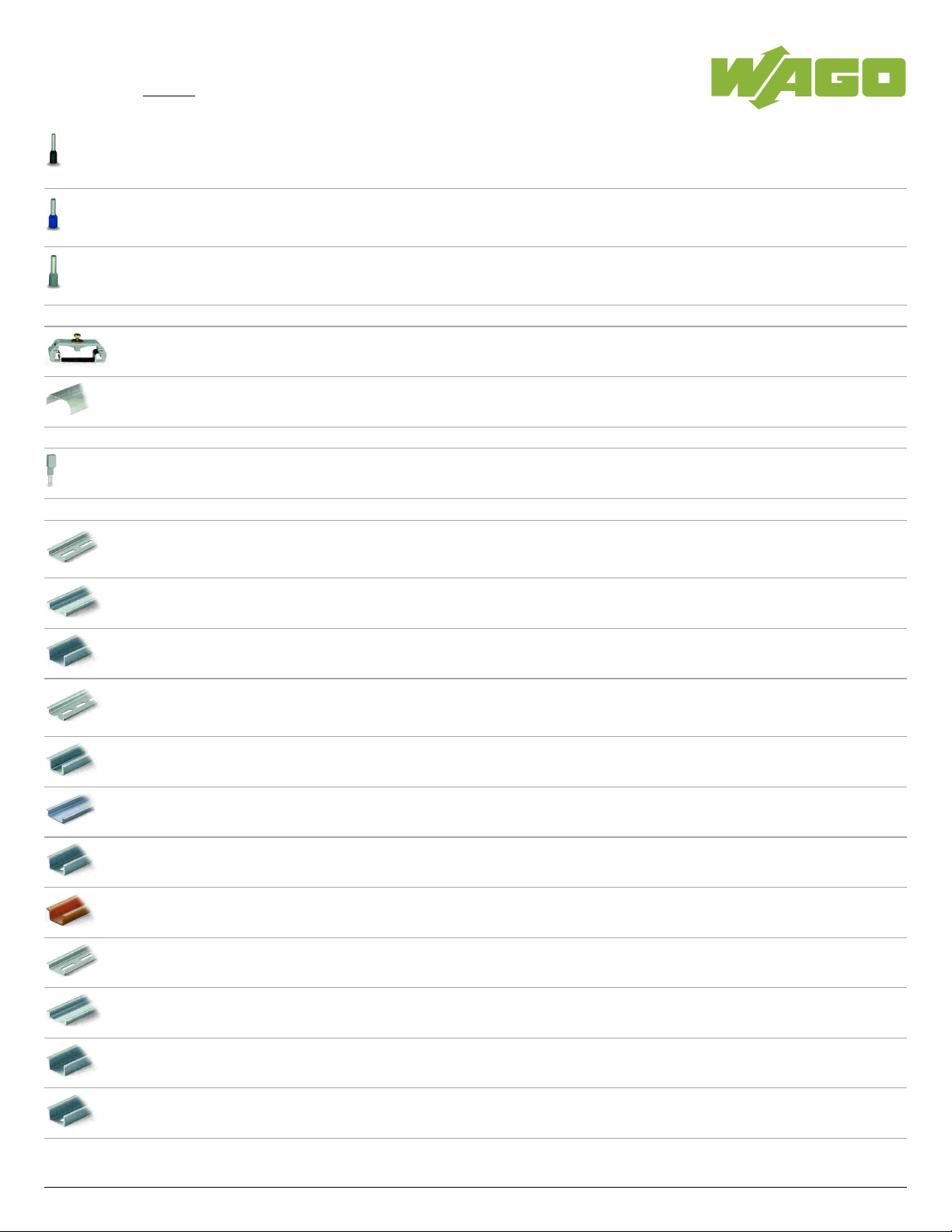

Compatible products

Coding

Item no.: 282-137

Lock-out; prevents reclosing of slide link; snap-in type

282-137

Protective Warning Marker

Item no.: 282-405

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

282-405

General accessories

Item no.: 209-143

Group marker carrier

209-143

Item no.: 209-144

Group marker carrier

209-144

Item no.: 249-105

Group marker carrier

249-105

End plate

Item no.: 282-314

End and intermediate plate; 4 mm thick

282-314

Item no.: 282-315

End and intermediate plate; 4 mm thick

282-315

tools

Item no.: 210-721

Operating tool with partially insulated shaft; Type 3, blade (5.5 x 0.8) mm

210-721

ferrule

Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-262

Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90

216-263

282-138

01.05.2019Page /3 7
