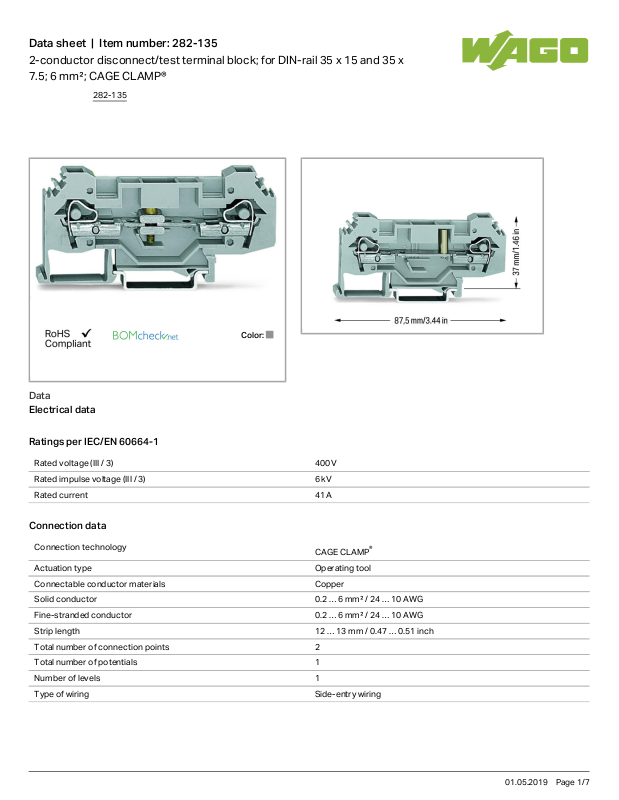

Wago 282-135 Data Sheet

Data sheet | Item number:282-135

2-conductor disconnect/test terminal block; for DIN-rail 35 x 15 and 35 x

7.5; 6 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 41 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Side-entry wiring

282-135

01.05.2019Page /1 7

Data sheet | Item number:282-135

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 37mm/ 1.457inch

Depth 87.5mm/ 3.445inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0 MJ

Weight 20.891g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821397113

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2195540.01

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7522

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

282-135

01.05.2019Page /2 7

Data sheet | Item number:282-135

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Compatible products

Coding

Item no.: 282-137

Lock-out; prevents reclosing of slide link; snap-in type

282-137

Jumper

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

Item no.: 282-402

Adjacent jumper; insulated; Nominal current 41 A

282-402

Item no.: 282-409

Alternate jumper; insulated; Nominal current 41 A

282-409

Item no.: 282-422

Adjacent jumper; insulated; Nominal current 41 A

282-422

Item no.: 282-424

Adjacent jumper; insulated; Nominal current 41 A

282-424

Item no.: 709-110

Wire commoning chain; insulated; 4 connections; 3 x 110 mm

709-110

Item no.: 709-111

Wire commoning chain; insulated; 3 connections; 2 x 120 mm

709-111

Item no.: 709-112

Wire commoning chain; insulated; 3 connections; 2 x 170 mm

709-112

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

282-135

01.05.2019Page /3 7
