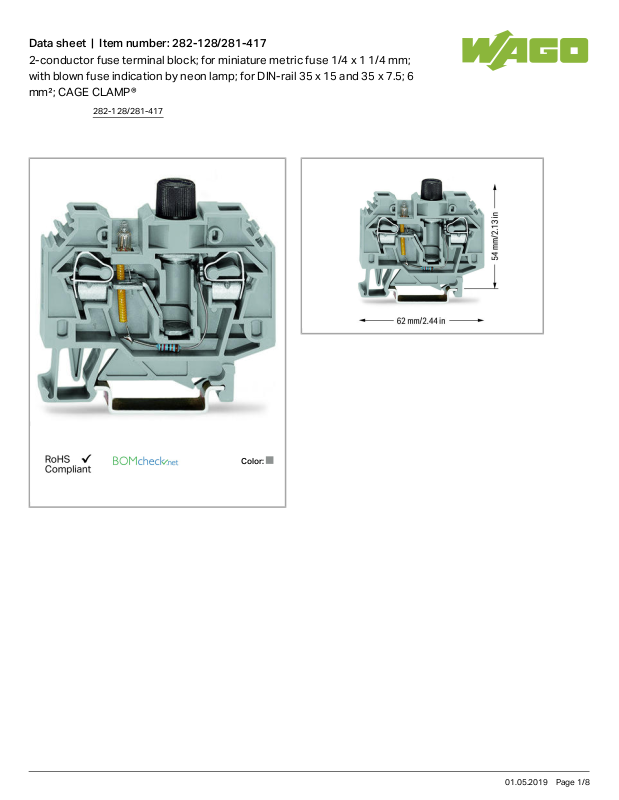

Wago 282-128/281-417 Data Sheet

Data sheet | Item number:282-128/281-417

2-conductor fuse terminal block; for miniature metric fuse 1/4 x 1 1/4 mm;
with blown fuse indication by neon lamp; for DIN-rail 35 x 15 and 35 x 7.5; 6
mm²; CAGE CLAMP®

Color:

282-128/281-417

01.05.2019Page /1 8

Data sheet | Item number:282-128/281-417

Data

Electrical data

Voltage type (1) AC

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated current 10 A

Rated voltage (III / 3) 2 220 V

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6mm²/ 24 … 10AWG

Fine-stranded conductor 0.2 … 6mm²/ 24 … 10AWG

Strip length 12 … 13mm/ 0.47 … 0.51inch

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Side-entry wiring

Geometrical Data

Width 13mm/ 0.512inch

Height from upper-edge of DIN-35 rail 56.5mm/ 2.224inch

Depth 62mm/ 2.441inch

282-128/281-417

01.05.2019Page /2 8

Data sheet | Item number:282-128/281-417

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Fire load 0 MJ

Weight 27.36g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821110330

Customs Tariff No. 85369095990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2160584.31

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 NTR NL-

7135

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name
