Wago 281-912 Data Sheet

Data sheet | Item number:281-912

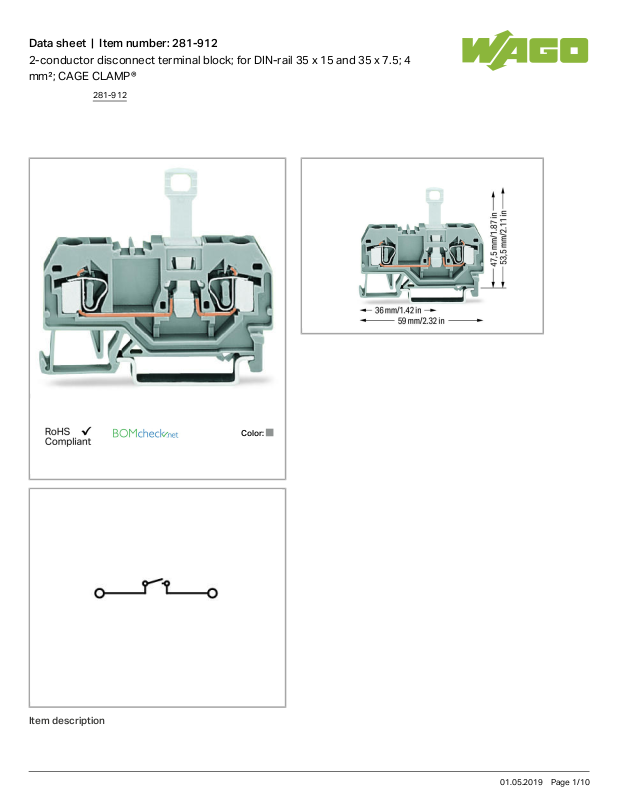

2-conductor disconnect terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®
Color:

Item description

281-912
01.05.2019Page /1 10
Data sheet | Item number:281-912
Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 10 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Total number of connection points 2
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring
281-912
01.05.2019Page /2 10
Data sheet | Item number:281-912

Geometrical Data

Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 53.5mm/ 2.106inch
Depth 59mm/ 2.323inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.158 MJ
Weight 8.473g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918631778
Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7454/A1
CCA
DEKRA Certification B.V.
IEC 60947 NTR NL-
7454/A1
CSA
DEKRA Certification B.V.
C22.2 No. 158 1505034
CSA
DEKRA Certification B.V.
UL 1059 1505034
KEMA/KEUR
EN 60947 71-
