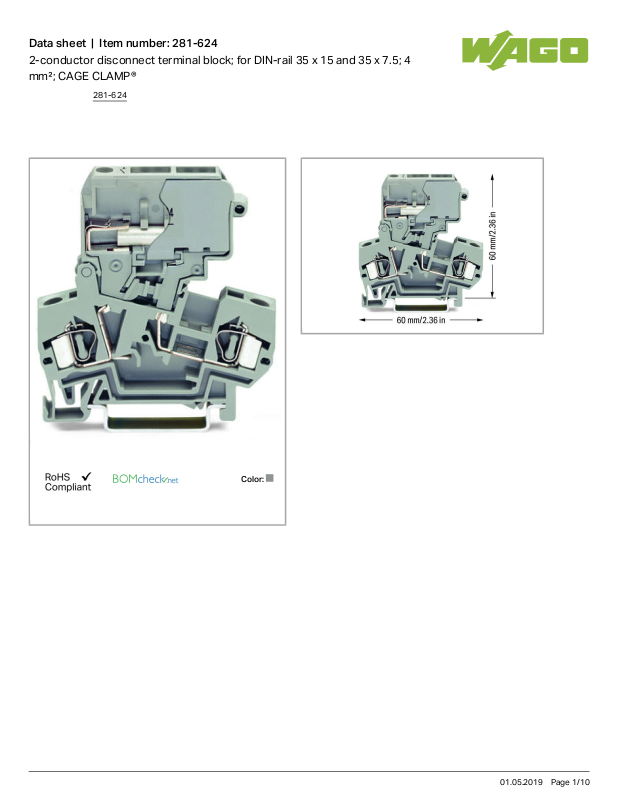

Wago 281-624 Data Sheet

Data sheet | Item number:281-624

2-conductor disconnect terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4
mm²; CAGE CLAMP®

Color:

281-624

01.05.2019Page /1 10

Data sheet | Item number:281-624

Item description

Note:
Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:

2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 16 A

281-624

01.05.2019Page /2 10

Data sheet | Item number:281-624

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 60mm/ 2.362inch

Depth 60mm/ 2.362inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.327 MJ

Weight 18.448g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4045454871604

Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

281-624

01.05.2019Page /3 10

Data sheet | Item number:281-624

CCA

DEKRA Certification B.V.

IEC 60947 NTR NL-

7454/A1

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7454/A1

CSA

DEKRA Certification B.V.

C22.2 No. 158 1505034

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

107288

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172
