Wago 281-611/281-417 Data Sheet

Data sheet | Item number:281-611/281-417

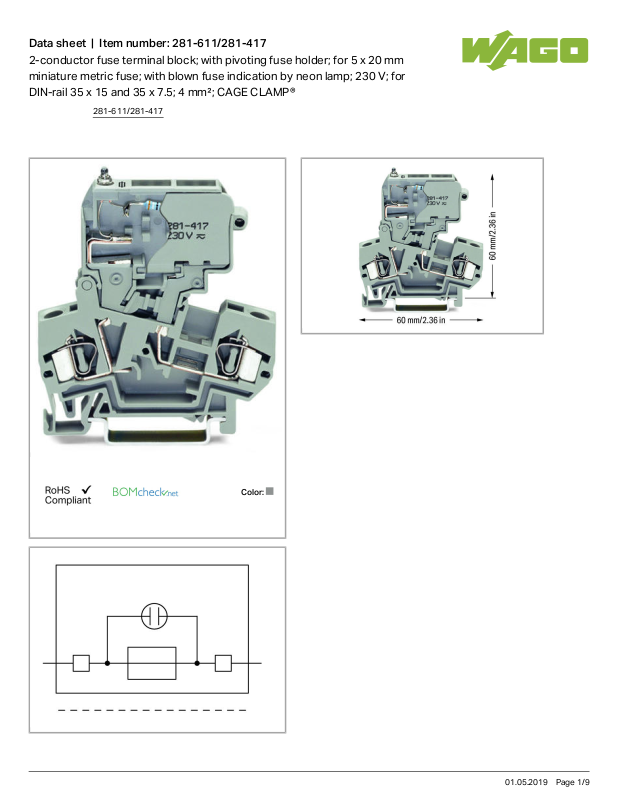

2-conductor fuse terminal block; with pivoting fuse holder; for 5 x 20 mm
miniature metric fuse; with blown fuse indication by neon lamp; 230 V; for
DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®

Color:

281-611/281-417

01.05.2019Page /1 9

Data sheet | Item number:281-611/281-417

Item description

Note:
Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:

2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A

Safety information 1:

Electrical ratings are given by the fuse and blown fuse indication.

Safety information 2:

Leakage current in case of blown fuse: Neon lamp < 0.4mA

Data

Electrical data

281-611/281-417

01.05.2019Page /2 9

Data sheet | Item number:281-611/281-417

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 10 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 8mm/ 0.315inch

Height from upper-edge of DIN-35 rail 60mm/ 2.362inch

Depth 60mm/ 2.362inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.333 MJ

Weight 17.718g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4045454871437

281-611/281-417
