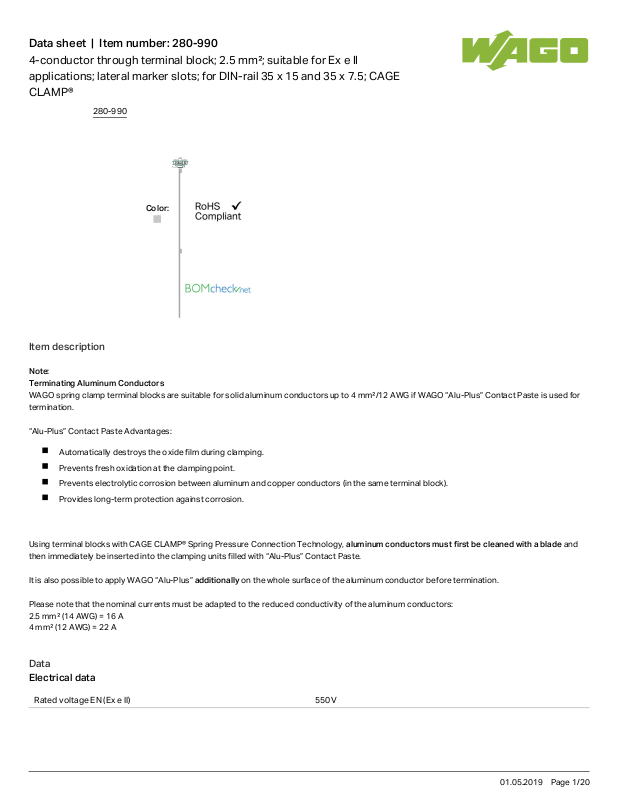

Data sheet | Item number:280-990
4-conductor through terminal block; 2.5 mm²; suitable for Ex e II
applications; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE
CLAMP®
Color:
Item description
Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
280-990
01.05.2019Page /1 20
Data sheet | Item number:280-990
Ratings per IEC/EN 60664-1
Rated current 22 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28mm/ 1.102inch
Depth 73mm/ 2.874inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Side marking
Material Data
Color light gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.133 MJ
Weight 8.316g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918391450
Customs Tariff No. 85369010000
280-990
01.05.2019Page /2 20
Data sheet | Item number:280-990
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec.1
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 99
ATEX
3109 U
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
280-990
01.05.2019Page /3 20
Data sheet | Item number:280-990
Logo Approval Additional Approval Text name
UL
Underwriters Laboratories Inc.
UL 1059 20170731-
E45172
