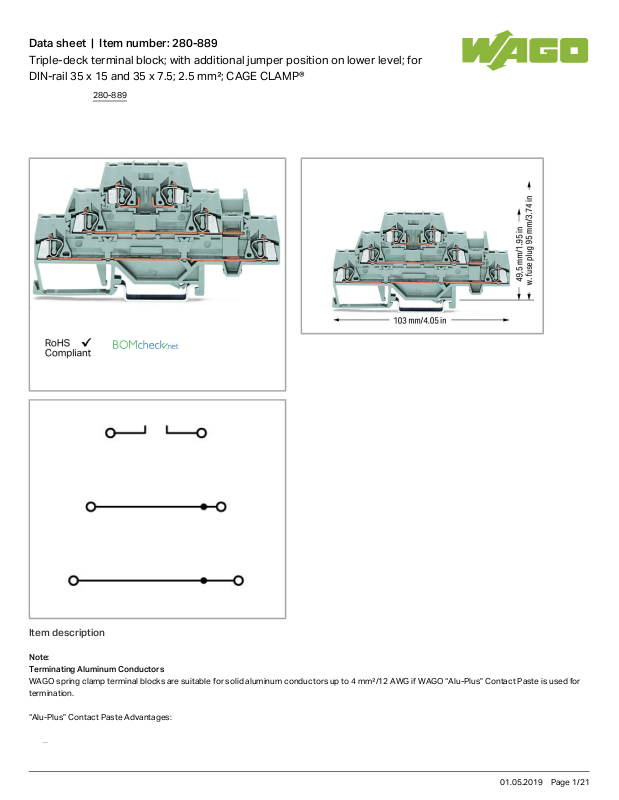

Data sheet | Item number:280-889
Triple-deck terminal block; with additional jumper position on lower level; for
DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Item description
Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.
“Alu-Plus” Contact Paste Advantages:
280-889
01.05.2019Page /1 21
Data sheet | Item number:280-889
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 20 A
Rated current (2) 20A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 6
Total number of potentials 3
Number of levels 3
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 49.5mm/ 1.949inch
Depth 103mm/ 4.055inch
280-889
01.05.2019Page /2 21
Data sheet | Item number:280-889
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level without marking level
Material Data
Color gray/gray/gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.273 MJ
Weight 18.4g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918539081
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 1536071
