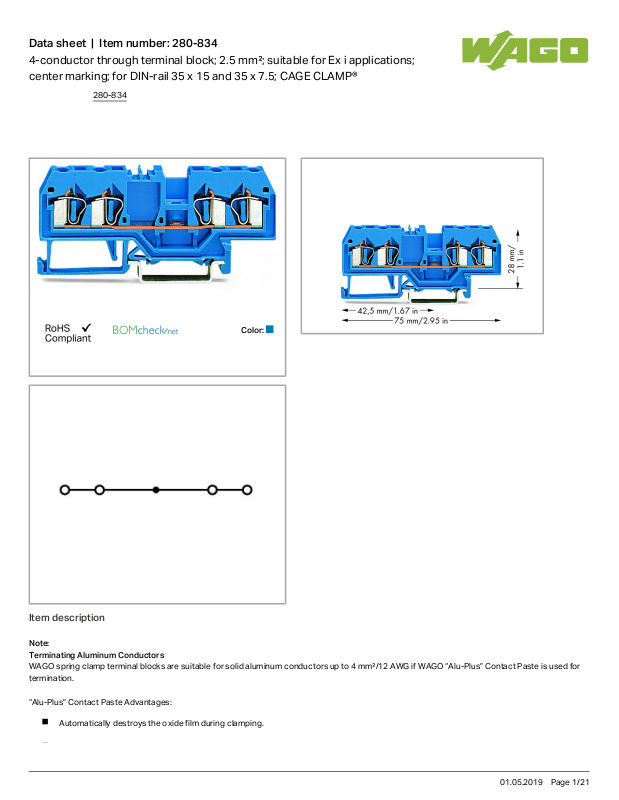

Data sheet | Item number:280-834
4-conductor through terminal block; 2.5 mm²; suitable for Ex i applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:
Item description
Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
280-834
01.05.2019Page /1 21
Page 2
Data sheet | Item number:280-834
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 20 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28mm/ 1.102inch
Depth 75mm/ 2.953inch
280-834
01.05.2019Page /2 21
Page 3
Data sheet | Item number:280-834
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.141 MJ
Weight 9.337g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918311427
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
- TAE00001V2
280-834
01.05.2019Page /3 21
Page 4
Data sheet | Item number:280-834
Det Norske Veritas, Germanischer Lloyd
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc.
UL 1059 20170731-
E45172
Compatible products
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
280-834
01.05.2019Page /4 21
Page 5
Data sheet | Item number:280-834
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 209-128
Adaptor
209-128
Item no.: 209-140
Group marker carrier
209-140
Item no.: 209-141
Group marker carrier
209-141
Item no.: 209-142
Group marker carrier
209-142
Item no.: 209-185
Adaptor
209-185
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
280-834
01.05.2019Page /5 21
Page 6
Data sheet | Item number:280-834
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
tools
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-153
280-834
01.05.2019Page /6 21
Page 7
Data sheet | Item number:280-834
Cover; Type 1; suitable for cover carrier, type 1; 1 m long 709-153
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Item no.: 249-123
280-834
01.05.2019Page /7 21
Page 8
Data sheet | Item number:280-834
Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm² 249-123
Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-402
Adjacent jumper; insulated; IN = IN terminal block
280-402
Item no.: 280-409
Alternate jumper; insulated; IN = IN terminal block
280-409
Item no.: 280-422
Adjacent jumper; insulated; IN = IN terminal block
280-422
Item no.: 280-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-482
Item no.: 280-483
Comb-style jumper bar; insulated; 3-way; IN = IN terminal block
280-483
Item no.: 280-484
Comb-style jumper bar; insulated; 4-way; IN = IN terminal block
280-484
Item no.: 280-485
Comb-style jumper bar; insulated; 5-way; IN = IN terminal block
280-485
Item no.: 280-490
Comb-style jumper bar; insulated; 10-way; IN = IN terminal block
280-490
Item no.: 280-492
Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-492
Item no.: 284-414
Step-down jumper; insulated; from 10/6 mm² to 4/2.5/1.5 mm²; Nominal current 15 A
284-414
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
Item no.: 780-452
Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs
780-452
Item no.: 780-453
Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs
780-453
Item no.: 780-454
Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs
780-454
280-834
01.05.2019Page /8 21
Page 9
Data sheet | Item number:280-834
Item no.: 780-455
Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs
780-455
Item no.: 780-456
Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs
780-456
Item no.: 780-457
Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs
780-457
Item no.: 780-458
Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs
780-458
General accessories
Item no.: 231-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 2-pole
231-162
/003-000
Item no.: 231-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 3-pole
231-163
/003-000
Item no.: 231-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 4-pole
231-164
/003-000
Item no.: 231-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 5-pole
231-165
/003-000
Item no.: 231-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 6-pole
231-166
/003-000
Item no.: 231-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 7-pole
231-167
/003-000
Item no.: 231-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 8-pole
231-168
/003-000
Item no.: 231-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 9-pole
231-169
/003-000
Item no.: 231-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole
231-170
/003-000
Item no.: 231-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 11-pole
231-171
/003-000
Item no.: 231-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 12-pole
231-172
/003-000
280-834
01.05.2019Page /9 21
Page 10
Data sheet | Item number:280-834
Item no.: 231-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
231-176
/003-000
Item no.: 231-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole
231-180
/003-000
Item no.: 249-105
Group marker carrier
249-105
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Item no.: 280-418
Test plug module; modular; suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks
with jumper slots in the current bar
280-418
Item no.: 280-419
Spacer module; modular; bridging commoned terminal blocks
280-419
Item no.: 281-407
Test plug; 6 mm wide; Nominal current 24 A; for 0.08 mm² - 2.5 mm²
281-407
Item no.: 721-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 2-pole
721-162
/003-000
Item no.: 721-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 3-pole
721-163
/003-000
Item no.: 721-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 4-pole
721-164
/003-000
Item no.: 721-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 5-pole
721-165
/003-000
Item no.: 721-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 6-pole
721-166
/003-000
Item no.: 721-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 7-pole
721-167
/003-000
Item no.: 721-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 8-pole
721-168
/003-000
Item no.: 721-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 9-pole
721-169
/003-000
Item no.: 721-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 10-pole
721-170
/003-000
280-834
01.05.2019Page /10 21
Page 11
Data sheet | Item number:280-834
Item no.: 721-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 11-pole
721-171
/003-000
Item no.: 721-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 12-pole
721-172
/003-000
Item no.: 721-173/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 13-pole
721-173
/003-000
Item no.: 721-174/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 14-pole
721-174
/003-000
Item no.: 721-175/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 15-pole
721-175
/003-000
Item no.: 721-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 16-pole
721-176
/003-000
Item no.: 721-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 20-pole
721-180
/003-000
Female plug
Item no.: 232-132/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 2-pole
232-132
/005-000
Item no.: 232-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-132
/005-000/039-000
Item no.: 232-133/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 3-pole
232-133
/005-000
Item no.: 232-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-133
/005-000/039-000
Item no.: 232-134/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 4-pole
232-134
/005-000
Item no.: 232-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 4-pole
232-134
/005-000/039-000
Item no.: 232-135/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 5-pole
232-135
/005-000
280-834
01.05.2019Page /11 21
Page 12
Data sheet | Item number:280-834
Item no.: 232-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 5-pole
232-135
/005-000/039-000
Item no.: 232-136/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 6-pole
232-136
/005-000
Item no.: 232-136/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 6-pole
232-136
/005-000/039-000
Item no.: 232-137/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-137
/005-000
Item no.: 232-137/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 7-pole
232-137
/005-000/039-000
Item no.: 232-138/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 8-pole
232-138
/005-000
Item no.: 232-138/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 8-pole
232-138
/005-000/039-000
Item no.: 232-139/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 9-pole
232-139
/005-000
Item no.: 232-139/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 9-pole
232-139
/005-000/039-000
Item no.: 232-140/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 10-pole
232-140
/005-000
Item no.: 232-140/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 10-pole
232-140
/005-000/039-000
Item no.: 232-142/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 12-pole
232-142
/005-000
Item no.: 232-142/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 12-pole
232-142
/005-000/039-000
Item no.: 232-146/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 16-pole
232-146
/005-000
Item no.: 232-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 16-pole
232-146
/005-000/039-000
280-834
01.05.2019Page /12 21
Page 13
Data sheet | Item number:280-834
Item no.: 232-147/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 17-pole
232-147
/005-000/039-000
Item no.: 232-150/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 20-pole
232-150
/005-000
Item no.: 232-150/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 20-pole
232-150
/005-000/039-000
Item no.: 232-232/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 2-pole
232-232
/005-000
Item no.: 232-232/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 2-pole
232-232
/005-000/039-000
Item no.: 232-233/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 3-pole
232-233
/005-000
Item no.: 232-233/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 3-pole
232-233
/005-000/039-000
Item no.: 232-234/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 4-pole
232-234
/005-000
Item no.: 232-234/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 4-pole
232-234
/005-000/039-000
Item no.: 232-235/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 5-pole
232-235
/005-000
Item no.: 232-235/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 5-pole
232-235
/005-000/039-000
Item no.: 232-236/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 6-pole
232-236
/005-000
Item no.: 232-236/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 6-pole
232-236
/005-000/039-000
Item no.: 232-237/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-237
/005-000
280-834
01.05.2019Page /13 21
Page 14
Data sheet | Item number:280-834
Item no.: 232-238/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 8-pole
232-238
/005-000
Item no.: 232-239/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 9-pole
232-239
/005-000
Item no.: 232-240/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 10-pole
232-240
/005-000
Item no.: 232-240/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 10-pole
232-240
/005-000/039-000
Item no.: 232-242/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 12-pole
232-242
/005-000
Item no.: 232-242/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 12-pole
232-242
/005-000/039-000
Item no.: 232-246/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 16-pole
232-246
/005-000
Item no.: 232-246/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 16-pole
232-246
/005-000/039-000
Item no.: 232-250/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 20-pole
232-250
/005-000
Item no.: 232-250/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 20-pole
232-250
/005-000/039-000
Item no.: 232-732/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 2-pole
232-732
/005-000
Item no.: 232-733/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 3-pole
232-733
/005-000
Item no.: 232-734/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 4-pole
232-734
/005-000
Item no.: 232-734/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 4-pole
232-734
/005-000/039-000
Item no.: 232-735/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole
232-735
/005-000
280-834
01.05.2019Page /14 21
Page 15
Data sheet | Item number:280-834
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole /005-000
Item no.: 232-735/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole
232-735
/005-000/039-000
Item no.: 232-736/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-736
/005-000
Item no.: 232-736/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-736
/005-000/039-000
Item no.: 232-738/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 8-pole
232-738
/005-000
Item no.: 232-740/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 10-pole
232-740
/005-000
Item no.: 232-742/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 12-pole
232-742
/005-000
Item no.: 232-832/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 2-pole
232-832
/005-000
Item no.: 232-833/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 3-pole
232-833
/005-000
Item no.: 232-834/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 4-pole
232-834
/005-000
Item no.: 232-836/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-836
/005-000
Item no.: 232-836/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 6-pole
232-836
/005-000/039-000
Item no.: 232-840/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 10-pole
232-840
/005-000
Item no.: 232-842/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 12-pole
232-842
/005-000
Item no.: 722-132/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 2-pole
722-132
/005-000
280-834
01.05.2019Page /15 21
Page 16
Data sheet | Item number:280-834
Item no.: 722-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-132
/005-000/039-000
Item no.: 722-133/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 3-pole
722-133
/005-000
Item no.: 722-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-133
/005-000/039-000
Item no.: 722-134/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 4-pole
722-134
/005-000
Item no.: 722-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 4-pole
722-134
/005-000/039-000
Item no.: 722-135/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 5-pole
722-135
/005-000
Item no.: 722-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 5-pole
722-135
/005-000/039-000
Item no.: 722-136/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 6-pole
722-136
/005-000
Item no.: 722-136/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 6-pole
722-136
/005-000/039-000
Item no.: 722-137/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 7-pole
722-137
/005-000
Item no.: 722-137/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 7-pole
722-137
/005-000/039-000
Item no.: 722-138/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 8-pole
722-138
/005-000
Item no.: 722-138/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 8-pole
722-138
/005-000/039-000
Item no.: 722-139/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 9-pole
722-139
/005-000
Item no.: 722-139/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
722-139
/005-000/039-000
280-834
01.05.2019Page /16 21
Page 17
Data sheet | Item number:280-834
Locking lever; Pin spacing 5 mm; 9-pole
Item no.: 722-140/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 10-pole
722-140
/005-000
Item no.: 722-140/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 10-pole
722-140
/005-000/039-000
Item no.: 722-141/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 11-pole
722-141
/005-000
Item no.: 722-142/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 12-pole
722-142
/005-000
Item no.: 722-142/005-007/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 12-pole
722-142
/005-007/039-000
Item no.: 722-143/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 13-pole
722-143
/005-000
Item no.: 722-144/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 14-pole
722-144
/005-000
Item no.: 722-144/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 14-pole
722-144
/005-000/039-000
Item no.: 722-145/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 15-pole
722-145
/005-000
Item no.: 722-146/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 16-pole
722-146
/005-000
Item no.: 722-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 16-pole
722-146
/005-000/039-000
Item no.: 722-150/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 20-pole
722-150
/005-000
Item no.: 722-150/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 20-pole
722-150
/005-000/039-000
Item no.: 722-232/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 3-pole
722-232
/005-000
Item no.: 722-232/005-000/039-000
280-834
01.05.2019Page /17 21
Page 18
Data sheet | Item number:280-834
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-232
/005-000/039-000
Item no.: 722-233/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 3-pole
722-233
/005-000
Item no.: 722-233/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-233
/005-000/039-000
Item no.: 722-234/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 4-pole
722-234
/005-000
Item no.: 722-234/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 4-pole
722-234
/005-000/039-000
Item no.: 722-235/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 5-pole
722-235
/005-000
Item no.: 722-235/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 5-pole
722-235
/005-000/039-000
Item no.: 722-236/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 6-pole
722-236
/005-000
Item no.: 722-236/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 6-pole
722-236
/005-000/039-000
Item no.: 722-237/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 7-pole
722-237
/005-000
Item no.: 722-237/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 7-pole
722-237
/005-000/039-000
Item no.: 722-238/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 8-pole
722-238
/005-000
Item no.: 722-239/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 9-pole
722-239
/005-000
Item no.: 722-239/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 9-pole
722-239
/005-000/039-000
Item no.: 722-240/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 10-pole
722-240
/005-000
280-834
01.05.2019Page /18 21
Page 19
Data sheet | Item number:280-834
Item no.: 722-240/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 10-pole
722-240
/005-000/039-000
Item no.: 722-241/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 11-pole
722-241
/005-000
Item no.: 722-242/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 12-pole
722-242
/005-000
Item no.: 722-242/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 12-pole
722-242
/005-000/039-000
Item no.: 722-243/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 13-pole
722-243
/005-000
Item no.: 722-244/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 14-pole
722-244
/005-000
Item no.: 722-244/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 14-pole
722-244
/005-000/039-000
Item no.: 722-246/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 16-pole
722-246
/005-000
Item no.: 722-246/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 16-pole
722-246
/005-000/039-000
Item no.: 722-250/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 20-pole
722-250
/005-000
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
280-834
01.05.2019Page /19 21
Page 20

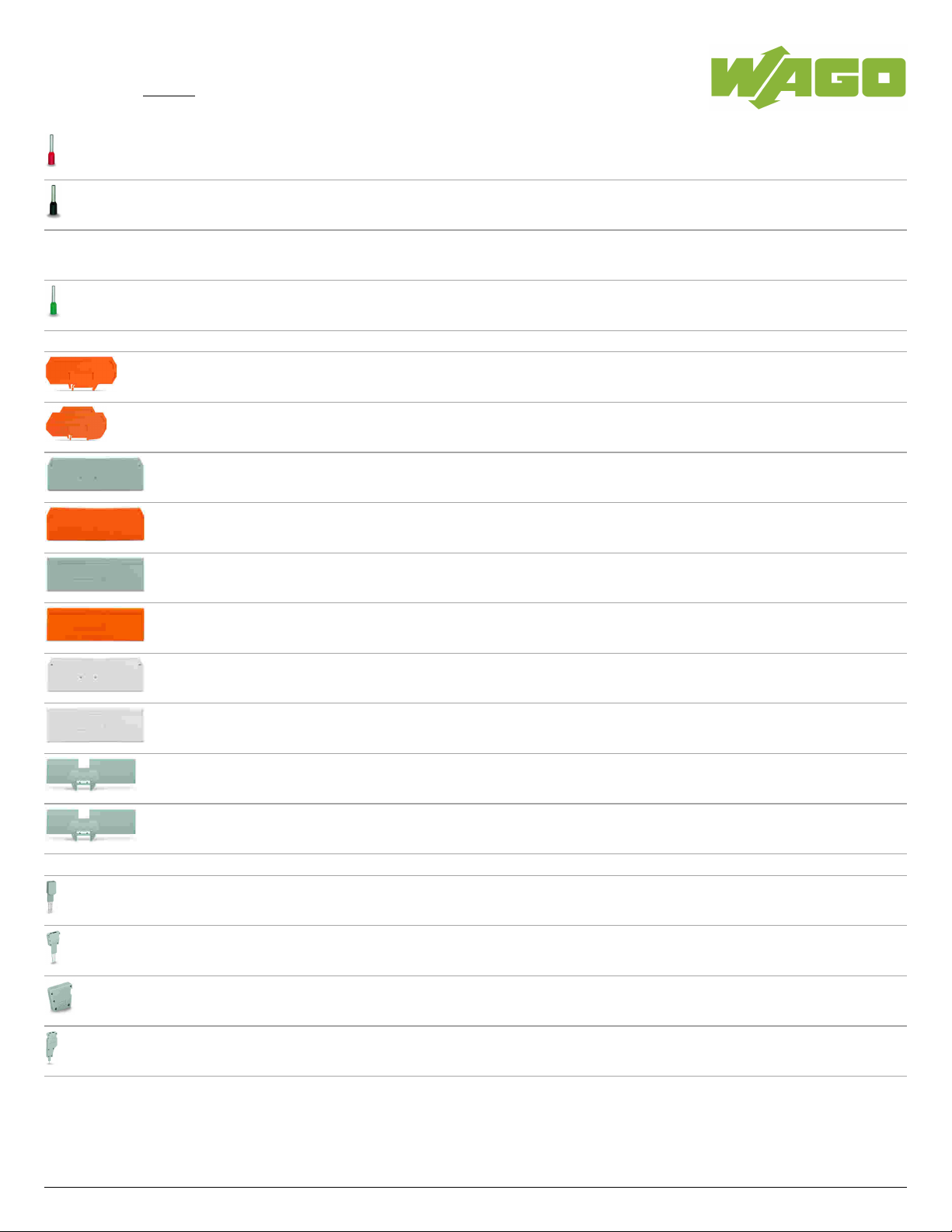

Data sheet | Item number:280-834
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
End plate
Item no.: 209-191
Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide
209-191
Item no.: 209-192
Separator for Ex e/Ex i applications; 3 mm thick; 125.5 mm wide
209-192
Item no.: 280-314
End and intermediate plate; 2.5 mm thick
280-314
Item no.: 280-315
End and intermediate plate; 2.5 mm thick
280-315
Item no.: 280-334
Separator plate; 2 mm thick; oversized
280-334
Item no.: 280-335
Separator plate; 2 mm thick; oversized
280-335
Item no.: 280-352
End and intermediate plate; 2.5 mm thick
280-352
Item no.: 280-353
Separator plate; 2 mm thick; oversized
280-353
Item no.: 284-336
Step-down cover plate; 1 mm thick; for 4-conductor 279-831, 280-833 and 281-652 terminal blocks
284-336
Item no.: 284-346
Step-down cover plate; 1 mm thick; for 4-conductor 279-831, 280-833 and 281-652 terminal blocks
284-346
check
Item no.: 209-170
Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs
209-170
Item no.: 249-106
B-type test plug module; modular
249-106
Item no.: 249-107
B-type spacer module; modular; e.g., for bridging commoned terminal blocks
249-107
Item no.: 249-141
L-type test plug module; modular; with spring-loaded contact pin; Center module
249-141
280-834
01.05.2019Page /20 21
Page 21
Data sheet | Item number:280-834
Downloads
Documentation
Bid Text
280-834
Reihenklemmen
Apr 4, 2012 doc
24.6 kB
Download
CAD/CAE - Smart Data
CAD data
3D Download 280-834 URL Download
280-834
Subject to changes.
01.05.2019Page /21 21
Loading...
