Wago 280-829 Data Sheet

Download

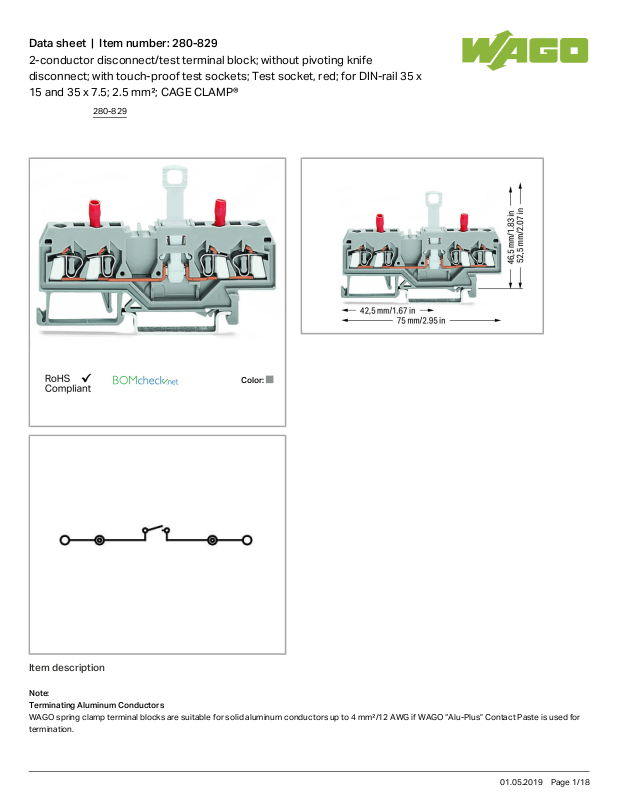

Data sheet | Item number:280-829
2-conductor disconnect/test terminal block; without pivoting knife disconnect; with touch-proof test sockets; Test socket, red; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®

Item description

Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
280-829
01.05.2019Page /1 18
Data sheet | Item number:280-829
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 10 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 2
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 52.5mm/ 2.067inch
280-829
01.05.2019Page /2 18
Data sheet | Item number:280-829
Depth 53mm/ 2.087inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 10.9g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918691390
Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 1536071
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
Underwriters Laboratories Inc.
UL 1059 20170731-
E45172

Compatible products

280-829
01.05.2019Page /3 18
Data sheet | Item number:280-829
tools
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
280-829
01.05.2019Page /4 18
Data sheet | Item number:280-829
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type
793-5501
Item no.: 793-5501/000-002 WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type
793-5501
/000-002
Item no.: 793-5501/000-005 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
Item no.: 793-5501/000-017 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024 WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
280-829
01.05.2019Page /5 18
Data sheet | Item number:280-829
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type /000-024
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
General accessories
Item no.: 209-107
Test socket; insulated; 2 mm Ø
209-107
Item no.: 209-108
Test socket; insulated; 2.3 mm Ø
209-108
Item no.: 231-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 2-pole
231-162
/003-000
Item no.: 231-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 3-pole
231-163
/003-000
Item no.: 231-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 4-pole
231-164
/003-000
Item no.: 231-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 5-pole
231-165
/003-000
Item no.: 231-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 6-pole
231-166
/003-000
Item no.: 231-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 7-pole
231-167
/003-000
Item no.: 231-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 8-pole
231-168
/003-000
Item no.: 231-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 9-pole
231-169
/003-000
Item no.: 231-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole
231-170
/003-000
Item no.: 231-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 11-pole
231-171
/003-000
280-829
01.05.2019Page /6 18
Data sheet | Item number:280-829
Item no.: 231-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 12-pole
231-172
/003-000
Item no.: 231-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
231-176
/003-000
Item no.: 231-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole
231-180
/003-000
Item no.: 709-170
Disconnect lock; for disconnect tab used on 280/281 and 769 Series disconnect terminal blocks
709-170
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
Carrier rail
Item no.: 210-112 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25 mm
210-112
Item no.: 210-113 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18 mm
210-115
Item no.: 210-118 Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196 Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198 Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505 Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508 Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
End plate
280-829
01.05.2019Page /7 18
Data sheet | Item number:280-829
Item no.: 280-314 End and intermediate plate; 2.5 mm thick
280-314
Item no.: 280-315 End and intermediate plate; 2.5 mm thick
280-315
Item no.: 280-334 Separator plate; 2 mm thick; oversized
280-334
Item no.: 280-335 Separator plate; 2 mm thick; oversized
280-335
Item no.: 280-352 End and intermediate plate; 2.5 mm thick
280-352
Item no.: 280-353 Separator plate; 2 mm thick; oversized
280-353
assembling
Item no.: 209-106 Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-154 Cover; Type 2; suitable for cover carrier, type 2; 1 m long
709-154
check
Item no.: 210-136 Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137 Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Item no.: 249-106 B-type test plug module; modular
249-106
Item no.: 249-107 B-type spacer module; modular; e.g., for bridging commoned terminal blocks
249-107
Item no.: 249-141 L-type test plug module; modular; with spring-loaded contact pin; Center module
249-141
ferrule
Item no.: 216-101 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104 Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201 Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202 Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
280-829
01.05.2019Page /8 18
Data sheet | Item number:280-829
Item no.: 216-203 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-301 Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302 Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
Jumper
Item no.: 249-123 Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125 Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126 Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127 Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-482 Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-482
Item no.: 280-483 Comb-style jumper bar; insulated; 3-way; IN = IN terminal block
280-483
Item no.: 280-484 Comb-style jumper bar; insulated; 4-way; IN = IN terminal block
280-484
Item no.: 280-485 Comb-style jumper bar; insulated; 5-way; IN = IN terminal block
280-485
Item no.: 280-490 Comb-style jumper bar; insulated; 10-way; IN = IN terminal block
280-490
Item no.: 280-492 Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-492
Female plug
Item no.: 232-132/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 2-pole
232-132
/005-000
Item no.: 232-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-132
/005-000/039-000
Item no.: 232-133/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 3-pole
232-133
/005-000
Item no.: 232-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-133
/005-000/039-000
280-829
01.05.2019Page /9 18
Data sheet | Item number:280-829
Item no.: 232-134/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 4-pole
232-134
/005-000
Item no.: 232-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 4-pole
232-134
/005-000/039-000
Item no.: 232-135/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 5-pole
232-135
/005-000
Item no.: 232-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 5-pole
232-135
/005-000/039-000
Item no.: 232-136/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 6-pole
232-136
/005-000
Item no.: 232-136/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 6-pole
232-136
/005-000/039-000
Item no.: 232-137/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-137
/005-000
Item no.: 232-137/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 7-pole
232-137
/005-000/039-000
Item no.: 232-138/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 8-pole
232-138
/005-000
Item no.: 232-138/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 8-pole
232-138
/005-000/039-000
Item no.: 232-139/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 9-pole
232-139
/005-000
Item no.: 232-139/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 9-pole
232-139
/005-000/039-000
Item no.: 232-140/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 10-pole
232-140
/005-000
Item no.: 232-140/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 10-pole
232-140
/005-000/039-000
280-829
01.05.2019Page /10 18
Data sheet | Item number:280-829
Item no.: 232-142/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 12-pole
232-142
/005-000
Item no.: 232-142/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 12-pole
232-142
/005-000/039-000
Item no.: 232-146/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 16-pole
232-146
/005-000
Item no.: 232-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 16-pole
232-146
/005-000/039-000
Item no.: 232-147/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 17-pole
232-147
/005-000/039-000
Item no.: 232-150/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 20-pole
232-150
/005-000
Item no.: 232-150/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 20-pole
232-150
/005-000/039-000
Item no.: 232-232/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 2-pole
232-232
/005-000
Item no.: 232-232/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 2-pole
232-232
/005-000/039-000
Item no.: 232-233/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 3-pole
232-233
/005-000
Item no.: 232-233/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 3-pole
232-233
/005-000/039-000
Item no.: 232-234/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 4-pole
232-234
/005-000
Item no.: 232-234/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 4-pole
232-234
/005-000/039-000
Item no.: 232-235/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 5-pole
232-235
/005-000
Item no.: 232-235/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 5-pole
232-235
/005-000/039-000
280-829
01.05.2019Page /11 18
Data sheet | Item number:280-829
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 5-pole /005-000/039-000
Item no.: 232-236/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 6-pole
232-236
/005-000
Item no.: 232-236/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 6-pole
232-236
/005-000/039-000
Item no.: 232-237/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-237
/005-000
Item no.: 232-238/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 8-pole
232-238
/005-000
Item no.: 232-239/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 9-pole
232-239
/005-000
Item no.: 232-240/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 10-pole
232-240
/005-000
Item no.: 232-240/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 10-pole
232-240
/005-000/039-000
Item no.: 232-242/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 12-pole
232-242
/005-000
Item no.: 232-242/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 12-pole
232-242
/005-000/039-000
Item no.: 232-246/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 16-pole
232-246
/005-000
Item no.: 232-246/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 16-pole
232-246
/005-000/039-000
Item no.: 232-250/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 20-pole
232-250
/005-000
Item no.: 232-250/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 20-pole
232-250
/005-000/039-000
Item no.: 232-732/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 2-pole
232-732
/005-000
280-829
01.05.2019Page /12 18
Data sheet | Item number:280-829
Item no.: 232-733/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 3-pole
232-733
/005-000
Item no.: 232-734/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 4-pole
232-734
/005-000
Item no.: 232-734/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 4-pole
232-734
/005-000/039-000
Item no.: 232-735/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole
232-735
/005-000
Item no.: 232-735/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole
232-735
/005-000/039-000
Item no.: 232-736/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-736
/005-000
Item no.: 232-736/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-736
/005-000/039-000
Item no.: 232-738/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 8-pole
232-738
/005-000
Item no.: 232-740/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 10-pole
232-740
/005-000
Item no.: 232-742/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 12-pole
232-742
/005-000
Item no.: 232-832/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 2-pole
232-832
/005-000
Item no.: 232-833/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 3-pole
232-833
/005-000
Item no.: 232-834/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 4-pole
232-834
/005-000
Item no.: 232-836/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-836
/005-000
Item no.: 232-836/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 6-pole
232-836
/005-000/039-000
280-829
01.05.2019Page /13 18
Data sheet | Item number:280-829
Item no.: 232-840/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 10-pole
232-840
/005-000
Item no.: 232-842/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 12-pole
232-842
/005-000
Item no.: 722-132/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 2-pole
722-132
/005-000
Item no.: 722-132/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 3-pole
722-132
/005-000/039-000
Item no.: 722-133/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 3-pole
722-133
/005-000
Item no.: 722-133/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 3-pole
722-133
/005-000/039-000
Item no.: 722-134/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 4-pole
722-134
/005-000
Item no.: 722-134/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 4-pole
722-134
/005-000/039-000
Item no.: 722-135/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 5-pole
722-135
/005-000
Item no.: 722-135/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 5-pole
722-135
/005-000/039-000
Item no.: 722-136/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 6-pole
722-136
/005-000
Item no.: 722-136/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 6-pole
722-136
/005-000/039-000
Item no.: 722-137/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 7-pole
722-137
/005-000
Item no.: 722-137/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 7-pole
722-137
/005-000/039-000
Item no.: 722-138/005-000
280-829
01.05.2019Page /14 18
Data sheet | Item number:280-829
Item no.: 722-138/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 8-pole
722-138
/005-000
Item no.: 722-138/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 8-pole
722-138
/005-000/039-000
Item no.: 722-139/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 9-pole
722-139
/005-000
Item no.: 722-139/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 9-pole
722-139
/005-000/039-000
Item no.: 722-140/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 10-pole
722-140
/005-000
Item no.: 722-140/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 10-pole
722-140
/005-000/039-000
Item no.: 722-141/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 11-pole
722-141
/005-000
Item no.: 722-142/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 12-pole
722-142
/005-000
Item no.: 722-142/005-007/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 12-pole
722-142
/005-007/039-000
Item no.: 722-143/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 13-pole
722-143
/005-000
Item no.: 722-144/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 14-pole
722-144
/005-000
Item no.: 722-144/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 14-pole
722-144
/005-000/039-000
Item no.: 722-145/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 15-pole
722-145
/005-000
Item no.: 722-146/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 16-pole
722-146
/005-000
Item no.: 722-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
280-829
01.05.2019Page /15 18
Data sheet | Item number:280-829
Locking lever; Pin spacing 5 mm; 16-pole
722-146
/005-000/039-000
Item no.: 722-150/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 20-pole
722-150
/005-000
Item no.: 722-150/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 20-pole
722-150
/005-000/039-000
Item no.: 722-232/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 3-pole
722-232
/005-000
Item no.: 722-232/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 3-pole
722-232
/005-000/039-000
Item no.: 722-233/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 3-pole
722-233
/005-000
Item no.: 722-233/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 3-pole
722-233
/005-000/039-000
Item no.: 722-234/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 4-pole
722-234
/005-000
Item no.: 722-234/005-000/039-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 4-pole
722-234
/005-000/039-000
Item no.: 722-235/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 5-pole
722-235
/005-000
Item no.: 722-235/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 5-pole
722-235
/005-000/039-000
Item no.: 722-236/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 6-pole
722-236
/005-000
Item no.: 722-236/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 6-pole
722-236
/005-000/039-000
Item no.: 722-237/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 7-pole
722-237
/005-000
Item no.: 722-237/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
280-829
01.05.2019Page /16 18
Data sheet | Item number:280-829
Locking lever; Pin spacing 5 mm; 7-pole
722-237
/005-000/039-000
Item no.: 722-238/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 8-pole
722-238
/005-000
Item no.: 722-239/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 9-pole
722-239
/005-000
Item no.: 722-239/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 9-pole
722-239
/005-000/039-000
Item no.: 722-240/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 10-pole
722-240
/005-000
Item no.: 722-240/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 10-pole
722-240
/005-000/039-000
Item no.: 722-241/005-000 Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin spacing 5 mm; 11-pole
722-241
/005-000
Item no.: 722-242/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 12-pole
722-242
/005-000
Item no.: 722-242/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 12-pole
722-242
/005-000/039-000
Item no.: 722-243/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 13-pole
722-243
/005-000
Item no.: 722-244/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 14-pole
722-244
/005-000
Item no.: 722-244/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 14-pole
722-244
/005-000/039-000
Item no.: 722-246/005-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin spacing 5 mm; 16-pole
722-246
/005-000
Item no.: 722-246/005-000/039-000 Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Locking lever; Pin spacing 5 mm; 16-pole
722-246
/005-000/039-000
Item no.: 722-250/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
280-829
01.05.2019Page /17 18
Data sheet | Item number:280-829
spacing 5 mm; 20-pole
722-250
/005-000

Downloads

Documentation

Bid Text
280-829 doc
25.6 kB
Download

CAD/CAE - Smart Data

CAD data
3D Download 280-829 URL Download
280-829
Subject to changes.
01.05.2019Page /18 18
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
