Wago 280-683 Data Sheet

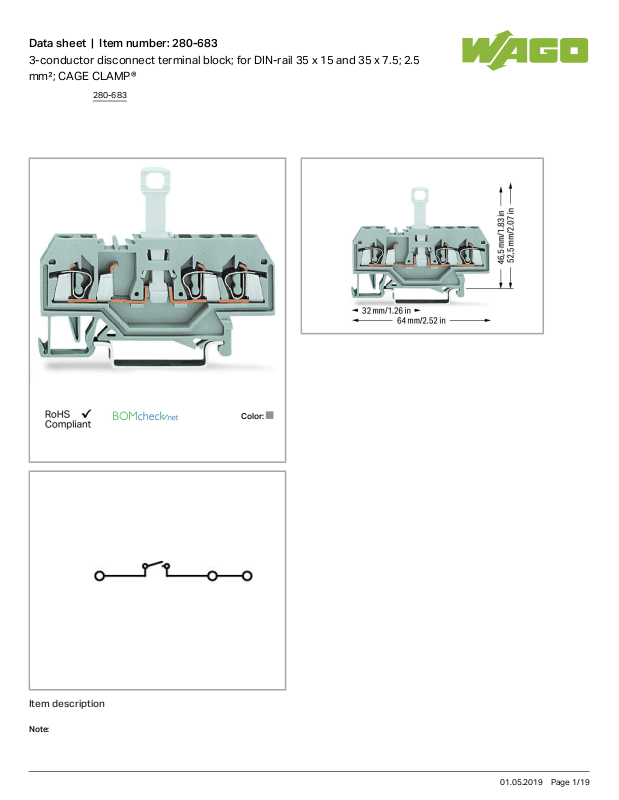

Data sheet | Item number:280-683
3-conductor disconnect terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Color:

Item description

Note:
280-683
01.05.2019Page /1 19
Data sheet | Item number:280-683
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 10 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 3
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring
280-683
01.05.2019Page /2 19
Data sheet | Item number:280-683

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 52.5mm/ 2.067inch
Depth 64mm/ 2.52inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.143 MJ
Weight 8.265g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821214953
Customs Tariff No. 85365080990

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
280-683
01.05.2019Page /3 19
Data sheet | Item number:280-683
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
Underwriters Laboratories Inc.
UL 1059 20170731-
E45172

Compatible products

End plate
Item no.: 280-324
End and intermediate plate; 2.5 mm thick
280-324
Item no.: 280-326
End and intermediate plate; 2.5 mm thick
280-326
Item no.: 280-344
Separator plate; 2 mm thick; oversized
280-344
Item no.: 280-346
Separator plate; 2 mm thick; oversized
280-346
Female plug
280-683
01.05.2019Page /4 19
Data sheet | Item number:280-683
Item no.: 232-132/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 2-pole
232-132
/005-000
Item no.: 232-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-132
/005-000/039-000
Item no.: 232-133/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 3-pole
232-133
/005-000
Item no.: 232-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-133
/005-000/039-000
Item no.: 232-134/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 4-pole
232-134
/005-000
Item no.: 232-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 4-pole
232-134
/005-000/039-000
Item no.: 232-135/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 5-pole
232-135
/005-000
Item no.: 232-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 5-pole
232-135
/005-000/039-000
Item no.: 232-136/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 6-pole
232-136
/005-000
Item no.: 232-136/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 6-pole
232-136
/005-000/039-000
Item no.: 232-137/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-137
/005-000
Item no.: 232-137/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 7-pole
232-137
/005-000/039-000
Item no.: 232-138/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 8-pole
232-138
/005-000
Item no.: 232-138/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 8-pole
232-138
/005-000/039-000
Item no.: 232-139/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 9-pole
232-139
/005-000
280-683
01.05.2019Page /5 19
Data sheet | Item number:280-683
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 9-pole /005-000
Item no.: 232-139/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 9-pole
232-139
/005-000/039-000
Item no.: 232-140/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 10-pole
232-140
/005-000
Item no.: 232-140/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 10-pole
232-140
/005-000/039-000
Item no.: 232-142/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 12-pole
232-142
/005-000
Item no.: 232-142/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 12-pole
232-142
/005-000/039-000
Item no.: 232-146/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 16-pole
232-146
/005-000
Item no.: 232-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 16-pole
232-146
/005-000/039-000
Item no.: 232-147/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 17-pole
232-147
/005-000/039-000
Item no.: 232-150/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 20-pole
232-150
/005-000
Item no.: 232-150/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 20-pole
232-150
/005-000/039-000
Item no.: 232-232/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 2-pole
232-232
/005-000
Item no.: 232-232/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 2-pole
232-232
/005-000/039-000
Item no.: 232-233/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 3-pole
232-233
/005-000
Item no.: 232-233/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 3-pole
232-233
/005-000/039-000
280-683
01.05.2019Page /6 19
