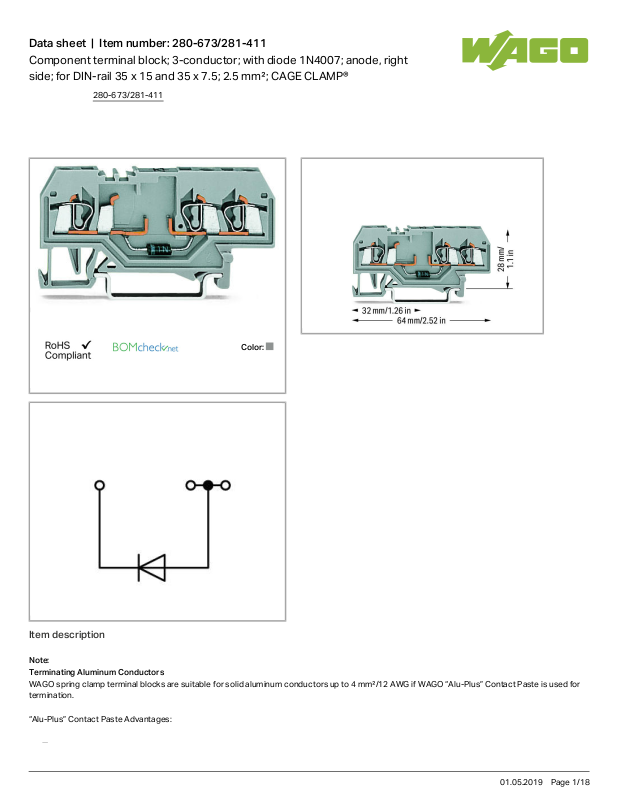

Data sheet | Item number:280-673/281-411
Component terminal block; 3-conductor; with diode 1N4007; anode, right
side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Color:
Item description
Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.
“Alu-Plus” Contact Paste Advantages:
280-673/281-411
01.05.2019Page /1 18
Data sheet | Item number:280-673/281-411
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A
Data
Electrical data
Nominal voltage 250 V
Reverse voltage 1000 V
Ratings per IEC/EN 60664-1
Rated current 0.5 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 3
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 28mm/ 1.102inch
Depth 64mm/ 2.52inch
280-673/281-411
01.05.2019Page /2 18
Data sheet | Item number:280-673/281-411
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.141 MJ
Weight 7.849g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821275466
Customs Tariff No. 85369010000
