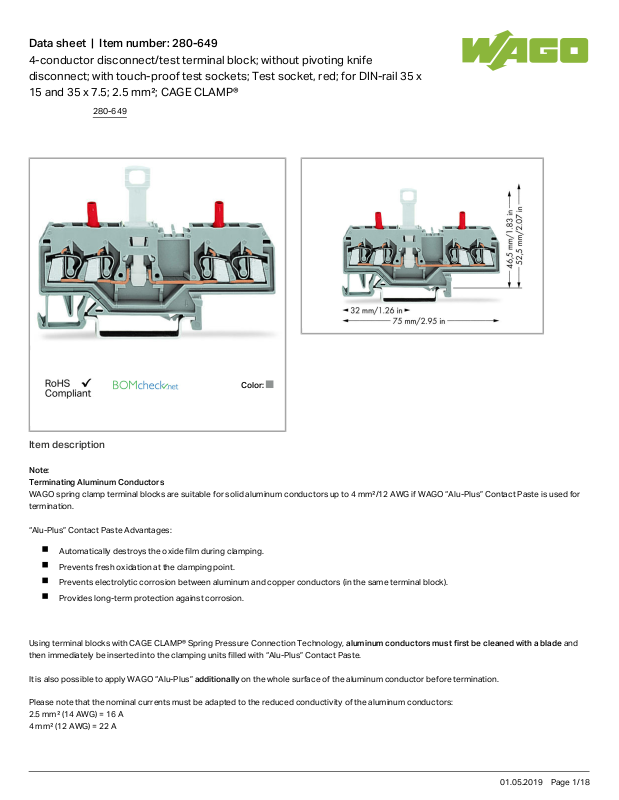

Wago 280-649 Data Sheet

Data sheet | Item number:280-649
4-conductor disconnect/test terminal block; without pivoting knife disconnect; with touch-proof test sockets; Test socket, red; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®

Item description

Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A
280-649
01.05.2019Page /1 18
Data sheet | Item number:280-649
Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 10 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 2
Total number of potentials 2
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 52.5mm/ 2.067inch
Depth 53mm/ 2.087inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0 MJ
Weight 10.916g
280-649
01.05.2019Page /2 18
Data sheet | Item number:280-649

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918691369
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UL
Underwriters Laboratories Inc.
UL 1059 20170731-
E45172
280-649
01.05.2019Page /3 18
Data sheet | Item number:280-649

Compatible products

assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 210-148
Angled support bracket; without screw
210-148
Item no.: 709-153
Cover; Type 1; suitable for cover carrier, type 1; 1 m long
709-153
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
General accessories
Item no.: 231-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 2-pole
231-162
/003-000
Item no.: 231-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 3-pole
231-163
/003-000
Item no.: 231-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 4-pole
231-164
/003-000
280-649
01.05.2019Page /4 18
Data sheet | Item number:280-649
Item no.: 231-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 5-pole
231-165
/003-000
Item no.: 231-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 6-pole
231-166
/003-000
Item no.: 231-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 7-pole
231-167
/003-000
Item no.: 231-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 8-pole
231-168
/003-000
Item no.: 231-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 9-pole
231-169
/003-000
Item no.: 231-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole
231-170
/003-000
Item no.: 231-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 11-pole
231-171
/003-000
Item no.: 231-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 12-pole
231-172
/003-000
Item no.: 231-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
231-176
/003-000
Item no.: 231-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole
231-180
/003-000
Item no.: 231-668
Lockout caps; for covering unused clamping units
231-668
Item no.: 231-669
Lockout caps; for covering unused clamping units
231-669
Item no.: 249-105
Group marker carrier
249-105
Item no.: 709-170
Disconnect lock; for disconnect tab used on 280/281 and 769 Series disconnect terminal blocks
709-170
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
280-649
01.05.2019Page /5 18
Data sheet | Item number:280-649
Item no.: 280-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-482
Item no.: 280-483
Comb-style jumper bar; insulated; 3-way; IN = IN terminal block
280-483
Item no.: 280-484
Comb-style jumper bar; insulated; 4-way; IN = IN terminal block
280-484
Item no.: 280-485
Comb-style jumper bar; insulated; 5-way; IN = IN terminal block
280-485
Item no.: 280-490
Comb-style jumper bar; insulated; 10-way; IN = IN terminal block
280-490
Item no.: 280-492
Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-492
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
Female plug
Item no.: 232-132/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 2-pole
232-132
/005-000
Item no.: 232-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-132
/005-000/039-000
Item no.: 232-133/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 3-pole
232-133
/005-000
Item no.: 232-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-133
/005-000/039-000
Item no.: 232-134/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 4-pole
232-134
/005-000
Item no.: 232-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 4-pole
232-134
/005-000/039-000
Item no.: 232-135/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 5-pole
232-135
/005-000
Item no.: 232-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 5-pole
232-135
/005-000/039-000
280-649
01.05.2019Page /6 18
