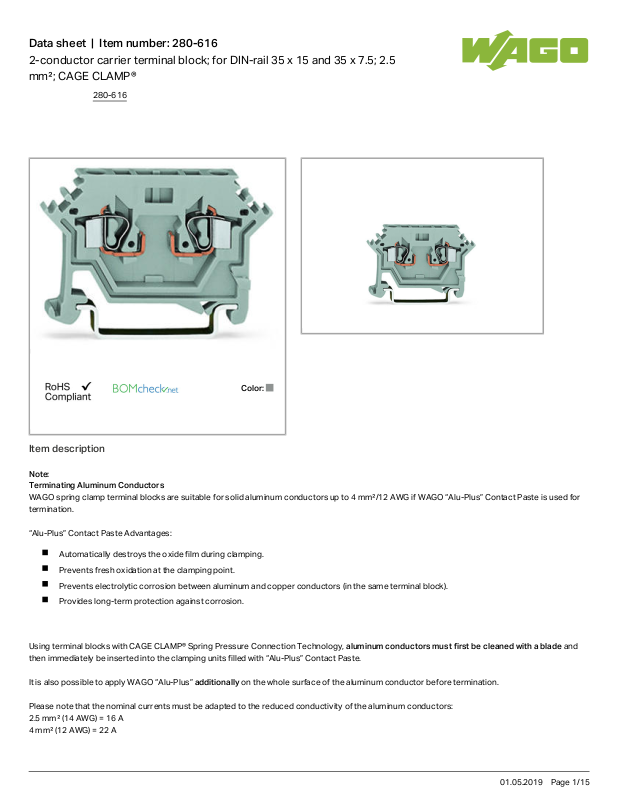

Wago 280-616 Data Sheet

Data sheet | Item number:280-616

2-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®

Color:

Item description

Note: Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:

2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

280-616

01.05.2019Page /1 15

Data sheet | Item number:280-616

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V

Rated impulse voltage (III / 3) 6 kV

Rated current 10 A

Connection data

Connection technology

CAGE CLAMP

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 28mm/ 1.102inch

Depth 50mm/ 1.969inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.093 MJ

Weight 4.738g

280-616

01.05.2019Page /2 15

Data sheet | Item number:280-616

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4044918538565

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate name

CCA

DEKRA Certification B.V.

EN 60947 2157201.01

CSA

DEKRA Certification B.V.

C22.2 1536071

Ship Approvals

Logo Approval Additional Approval Text

Certificate name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677PDA

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate name

Underwriters Laboratories Inc.

UL 1059 20170731-

E45172

280-616

01.05.2019Page /3 15

Data sheet | Item number:280-616

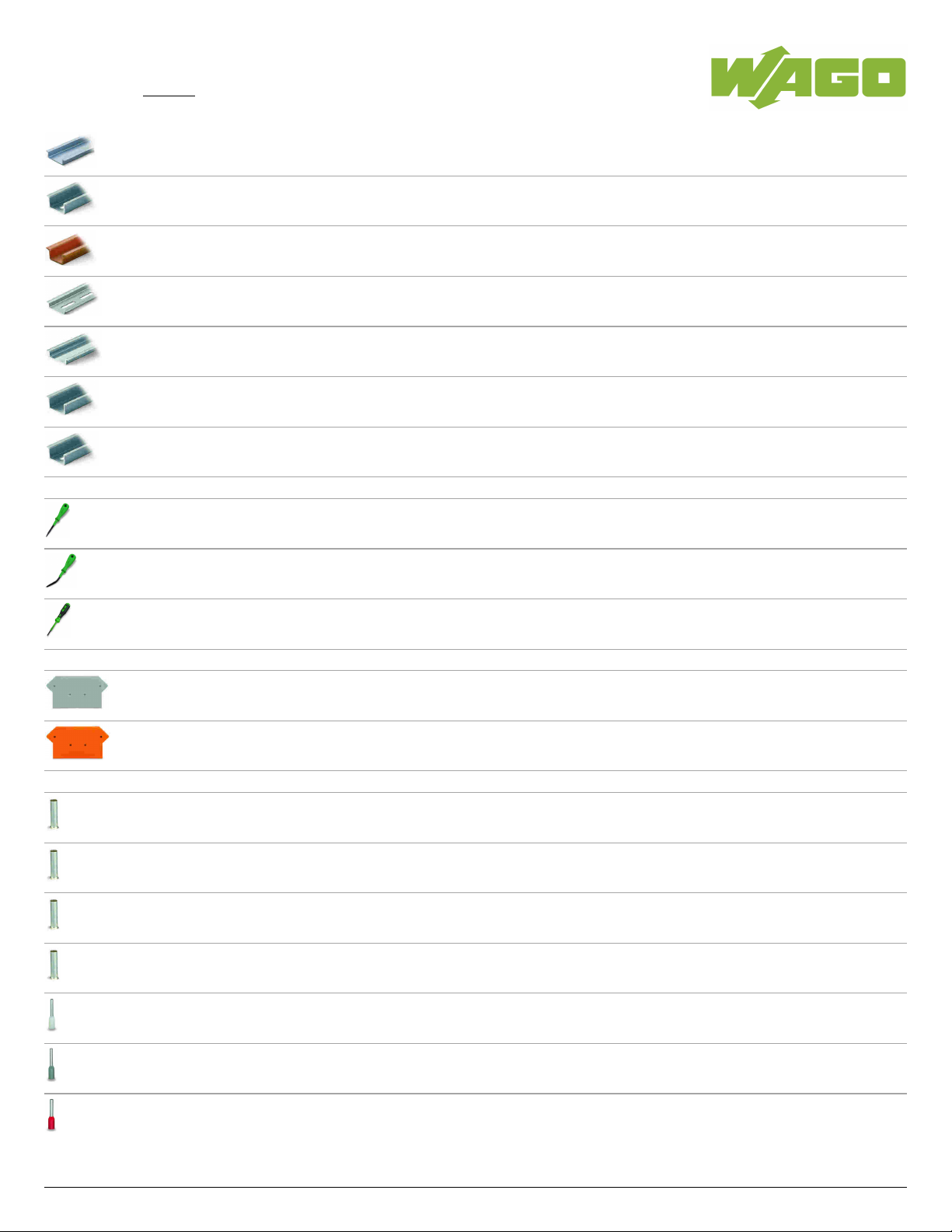

Compatible products

assembling

Item no.: 209-106

Mounting carrier; for isolated mounting on DIN 35 rails

209-106

Item no.: 210-148

Angled support bracket; without screw

210-148

General accessories

Item no.: 280-801

Empty component plug housing

280-801

Item no.: 280-801/281-411

Component plug; for carrier terminal blocks; 2-pole; with diode 1N4007; 5 mm wide

280-801

/281-411

Item no.: 280-801/281-413

Component plug; for carrier terminal blocks; 1-pole; LED (red); 24 VDC; 5 mm wide

280-801

/281-413

Item no.: 280-801/281-414

Component plug; for carrier terminal blocks; 1-pole; LED (red); 48 VDC; 5 mm wide

280-801

/281-414

Item no.: 280-801/281-415

Component plug; for carrier terminal blocks; 1-pole; LED (red); 5 mm wide

280-801

/281-415

Item no.: 280-801/281-416

Component plug; for carrier terminal blocks; 1-pole; LED (red); 5 mm wide

280-801

/281-416

Item no.: 280-801/281-417

Component plug; for carrier terminal blocks; 1-pole; 5 mm wide

280-801

/281-417

Item no.: 280-801/281-418

Component plug; for carrier terminal blocks; 1-pole; 5 mm wide

280-801

/281-418

280-616

01.05.2019Page /4 15

Data sheet | Item number:280-616

Component plug; for carrier terminal blocks; 1-pole; 5 mm wide /281-418

Item no.: 280-801/281-420

Component plug; for carrier terminal blocks; 2-pole; with LED and recovery diode; 5 mm wide

280-801

/281-420

Item no.: 280-801/281-421

Component plug; for carrier terminal blocks; 2-pole; with LED and recovery diode; 5 mm wide

280-801

/281-421

Item no.: 280-802

Empty component plug housing

280-802

Item no.: 280-804

Empty component plug housing; 10 mm wide; Type 3; 4-pole

280-804

Item no.: 286-110

Empty component plug housing; Type 9; 10 mm wide; 4-pole

286-110

Item no.: 286-111

Empty component plug housing; Type 10; 15 mm wide; 6-pole

286-111

Item no.: 286-112

Empty component plug housing; Type 11; 20 mm wide; 8-pole

286-112

Item no.: 286-113

Empty component plug housing; Type 12; 25 mm wide; 10-pole

286-113

Item no.: 286-304 Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 7 A; Red status indicator; Module width: 15 mm

286-304

Item no.: 286-304/004-000 Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 7 A; Path; Red status indicator; Module width: 15 mm

286-304

/004-000

Item no.: 286-307/004-000 Relay module; Nominal input voltage: 110 VDC; 1 changeover contact; Limiting continuous current: 7 A; Path; Red status indicator; Module width: 15 mm

286-307

/004-000

Item no.: 286-312

Relay module; Relay with 2 changeover contacts (2u)

286-312

Item no.: 286-312/004-000 Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 7 A; Path; Red status indicator; Module width: 20 mm

286-312

/004-000

Item no.: 286-316 Relay module; Nominal input voltage: 220 VDC; 2 changeover contacts; Limiting continuous current: 7 A; Red status indicator; Module width: 20 mm

286-316

Item no.: 286-320 Relay module; Nominal input voltage: 24 VDC; 1 break and 1 make contact; Limiting continuous current: 6 A; Red status indicator; Module width: 20 mm

286-320

Item no.: 286-320/004-000 Relay module; Nominal input voltage: 24 VDC; 1 break and 1 make contact; Path; Red status indicator; Module width: 20 mm

286-320

/004-000

Item no.: 286-328

280-616

01.05.2019Page /5 15
