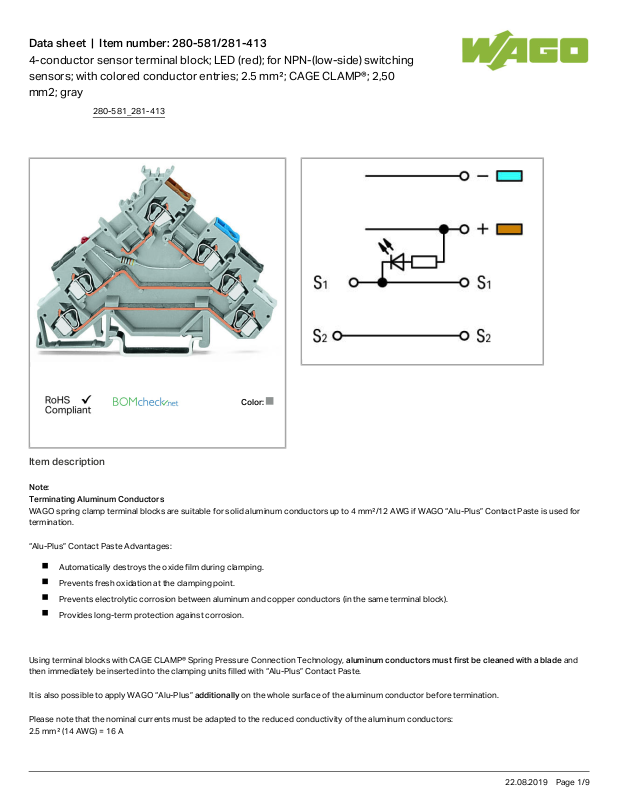

Wago 280-581/281-413 Data Sheet

Data sheet | Item number:280-581/281-413

4-conductor sensor terminal block; LED (red); for NPN-(low-side) switching
sensors; with colored conductor entries; 2.5 mm²; CAGE CLAMP®; 2,50
mm2; gray

Color:

Item description

Note:
Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:

2.5mm² (14 AWG) = 16 A

280-581_281-413

22.08.2019Page /1 9

Data sheet | Item number:280-581/281-413

4mm² (12 AWG) = 22 A

Safety information 1:

LED power consumption: 4.8mA

Data

Electrical data

Voltage type (1) DC

Nominal voltage 24 V

Ratings per IEC/EN 60664-1

Rated current 20 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Solid conductor 0.08 2.5mm²/ 28 12AWG

Fine-stranded conductor 0.08 2.5mm²/ 28 12AWG

Strip length 8 9mm/ 0.31 0.35inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 7

Total number of potentials 4

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 63.5mm/ 2.5inch

Depth 90.5mm/ 3.563inch

Mechanical data

Design angled

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.226 MJ

280-581_281-413

22.08.2019Page /2 9

Data sheet | Item number:280-581/281-413



Weight 16.1g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4050821864691

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2160584.53

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

CCA

DEKRA Certification B.V.

EN 60947 2160584.53

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

EN 60947 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

280-581_281-413

22.08.2019Page /3 9

Data sheet | Item number:280-581/281-413

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 20190731-

E45172

Compatible products

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray

2009-115

/000-007

Item no.: 2009-115/000-012

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange

2009-115

/000-012

Item no.: 2009-115/000-017

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green

2009-115

/000-017

Item no.: 2009-115/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green

2009-115

/000-023

280-581_281-413

22.08.2019Page /4 9

Data sheet | Item number:280-581/281-413

Item no.: 2009-115/000-024

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet

2009-115

/000-024

Item no.: 793-501

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

Item no.: 793-501/000-002

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-002

Item no.: 793-501/000-005

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-005

Item no.: 793-501/000-006

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-006

Item no.: 793-501/000-007

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-007

Item no.: 793-501/000-012

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-012

Item no.: 793-501/000-017

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-017

Item no.: 793-501/000-023

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-023

Item no.: 793-501/000-024

WMB marking card; as card; not stretchable; plain; snap-on type; white

793-501

/000-024

Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type; white

793-5501

Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snap­on type; yellow

793-5501

/000-002

Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red

793-5501

/000-005

Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue

793-5501

/000-006

Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray

793-5501

/000-007

280-581_281-413

22.08.2019Page /5 9

Data sheet | Item number:280-581/281-413

Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange

793-5501

/000-012

Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green

793-5501

/000-017

Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green

793-5501

/000-023

Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet

793-5501

/000-024

Jumper

Item no.: 210-103

Wire commoning chain; insulated; 50 connections; black

210-103

Item no.: 210-123

Wire commoning chain; insulated; 50 connections

210-123

Item no.: 249-123

Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²

249-123

Item no.: 249-125

Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²

249-125

Item no.: 249-126

Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²

249-126

Item no.: 249-127

Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²

249-127

Item no.: 280-402

Adjacent jumper; insulated; IN = IN terminal block; gray

280-402

Item no.: 280-482

Comb-style jumper bar; insulated; 2-way; IN = IN terminal block; gray

280-482

Item no.: 280-483

Comb-style jumper bar; insulated; 3-way; IN = IN terminal block; gray

280-483

Item no.: 280-484

Comb-style jumper bar; insulated; 4-way; IN = IN terminal block; gray

280-484

Item no.: 280-485

Comb-style jumper bar; insulated; 5-way; IN = IN terminal block; gray

280-485

Item no.: 280-490

Comb-style jumper bar; insulated; 10-way; IN = IN terminal block; gray

280-490

Item no.: 280-492

Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block; gray

280-492

Item no.: 709-110

Wire commoning chain; insulated; 4 connections; 3 x 110 mm; black

709-110

280-581_281-413

22.08.2019Page /6 9

Data sheet | Item number:280-581/281-413

Item no.: 709-111

Wire commoning chain; insulated; 3 connections; 2 x 120 mm; black

709-111

Item no.: 709-112

Wire commoning chain; insulated; 3 connections; 2 x 170 mm; black

709-112

Item no.: 780-452

Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-452

Item no.: 780-453

Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-453

Item no.: 780-454

Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-454

Item no.: 780-455

Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-455

Item no.: 780-456

Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-456

Item no.: 780-457

Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-457

Item no.: 780-458

Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs; gray

780-458

Protective Warning Marker

Item no.: 280-415

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow

280-415

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-104

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-104

Item no.: 216-201

Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white

216-201

Item no.: 216-202

Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray

216-202

Item no.: 216-203

Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red

216-203

Item no.: 216-204

Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; black

216-204

Item no.: 216-301

Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated; yellow

216-301

280-581_281-413

22.08.2019Page /7 9

Data sheet | Item number:280-581/281-413

Item no.: 216-302

Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated; green

216-302

tools

Item no.: 210-657

Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft; short

210-657

Item no.: 210-658

Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft; angled; short

210-658

Item no.: 210-720

Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft

210-720

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper­colored

210-198

Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

assembling

Item no.: 709-154
Cover; Type 2; suitable for cover carrier, type 2; 1 m long; transparent

709-154

End plate

Item no.: 280-320
End and intermediate plate; 1 mm thick; for quadruple-deck terminal blocks; gray

280-320

280-581_281-413

22.08.2019Page /8 9

Data sheet | Item number:280-581/281-413

Item no.: 280-323
End and intermediate plate; 1 mm thick; for quadruple-deck terminal blocks; orange

280-323

Insulation stop

Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip; white

280-470

Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray

280-471

Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

280-472

Downloads

Documentation

Bid Text

280-581/281-413 doc

25.6 kB

Download

Additional Information

Technical explanations Apr 3, 2019 pdf

2.1 MB

Download

CAD/CAE - Smart Data

EPLAN

EPLAN Data Portal Download

WSCAD

WSCAD Universe Download



280-581_281-413

Subject to changes.

22.08.2019Page /9 9
