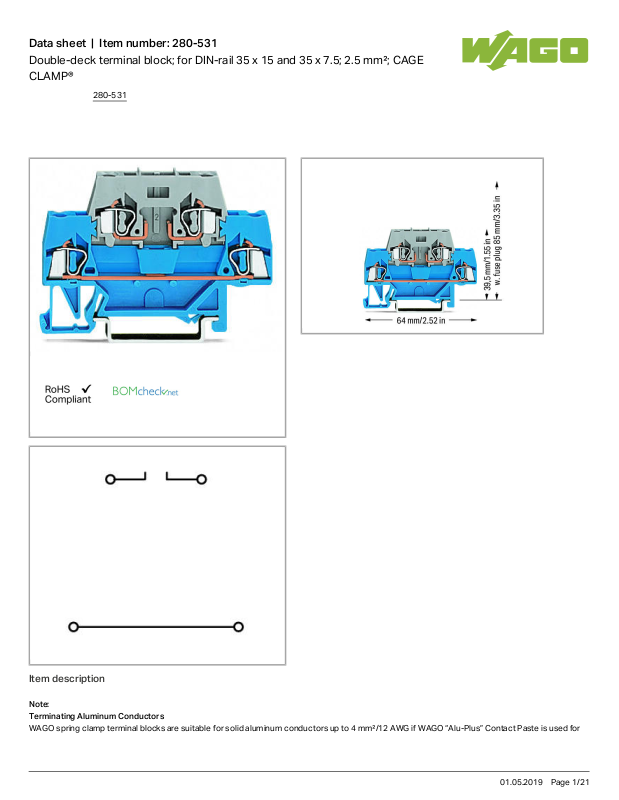

Wago 280-531 Data Sheet

Data sheet | Item number:280-531
Double-deck terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
280-531
01.05.2019Page /1 21
Data sheet | Item number:280-531
termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 10 A
Rated current (2) 20A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
280-531
01.05.2019Page /2 21
Data sheet | Item number:280-531

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 39.5mm/ 1.555inch
Depth 64mm/ 2.52inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level without marking level

Material Data

Color blue/gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.144 MJ
Weight 9.28g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821293675
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
280-531
01.05.2019Page /3 21
Data sheet | Item number:280-531
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

check
Item no.: 249-141
L-type test plug module; modular; with spring-loaded contact pin; Center module
249-141
tools
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
280-531
01.05.2019Page /4 21
Data sheet | Item number:280-531
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
General accessories
Item no.: 231-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 2-pole
231-162
/003-000
Item no.: 231-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 3-pole
231-163
/003-000
Item no.: 231-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 4-pole
231-164
/003-000
Item no.: 231-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 5-pole
231-165
/003-000
Item no.: 231-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 6-pole
231-166
/003-000
Item no.: 231-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 7-pole
231-167
/003-000
Item no.: 231-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 8-pole
231-168
/003-000
Item no.: 231-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 9-pole
231-169
/003-000
Item no.: 231-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole
231-170
/003-000
Item no.: 231-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 11-pole
231-171
/003-000
Item no.: 231-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 12-pole
231-172
/003-000
Item no.: 231-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
231-176
/003-000
Item no.: 231-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole
231-180
/003-000
280-531
01.05.2019Page /5 21
Data sheet | Item number:280-531
Item no.: 231-668
Lockout caps; for covering unused clamping units
231-668
Item no.: 231-669
Lockout caps; for covering unused clamping units
231-669
Item no.: 281-511 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; without blown fuse indication; 6 mm wide
281-511
Item no.: 281-512 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with port for LED; 6 mm wide
281-512
Item no.: 281-512/281-417 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse indication by neon lamp; 230 V; 6 mm wide
281-512
/281-417
Item no.: 281-512/281-418 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse indication by neon lamp; 120 V; 6 mm wide
281-512
/281-418
Item no.: 281-512/281-501 Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with LED indicator; 24 V AC/DC; 6 mm wide
281-512
/281-501
Item no.: 721-162/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 2-pole
721-162
/003-000
Item no.: 721-163/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 3-pole
721-163
/003-000
Item no.: 721-164/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 4-pole
721-164
/003-000
Item no.: 721-165/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 5-pole
721-165
/003-000
Item no.: 721-166/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 6-pole
721-166
/003-000
Item no.: 721-167/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 7-pole
721-167
/003-000
Item no.: 721-168/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 8-pole
721-168
/003-000
Item no.: 721-169/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 9-pole
721-169
/003-000
Item no.: 721-170/003-000
280-531
01.05.2019Page /6 21
Data sheet | Item number:280-531
Item no.: 721-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 10-pole
721-170
/003-000
Item no.: 721-171/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 11-pole
721-171
/003-000
Item no.: 721-172/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 12-pole
721-172
/003-000
Item no.: 721-173/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 13-pole
721-173
/003-000
Item no.: 721-174/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 14-pole
721-174
/003-000
Item no.: 721-175/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 15-pole
721-175
/003-000
Item no.: 721-176/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 16-pole
721-176
/003-000
Item no.: 721-180/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 20-pole
721-180
/003-000
End plate
Item no.: 280-340
End and intermediate plate; 2.5 mm thick
280-340
Item no.: 280-341
End and intermediate plate; 2.5 mm thick
280-341
Item no.: 280-366
Intermediate plate; 1.1 mm thick
280-366
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-154
Cover; Type 2; suitable for cover carrier, type 2; 1 m long
709-154
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
280-531
01.05.2019Page /7 21
