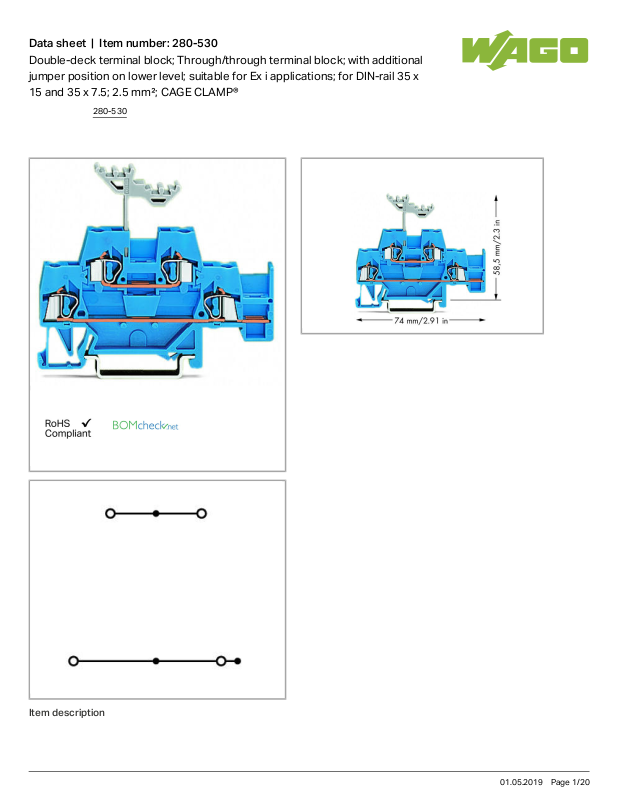

Wago 280-530 Data Sheet

Data sheet | Item number:280-530
Double-deck terminal block; Through/through terminal block; with additional jumper position on lower level; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®

Item description

280-530
01.05.2019Page /1 20
Data sheet | Item number:280-530
Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 20 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
280-530
01.05.2019Page /2 20
Data sheet | Item number:280-530
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 58.5mm/ 2.303inch
Depth 74mm/ 2.913inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color blue/blue
Insulating material Polyamide 66 (PA 66)
Fire load 0.178 MJ
Weight 10.461g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821293651
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
280-530
01.05.2019Page /3 20
Data sheet | Item number:280-530
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

tools
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
280-530
01.05.2019Page /4 20
Data sheet | Item number:280-530
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
check
Item no.: 249-141
L-type test plug module; modular; with spring-loaded contact pin; Center module
249-141
General accessories
Item no.: 231-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 2-pole
231-162
/003-000
Item no.: 231-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 3-pole
231-163
/003-000
Item no.: 231-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 4-pole
231-164
/003-000
Item no.: 231-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 5-pole
231-165
/003-000
Item no.: 231-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 6-pole
231-166
/003-000
Item no.: 231-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 7-pole
231-167
/003-000
Item no.: 231-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 8-pole
231-168
/003-000
Item no.: 231-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 9-pole
231-169
/003-000
Item no.: 231-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole
231-170
/003-000
Item no.: 231-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 11-pole
231-171
/003-000
Item no.: 231-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 12-pole
231-172
/003-000
280-530
01.05.2019Page /5 20
Data sheet | Item number:280-530
Item no.: 231-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
231-176
/003-000
Item no.: 231-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole
231-180
/003-000
Item no.: 231-668
Lockout caps; for covering unused clamping units
231-668
Item no.: 231-669
Lockout caps; for covering unused clamping units
231-669
Item no.: 721-162/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 2-pole
721-162
/003-000
Item no.: 721-163/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 3-pole
721-163
/003-000
Item no.: 721-164/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 4-pole
721-164
/003-000
Item no.: 721-165/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 5-pole
721-165
/003-000
Item no.: 721-166/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 6-pole
721-166
/003-000
Item no.: 721-167/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 7-pole
721-167
/003-000
Item no.: 721-168/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 8-pole
721-168
/003-000
Item no.: 721-169/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 9-pole
721-169
/003-000
Item no.: 721-170/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 10-pole
721-170
/003-000
Item no.: 721-171/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 11-pole
721-171
/003-000
Item no.: 721-172/003-000 Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against mismating; Pin spacing 5 mm; 12-pole
721-172
/003-000
280-530
01.05.2019Page /6 20
